Connectors¶
For LiPo Battery¶
PH CONNECTOR
2.0 mm pitch/Wire-to-Board connectors/Crimp style and Mating style

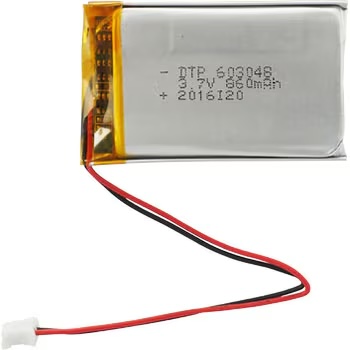

 LiPo 860mAh |
 |
 |
 |
 |
|
|---|---|---|---|---|---|

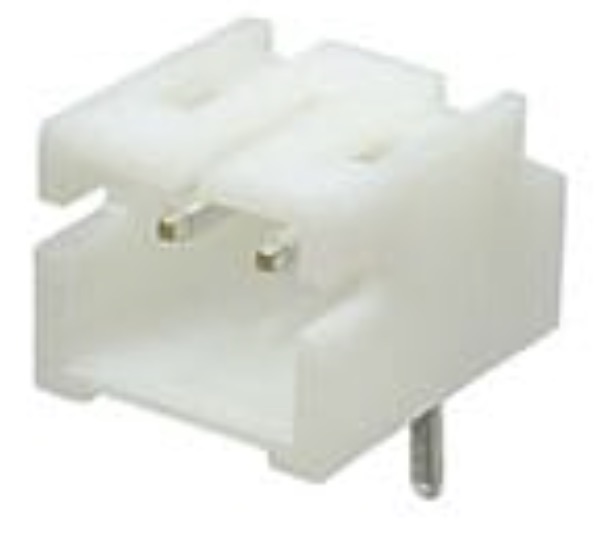

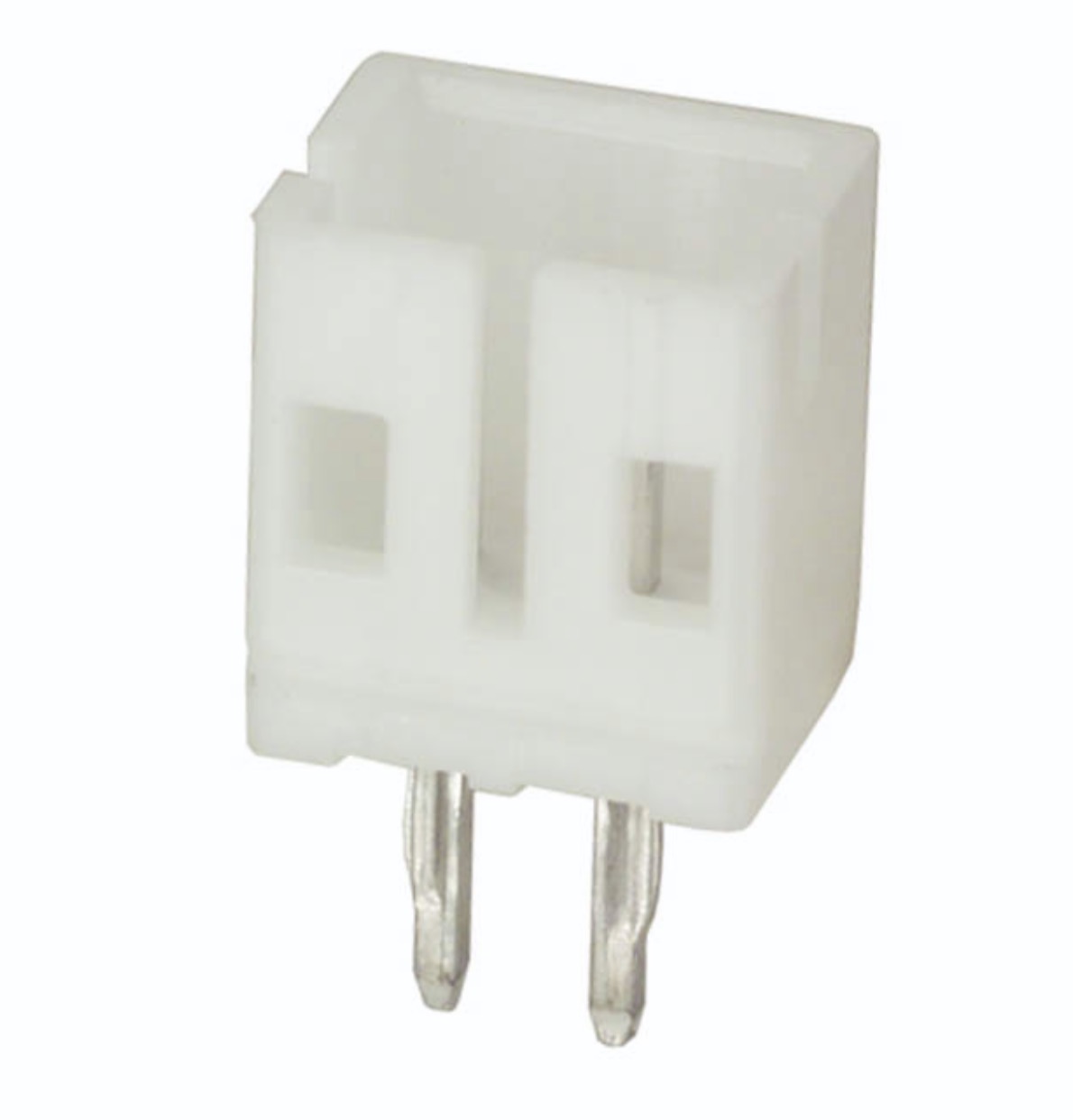

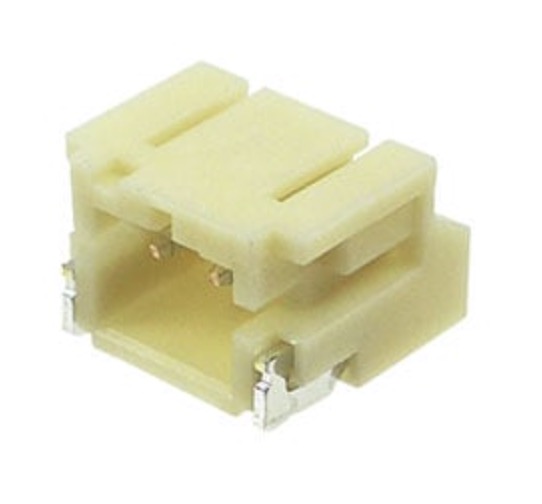

| Model No. | PHR-2 | B2B-PH-K-S | S2B-PH-K-S | B2B-PH-SM4-TB | S2B-PH-SM4-TB |
| TH/SMD | TH | TH | SMD | SMD | |
| Type | straight | side-entry | straight | side-entry | |
| DigiKey | Link | Link | Link | Link | |
| Akizuki | Link | Link | - | Link* | |
| Monotaro | Link | Link | Link | Link |

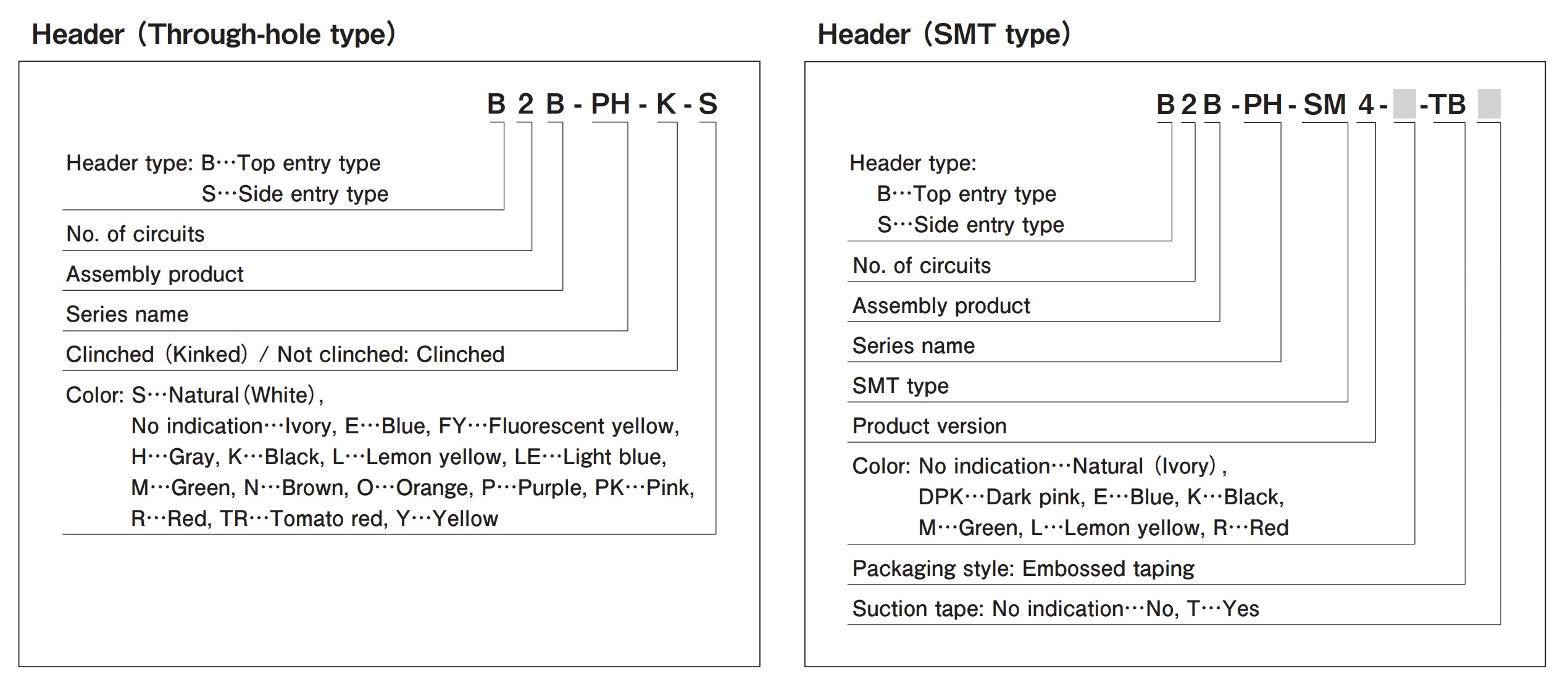

Note
For Stepper Motor¶
XH CONNECTOR
2.5 mm pitch/Wire-to-Board connectors/Crimp style and Mating style
 17HS4401 |
 |
 |
|
|---|---|---|---|

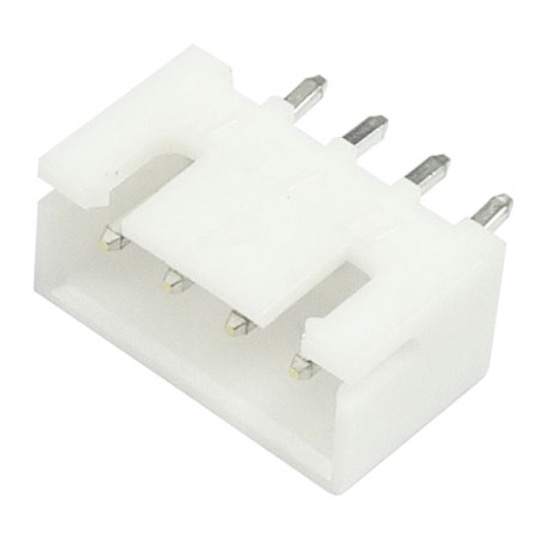

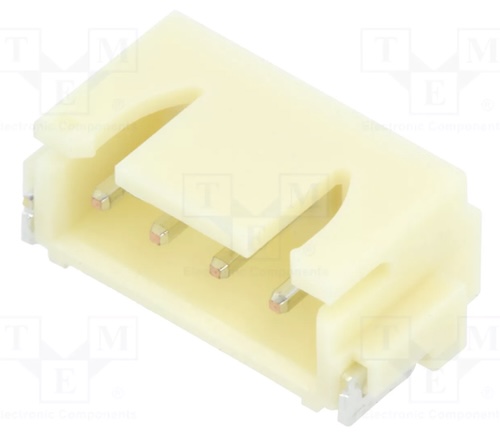

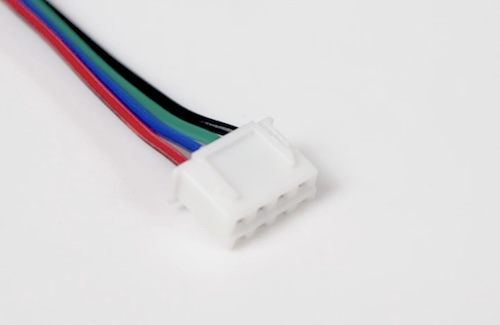

| Model No. | XHP-4 | B4B-XH-A | S4B-XH-SM4-TB |
| TH/SMD | TH | SMD | |
| Digikey | Link | Link | |
| Monotaro | Link B4B-XH-AM with Boss |
Link* | |
| Akizuki | Link | - |
Note
For Pinheader/Pinsocket¶

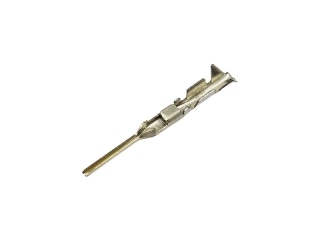

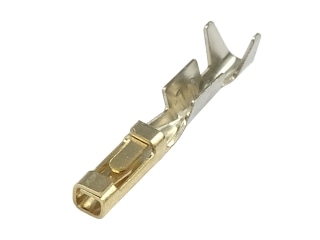

QI connecter
 |
 |
|
|---|---|---|
| Akizuki | Link | Link |
| Monotaro | Link | Link |
| Ali | Link | Link |
| Amazon | set |
