13. Molding & Casting

This week’s group assignment was to;
- Review the safety data sheets for each of our molding and casting materials - Make and compare test casts with each of them. - * extra credit: try other molding and casting processes
- Compare printing vs milling molds

Have you answered these questions?
- Documented how you designed and created your 3D mold, including machine settings
- Ensured our mold has smooth surface finish, that does not show the production process (by postprocessing if necessary)
- Shown how you safely made your mold and cast the parts
- Described problems and how you fixed them

Test Casting

Materials

These were the materials we tried;

Material Ferris File-A-Wax Blue MOLD STAR 16 FAST Smooth-Cast 300 Smooth-Cast 325 SORTA-CLEAR 37 Ecoflex 30
Pot Life 6m 3m 2.5m 25m 45m
Cure Time 30m 10m 10m 4h 4h
Shore 16A 70D 72D 37A 00-30
Characteristics Food Safe
Process Memo
SDS SDS SDS/TB SDS/TB SDS/TB SDS/TB SDS/TB
Skin Corrosion/Irritation Burns if molten N/A 2 2 N/A N/A
Skin Sensitization N/A N/A 1 2 N/A N/A
Eye Damage & Irritation N/A N/A 2B 2 AN/A N/A
Toxicity Inhallation N/A N/A 4 14
Respiratory Sensitization N/A N/A 1 1 N/A N/A
Carcinogenic N/A N/A 2 2 N/A N/A
Target Organ Toxicity (single exposure) N/A N/A 3 3 N/A N/A
Target organ toxicity (repeated exposure) N/A N/A 2 2 N/A N/A
Other - N/A Harmful to aqutic animals N/A N/A

Safety Precautions

How to Read SDS, for beginners

PPE: Wear Apron, gloves, glasses
Environment: Large, well-ventilated room
Practices: Wash hands well with soap in case of contact with materials

Test Casting Workflow

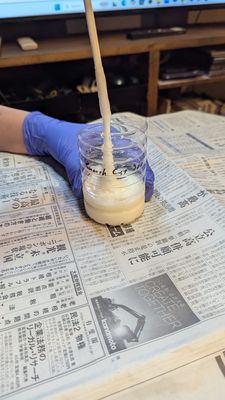

(1) Smooth Cast300

  • Mixing: Easy to mix, but need to care about not having bubbles Needed to be mixed soft and slowly.

  • Cure Time: Suddenly got warm and became A bit late to take out a chopstick and made shape like soft cream.

alt text alt text alt text alt text alt text

(2) Smooth Cast325

alt text alt text alt text alt text alt text alt text

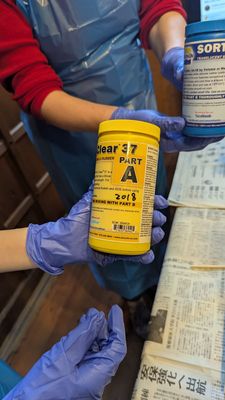

(3) Sorta-Clear37

alt text alt text alt text alt text alt text

Bad mold
alt text alt text

(4) Mold Star16 Fast

alt text alt text

(5) Eco Flex

alt text alt text alt text alt text alt text

Result and Reflections

alt text

Have you answered these questions?

  • Linked to the group assignment page and reflected on your individual page what you have learned
  • Reviewed the safety data sheets for each of your molding and casting materials, then made and compared test casts with each of them
  • Documented how you designed and created your 3D mold, including machine settings Ensured your mold has smooth surface finish, that does not show the production process (by postprocessing if necessary) Shown how you safely made your mold and cast the parts
  • Described problems and how you fixed them
