Project name: Metal Man

Slide and Video

slide

Youtube Video

Documentation

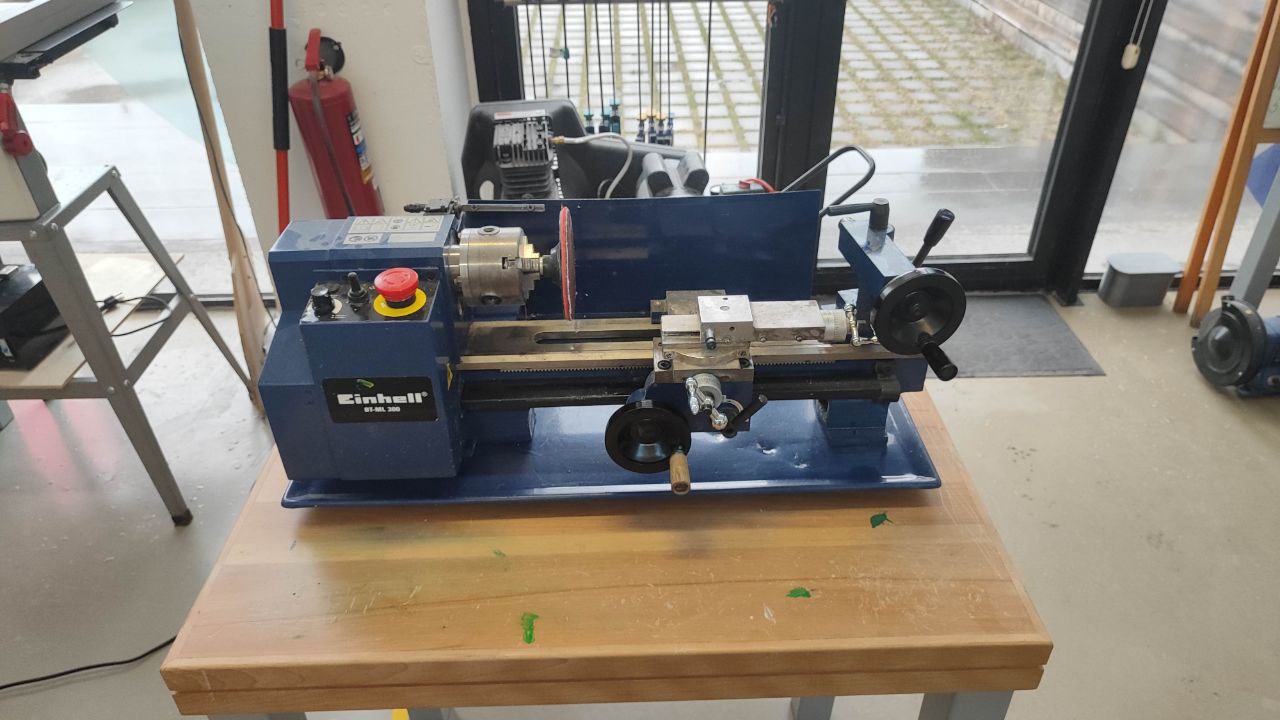

Disassembling the Lathe

alt text

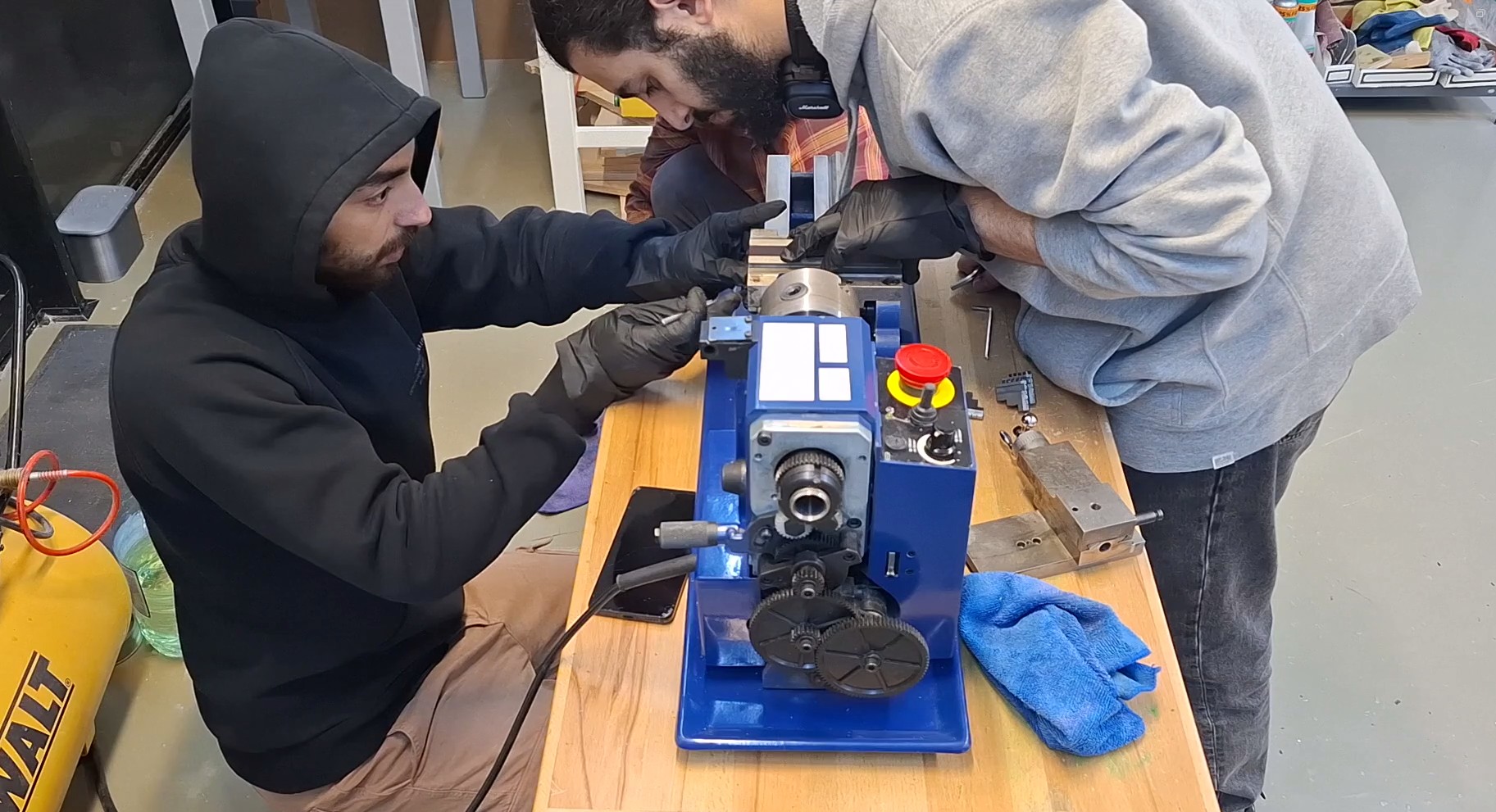

We began by disassembling the machine and cleaning all the parts. It hadn’t been used in a long time and was covered with dust and grease.

alt text

Cleaning Parts.

alt text

Designing the Parts

We initially considered modeling the machine from scratch, but luckily found a complete 3D model on grabcad.com.

alt text

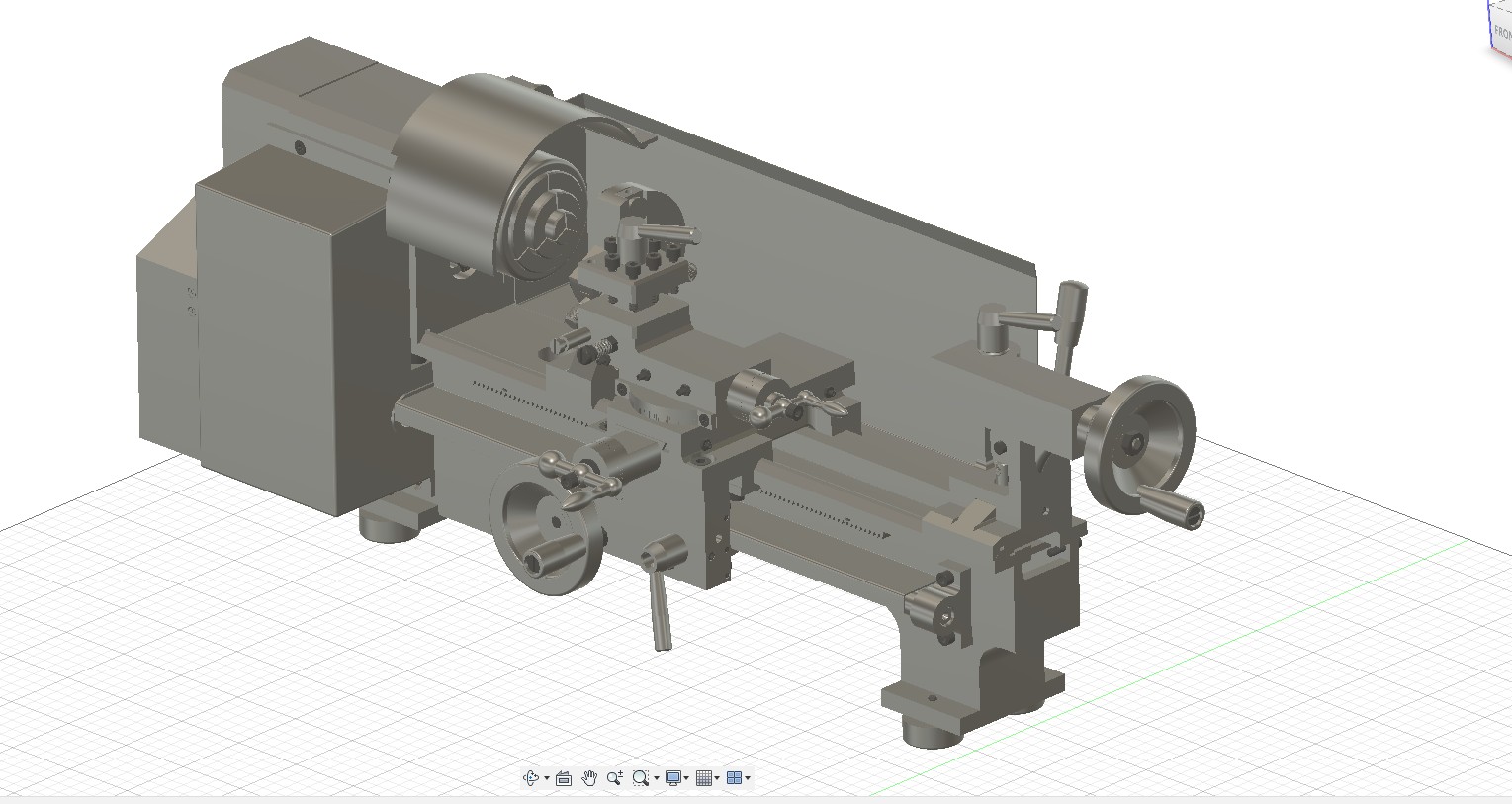

We opened the file in Fusion and compared it to the real machine to verify the accuracy.

alt text

The model matched well, so we imported it and began making necessary changes.

alt text

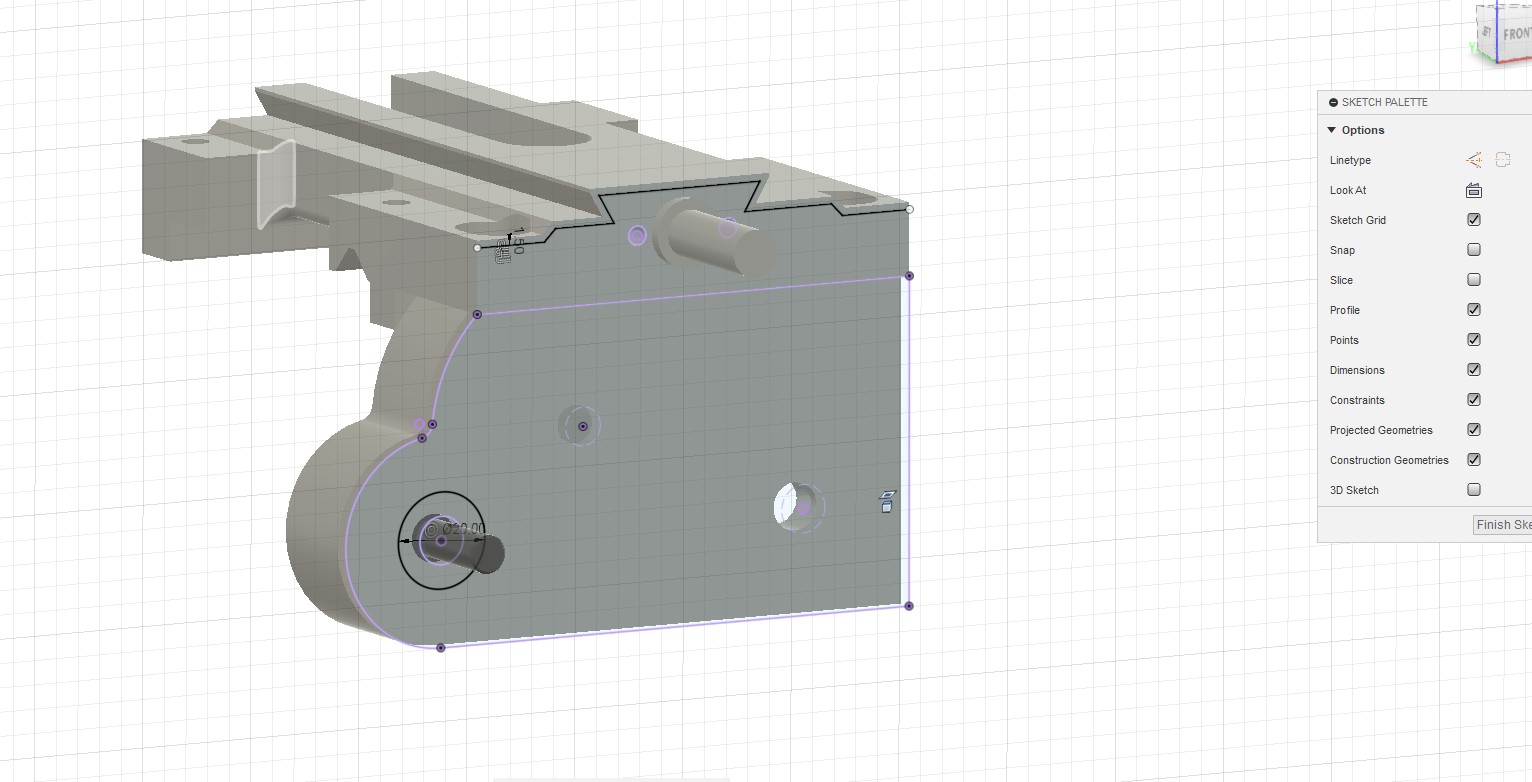

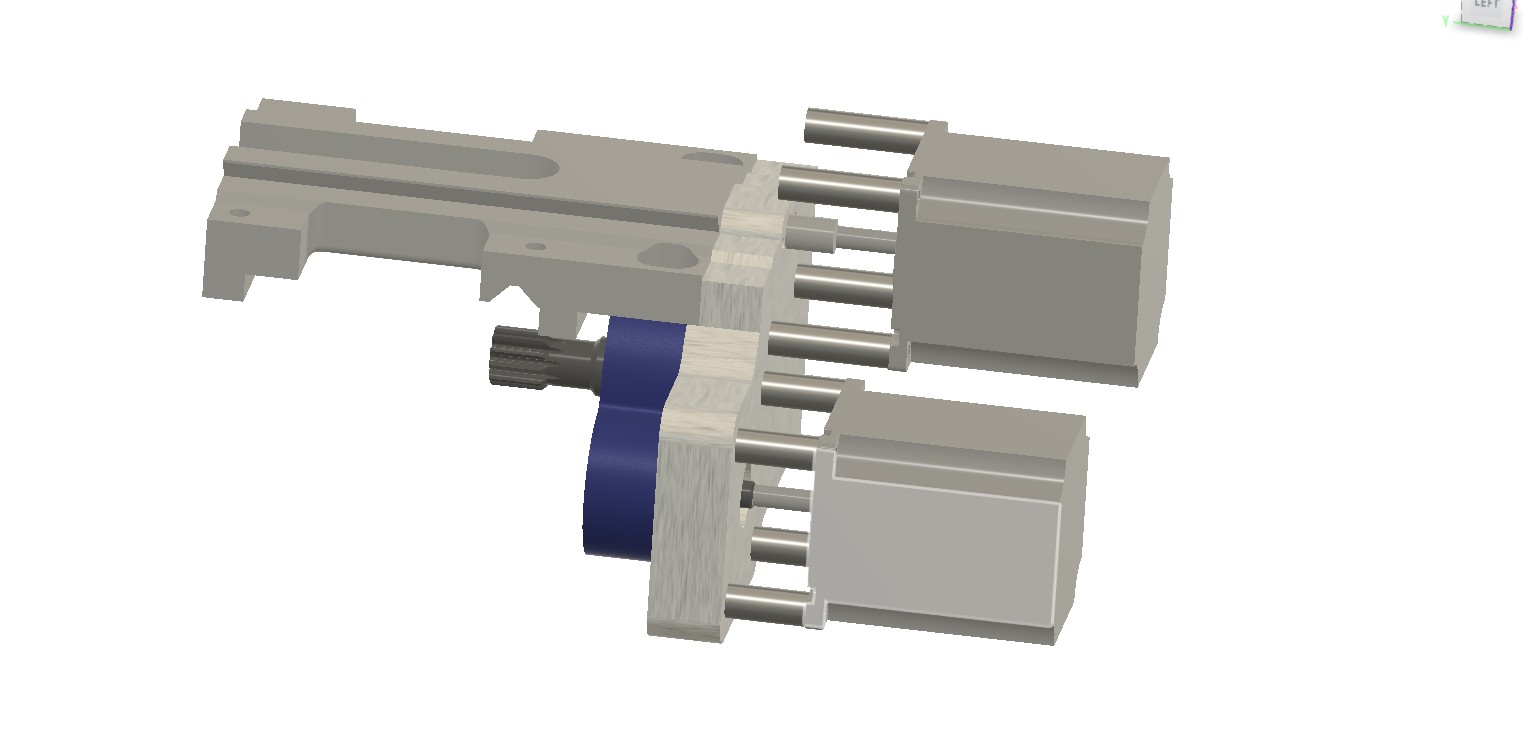

We designed an adapter to mount two stepper motors.

alt text

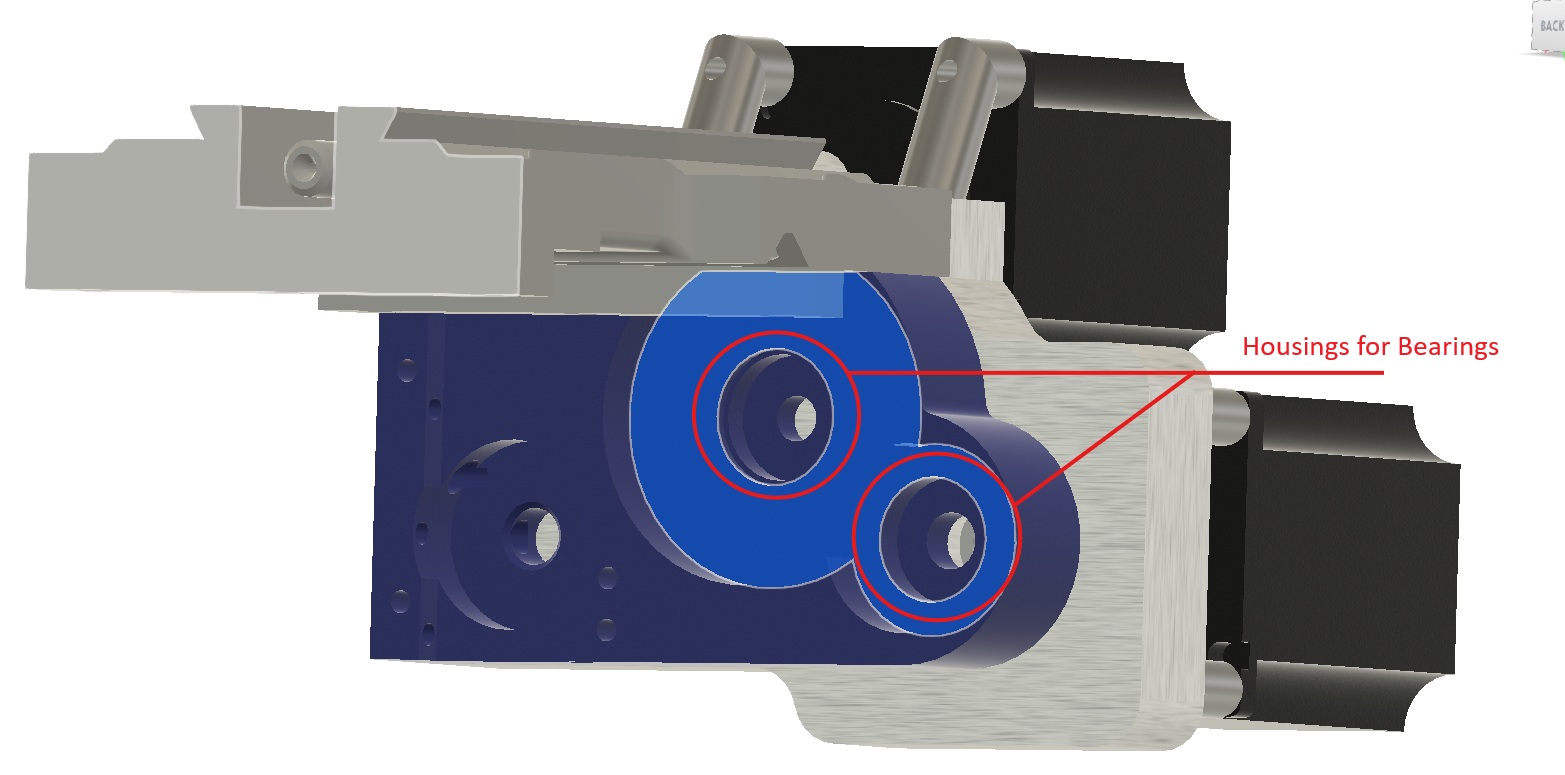

To reduce friction, we added a bearing housing, which we later milled.

alt text

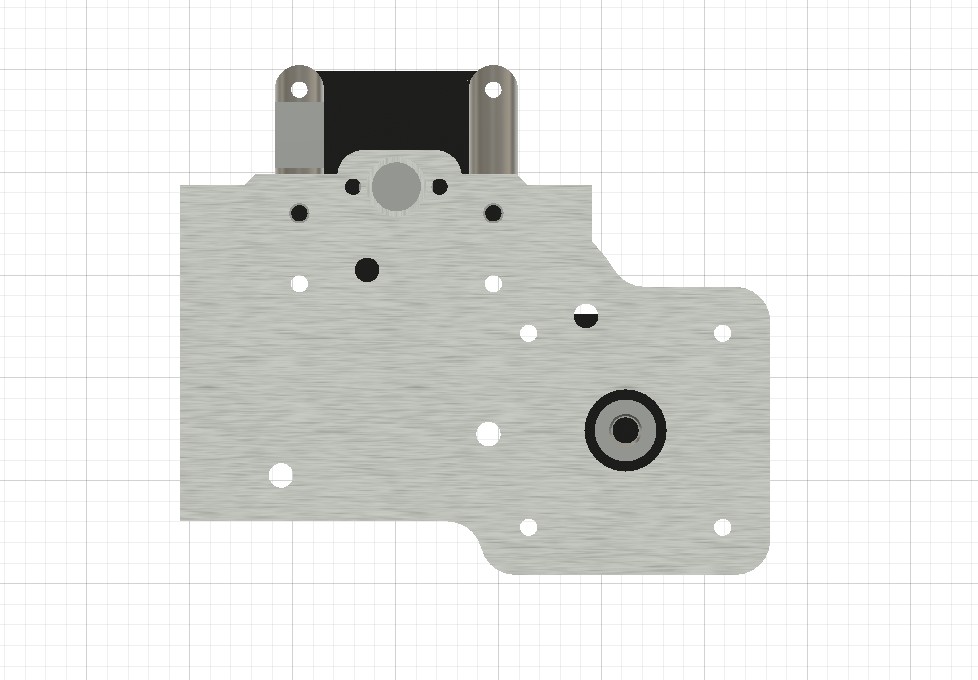

Part to be milled with the CNC machine:

alt text

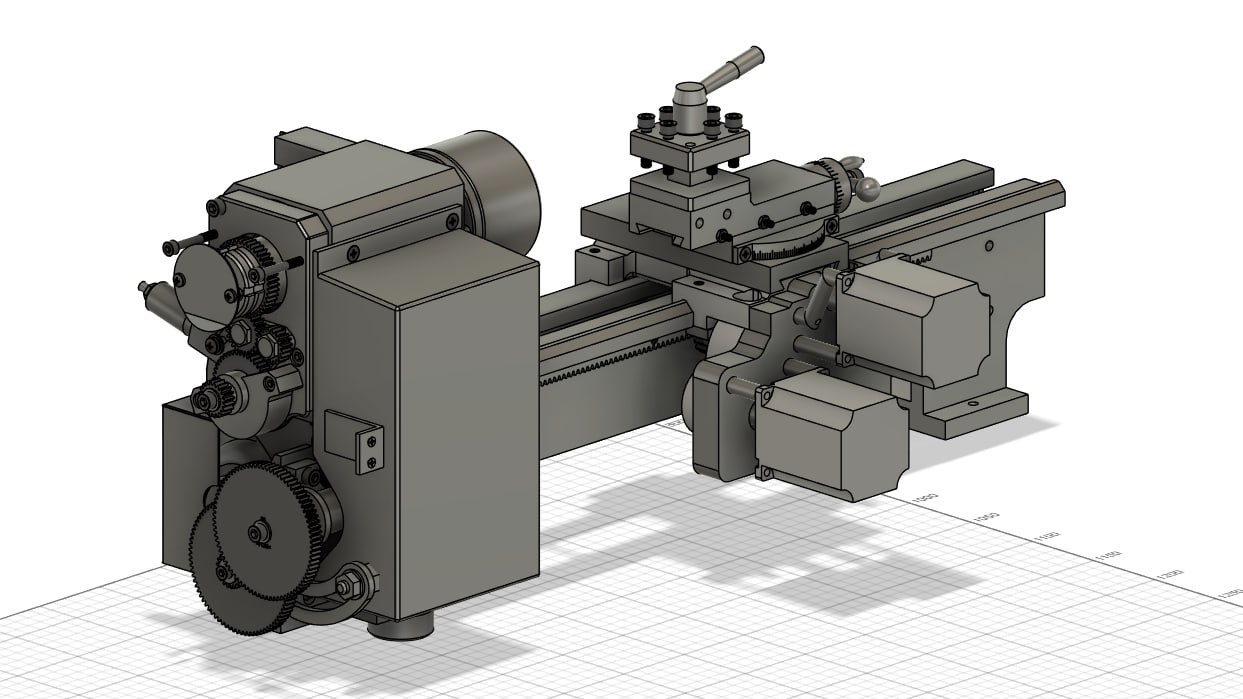

Fully assembled result:

alt text

Prototyping the Mount

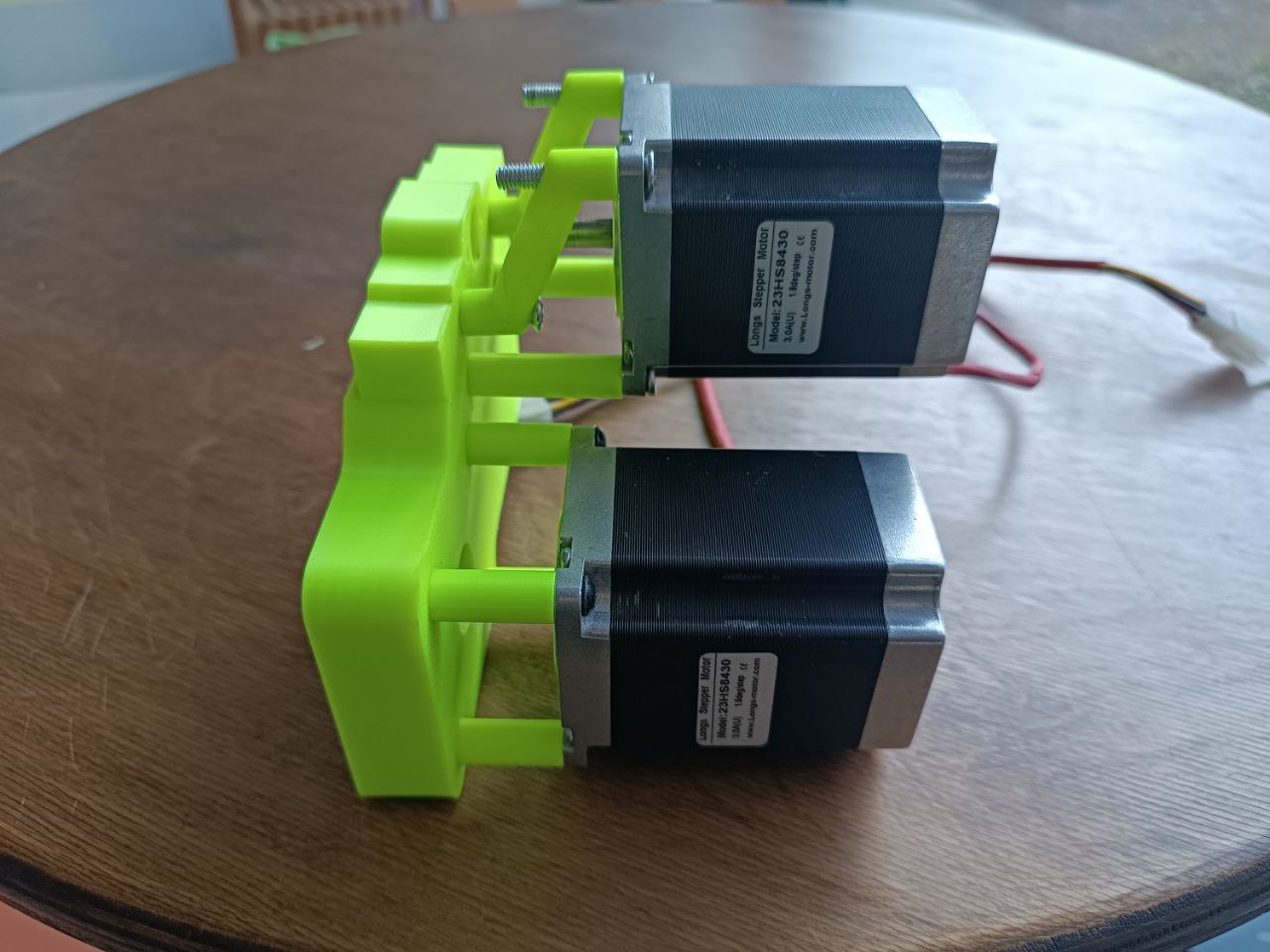

Before machining in aluminum, we 3D printed a prototype.

alt text

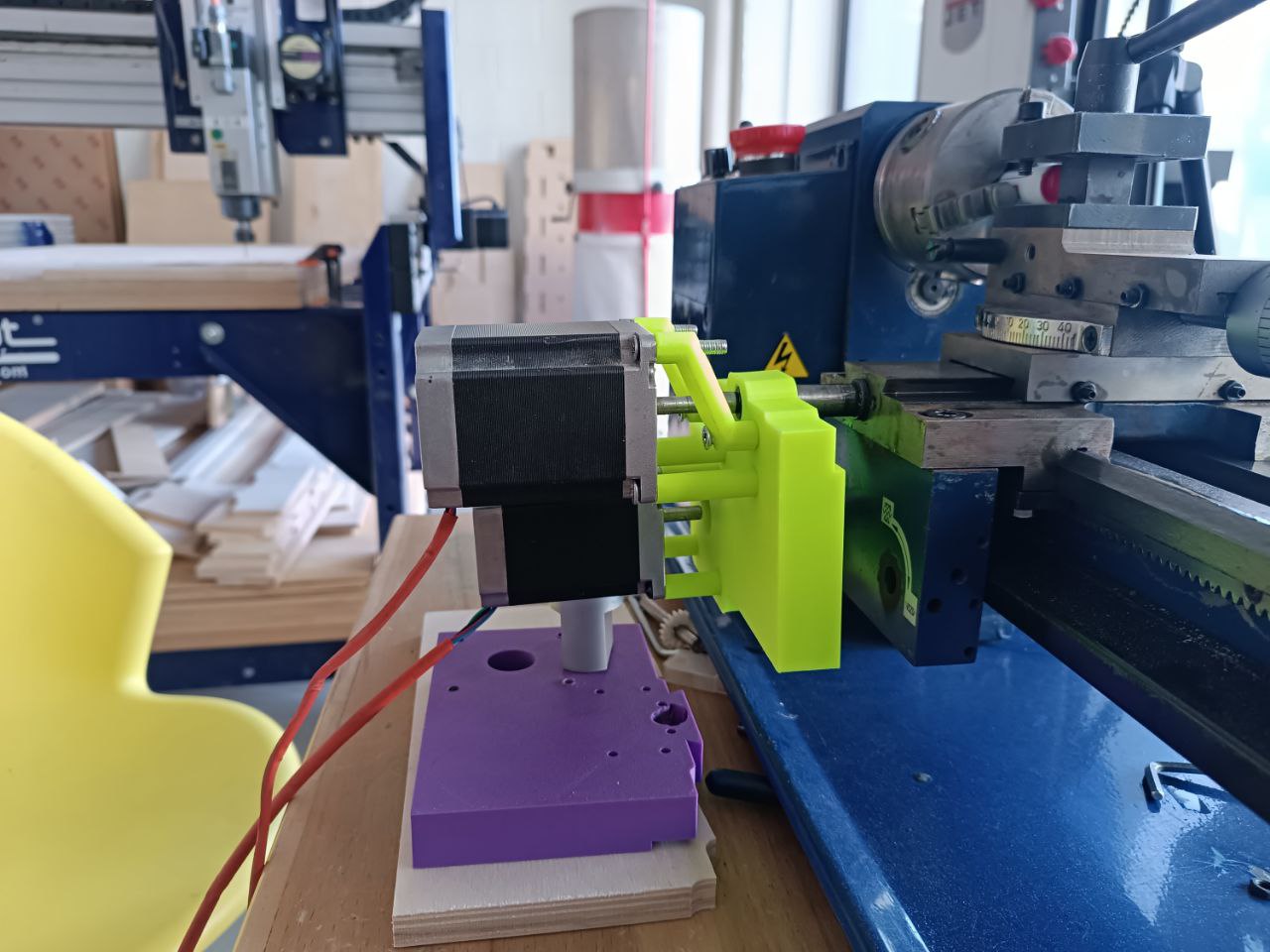

It fit perfectly on the machine.

alt text

G-code Generation

We generated G-code in Fusion 360, using the 2D Bore toolpath under the Milling section to enlarge circular holes with precision. This allowed us to define parameters like diameter, depth, and feed rate.

Detailed steps can be found here.

Running a simulation helped us verify the toolpath and catch potential issues early.

Milling Process

We used this beautiful CNC machine to mill the aluminum part:

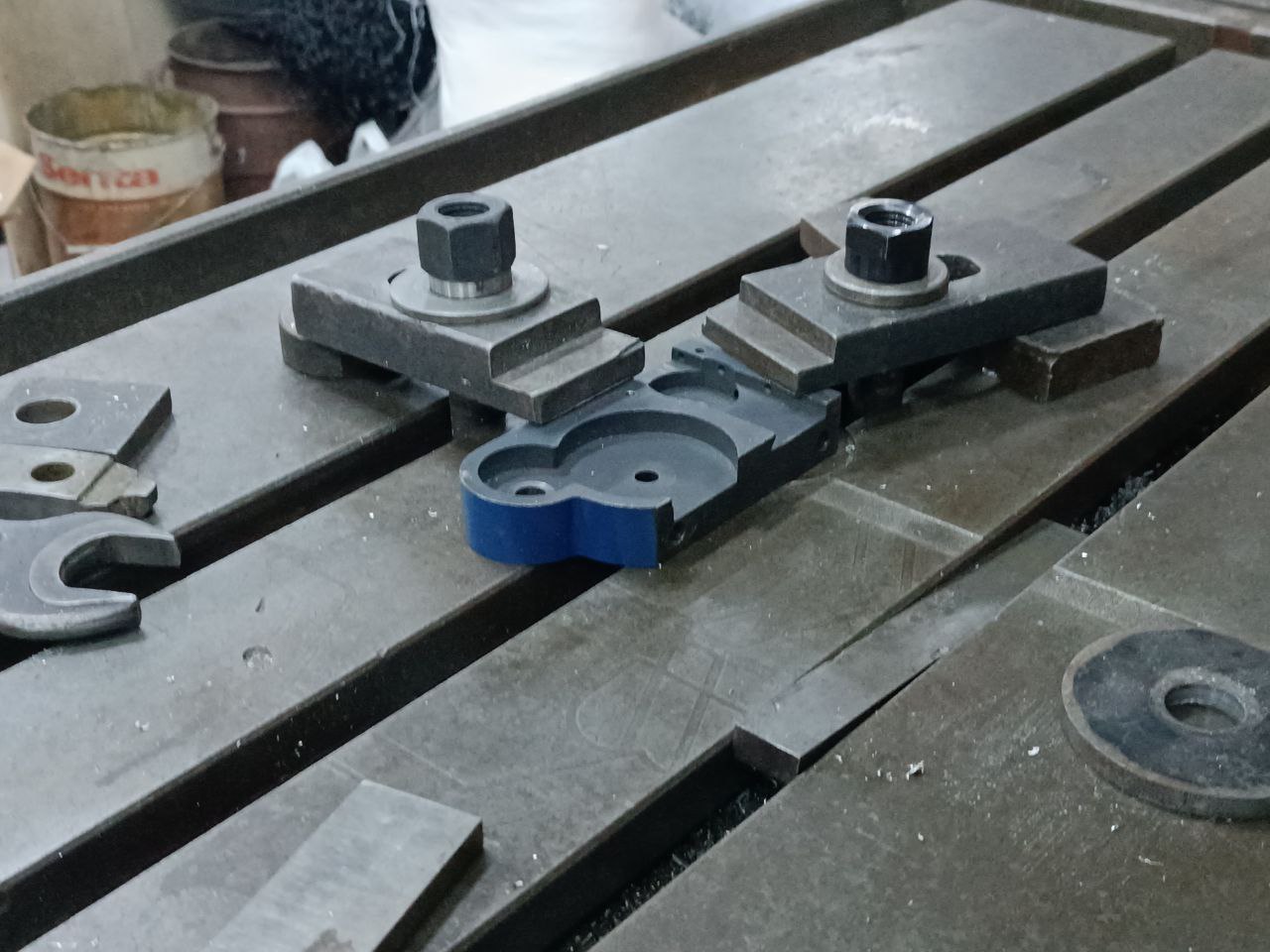

After securing the material, we ensured the spindle wouldn’t hit the clamps.

We set the zero point using a dial indicator to align with the center of a hole. Although the hole wasn’t perfectly round, we minimized deviation enough to proceed.

The Z-axis zero was set at the surface. With everything in place, we loaded the G-code and began milling.

Metal milling requires continuous lubrication and cooling. Sprayers near the cutter help with this.

Here’s the improved result after installing the bearings and aligning the gears.

Adapter for Stepper Motors

We chose 25 mm thick aluminum alloy for the adapter, as it’s strong and easy to machine.

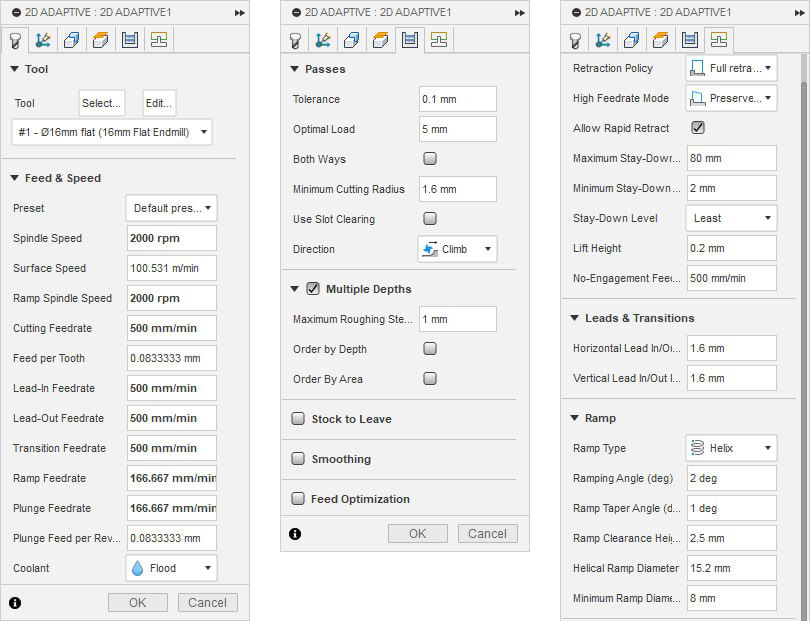

  • 2D Adaptive — for fast roughing.

  • Drill — for creating mounting holes. Bore — for reaming pre-drilled holes.

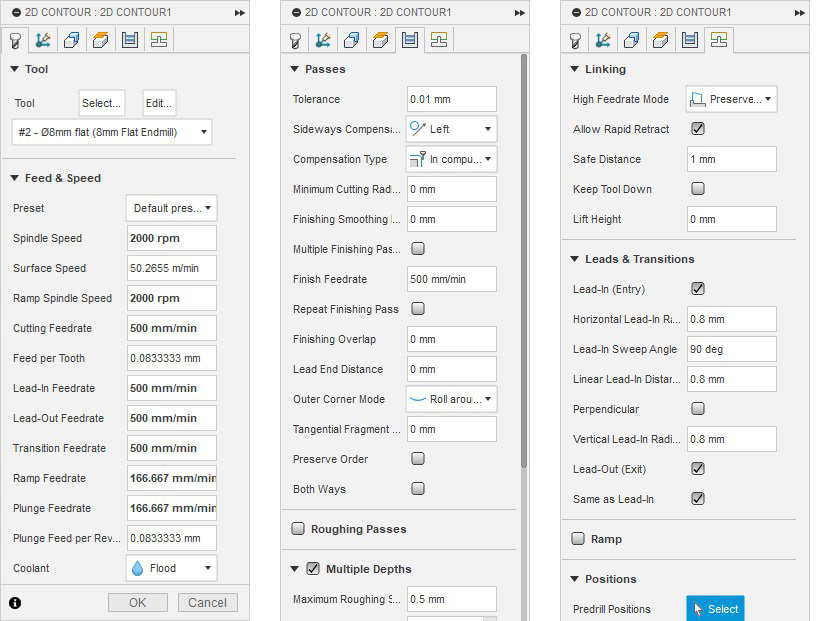

  • 2D Contour — for finishing edges and contours.

Simulation helped us visualize the full process:

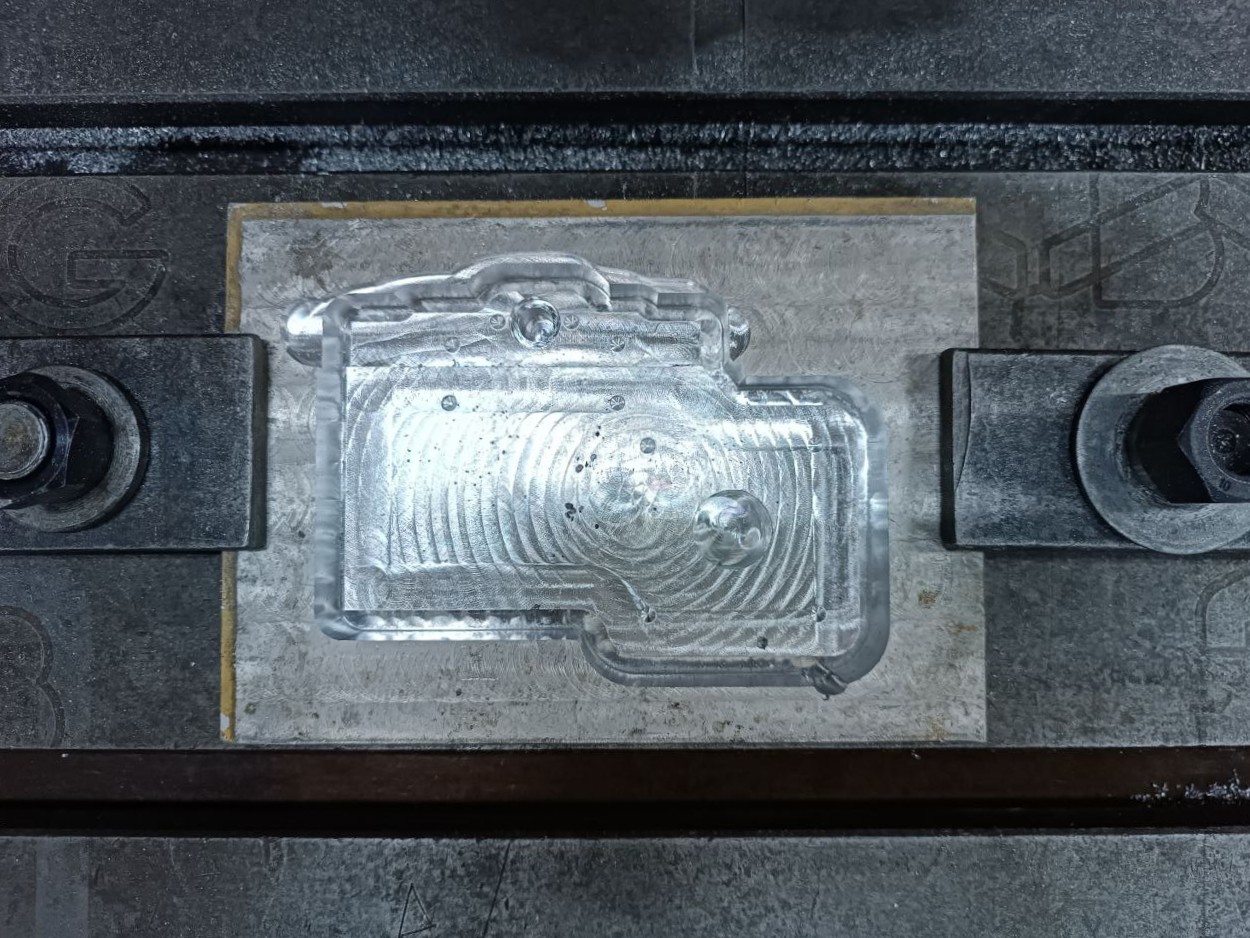

To avoid issues, we left 1 mm of material on the backside during the first pass. After flipping and re-clamping the part, we removed the rest.

This video shows the milling process of the adapter:

Electronics

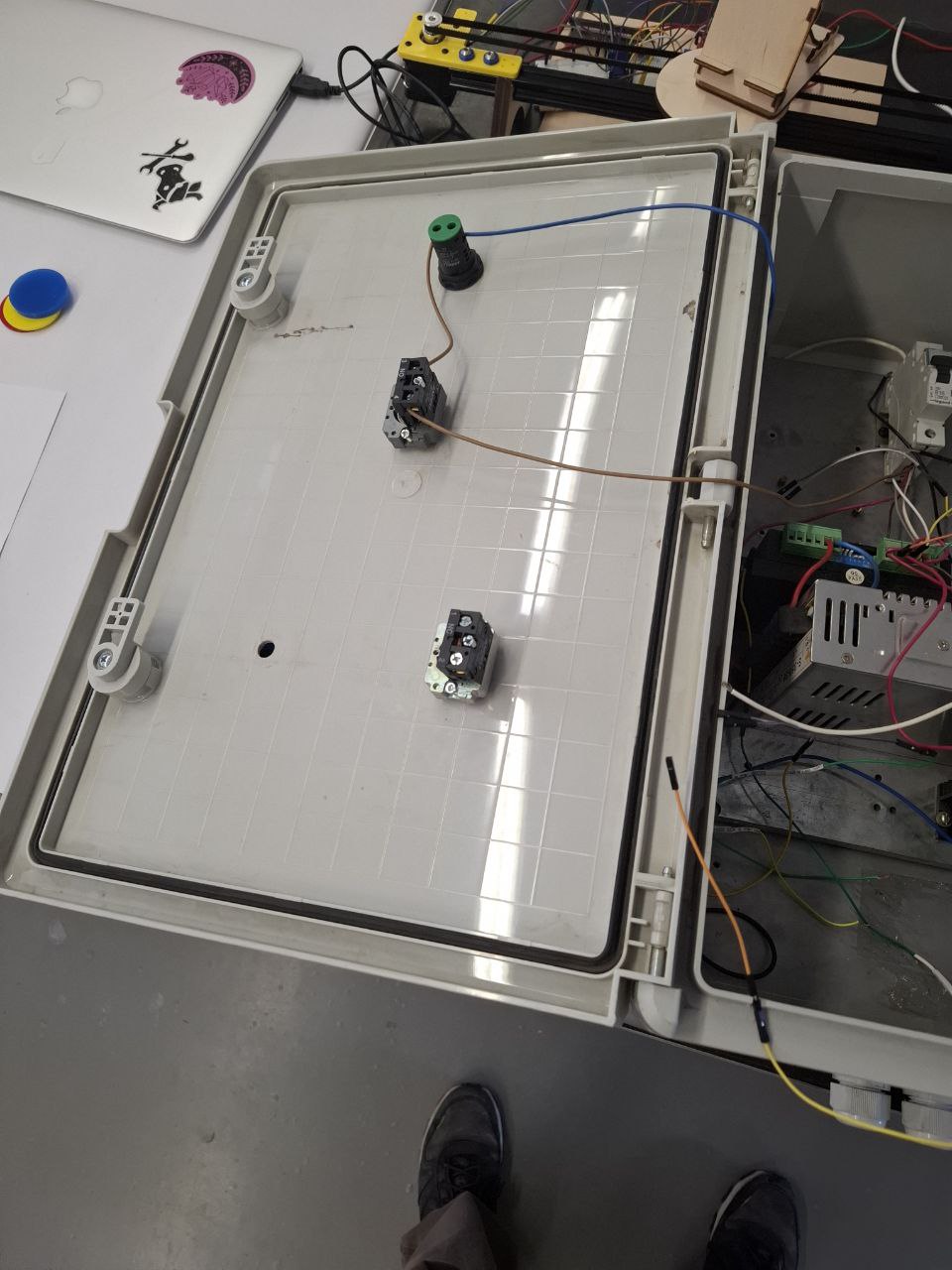

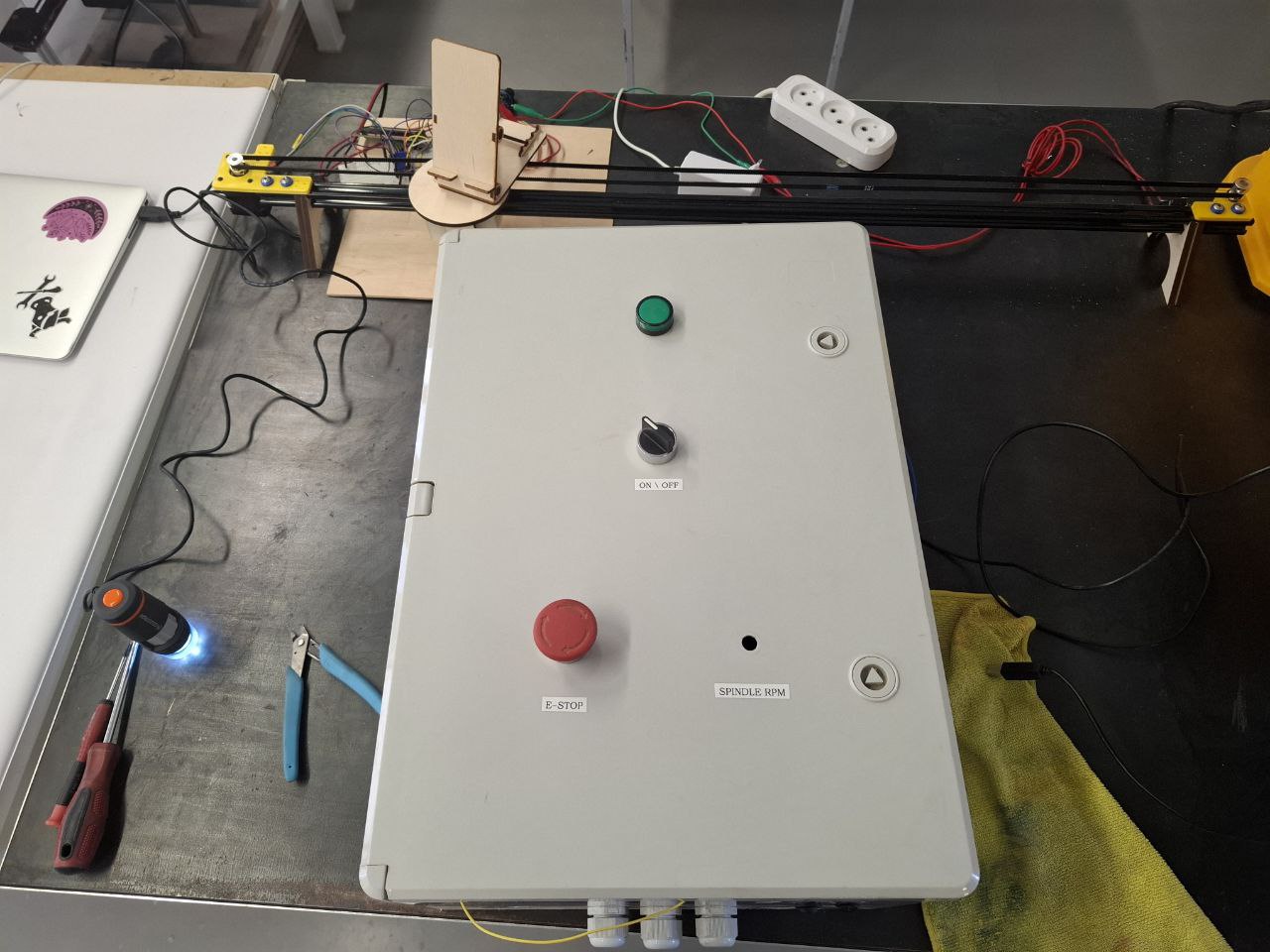

We repurposed an old CNC control box.

It includes safety switches, a current limiter, and an LED power indicator.

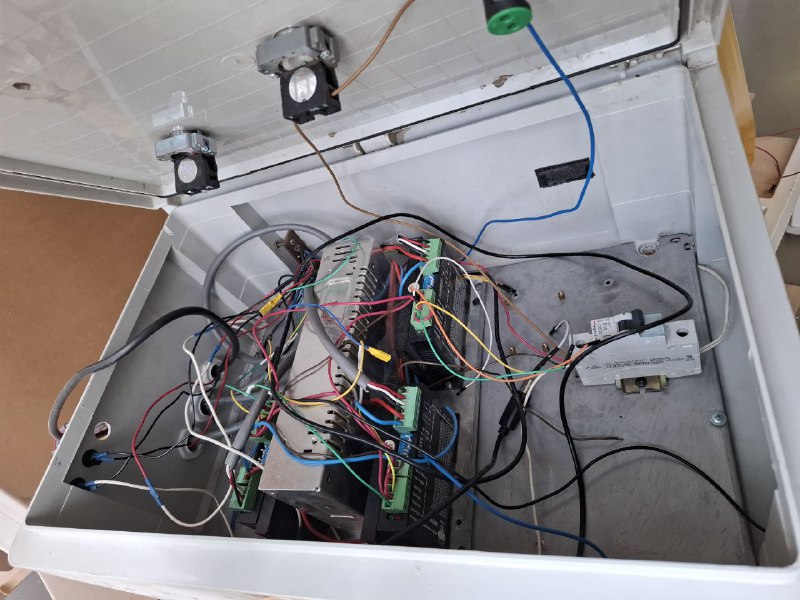

Inside: power supply, 2 stepper drivers, Arduino UNO with CNC shield.

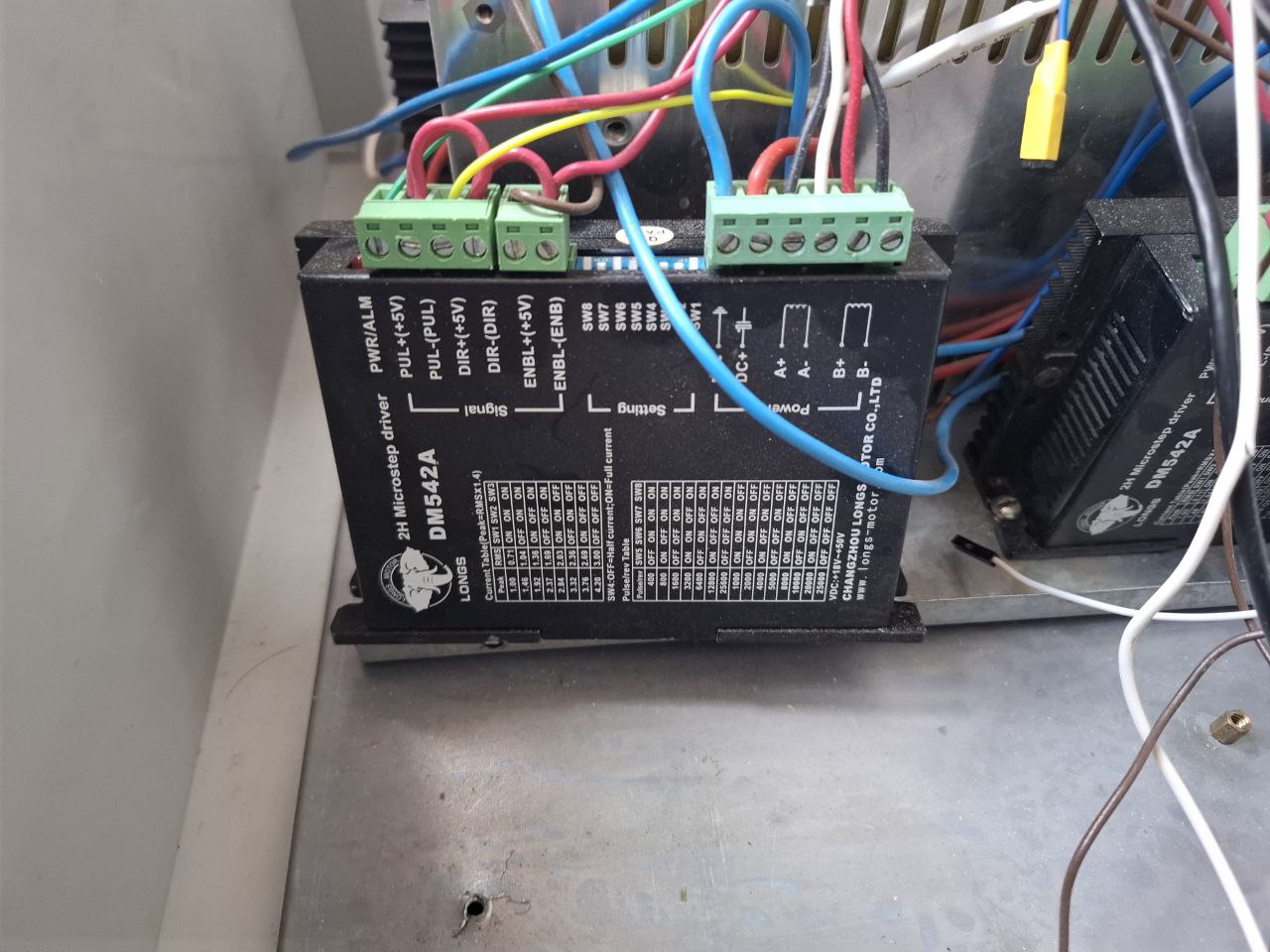

We tested one driver separately.

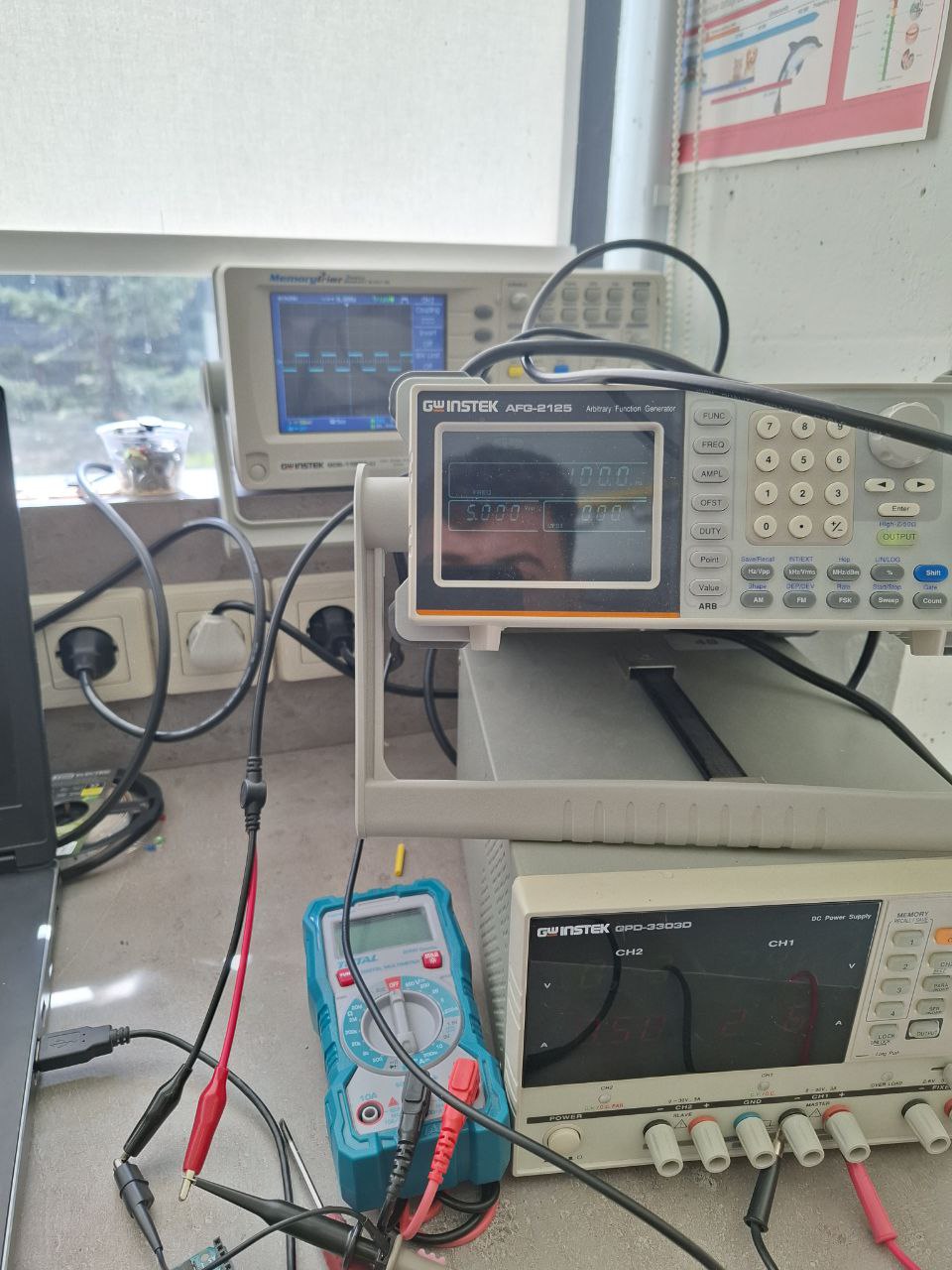

Here’s the test setup with a power supply, waveform generator, and oscilloscope.

We experimented with different motor speeds:

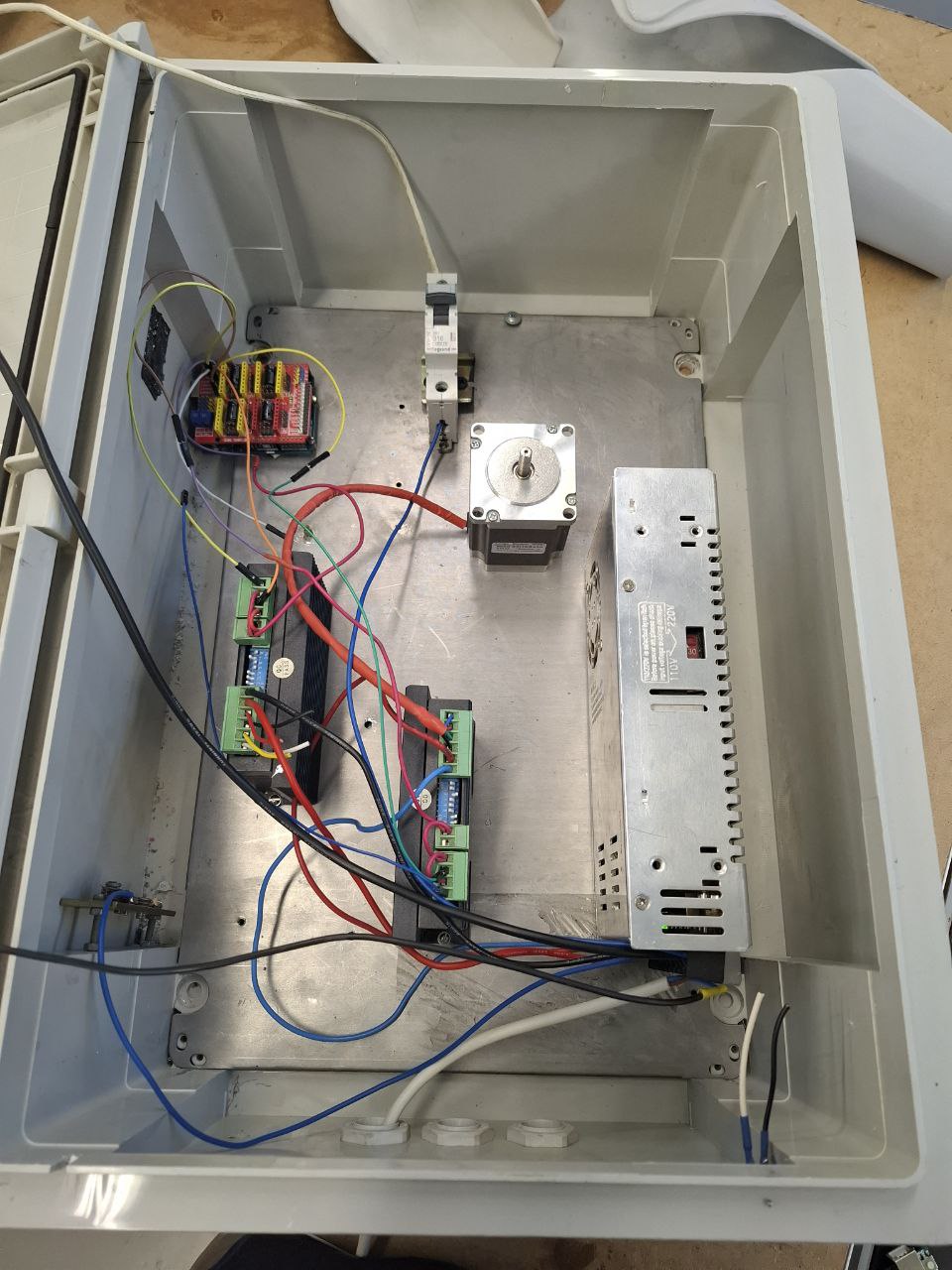

Later, we cleaned up and organized the control box:

Software

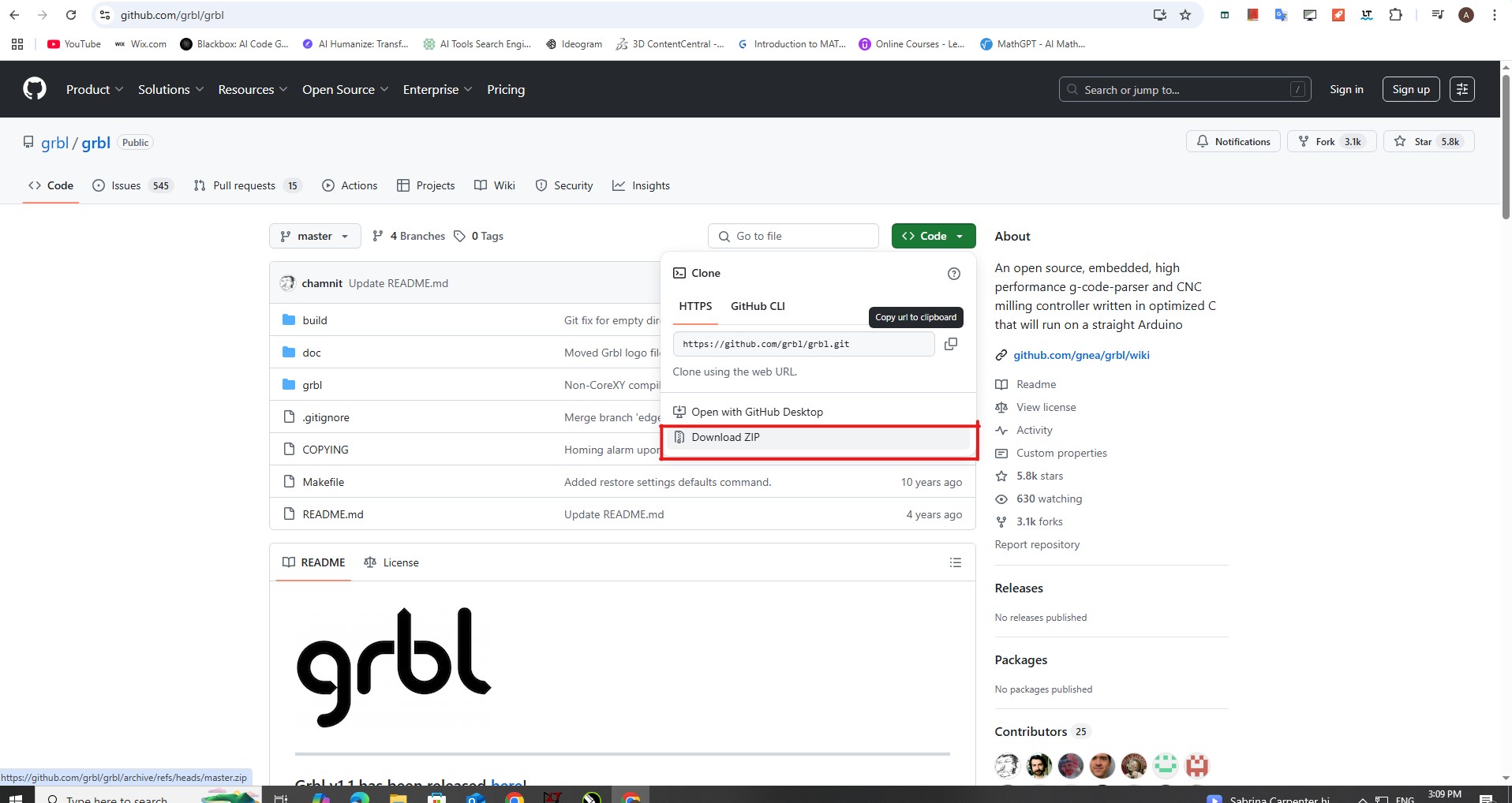

To send G-code, we installed GRBL on the Arduino.

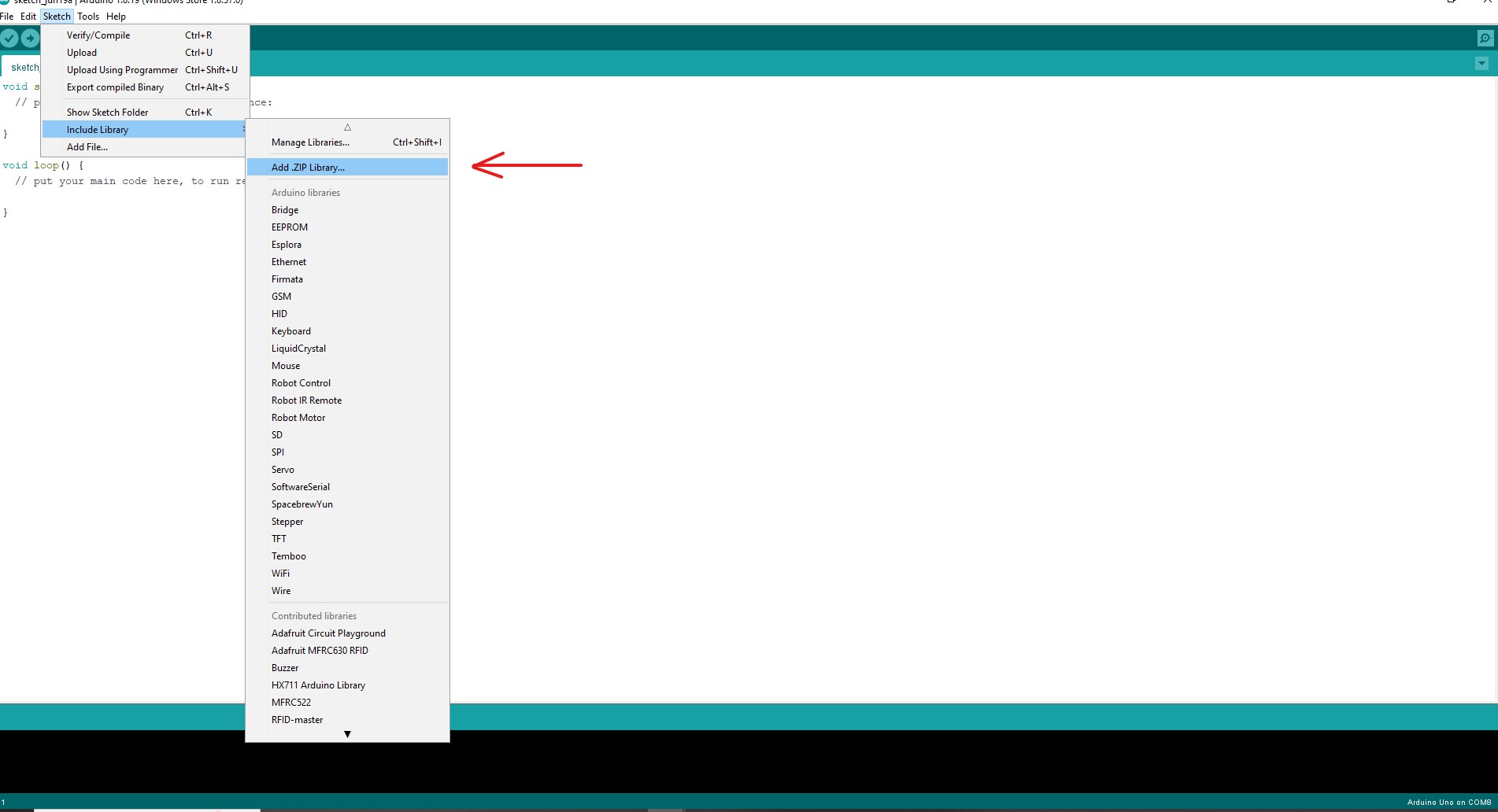

We imported the GRBL zip into the Arduino IDE.

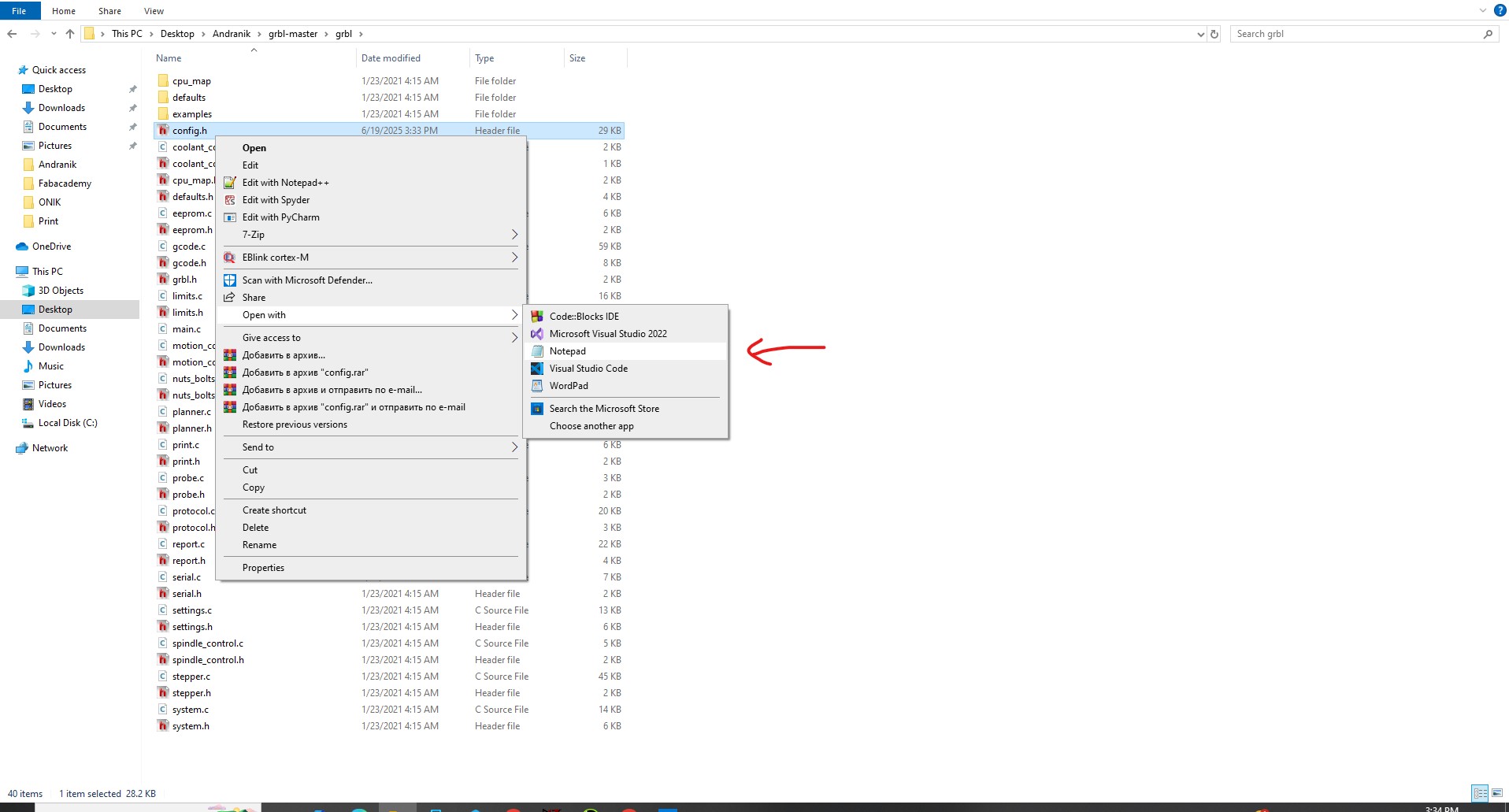

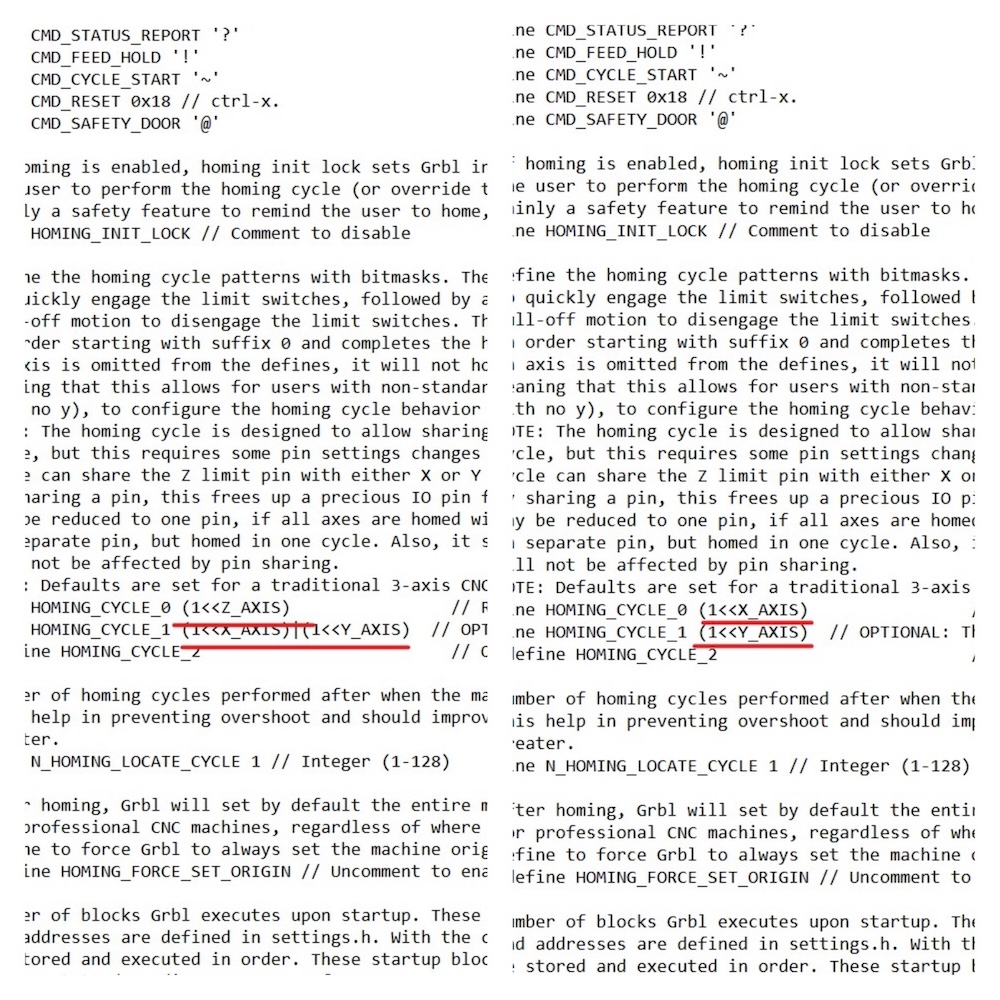

Since we only use X and Y axes, we modified config.h to disable Z.

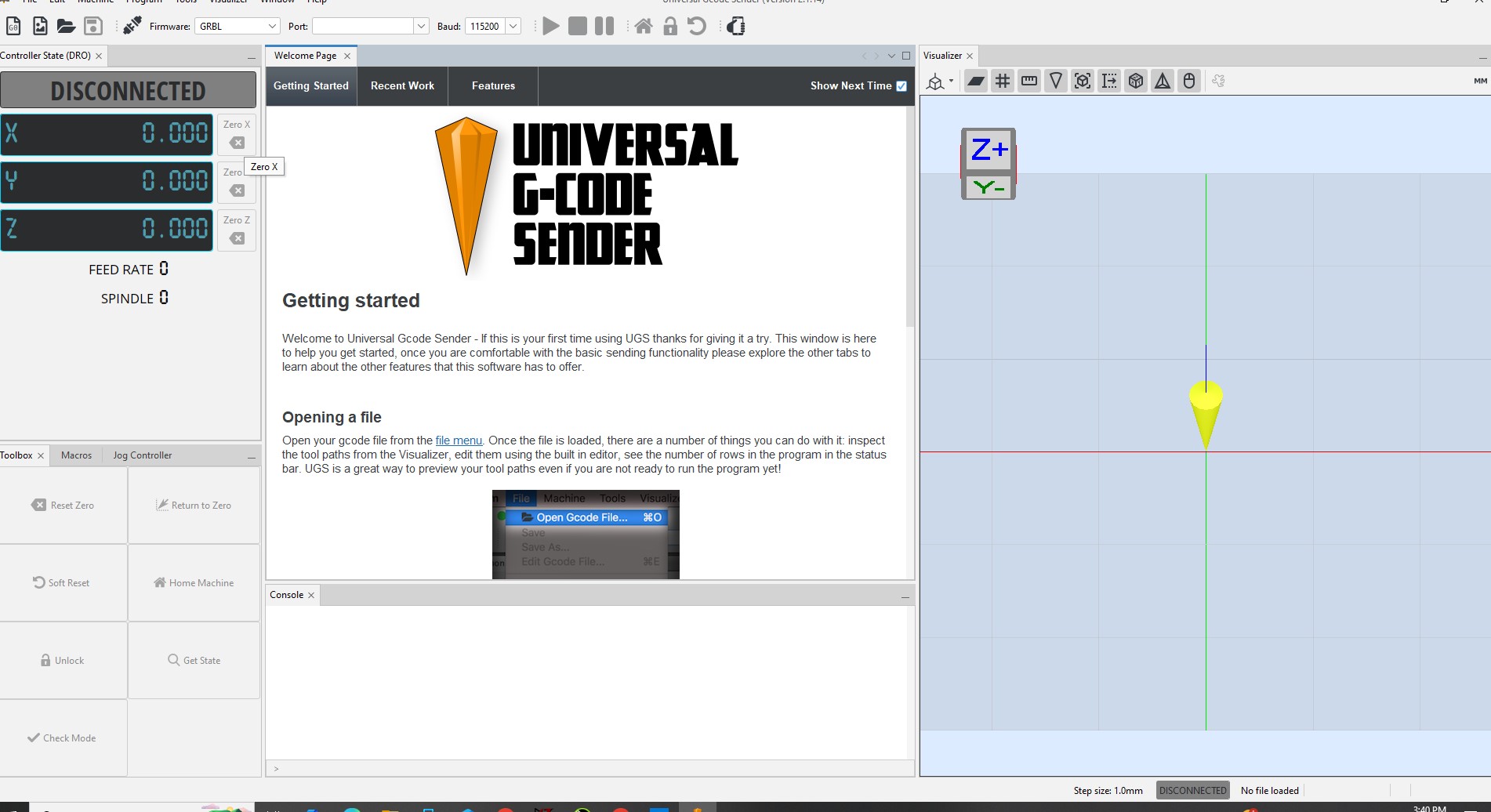

We used Universal Gcode Sender (UGS) to communicate with the Arduino.

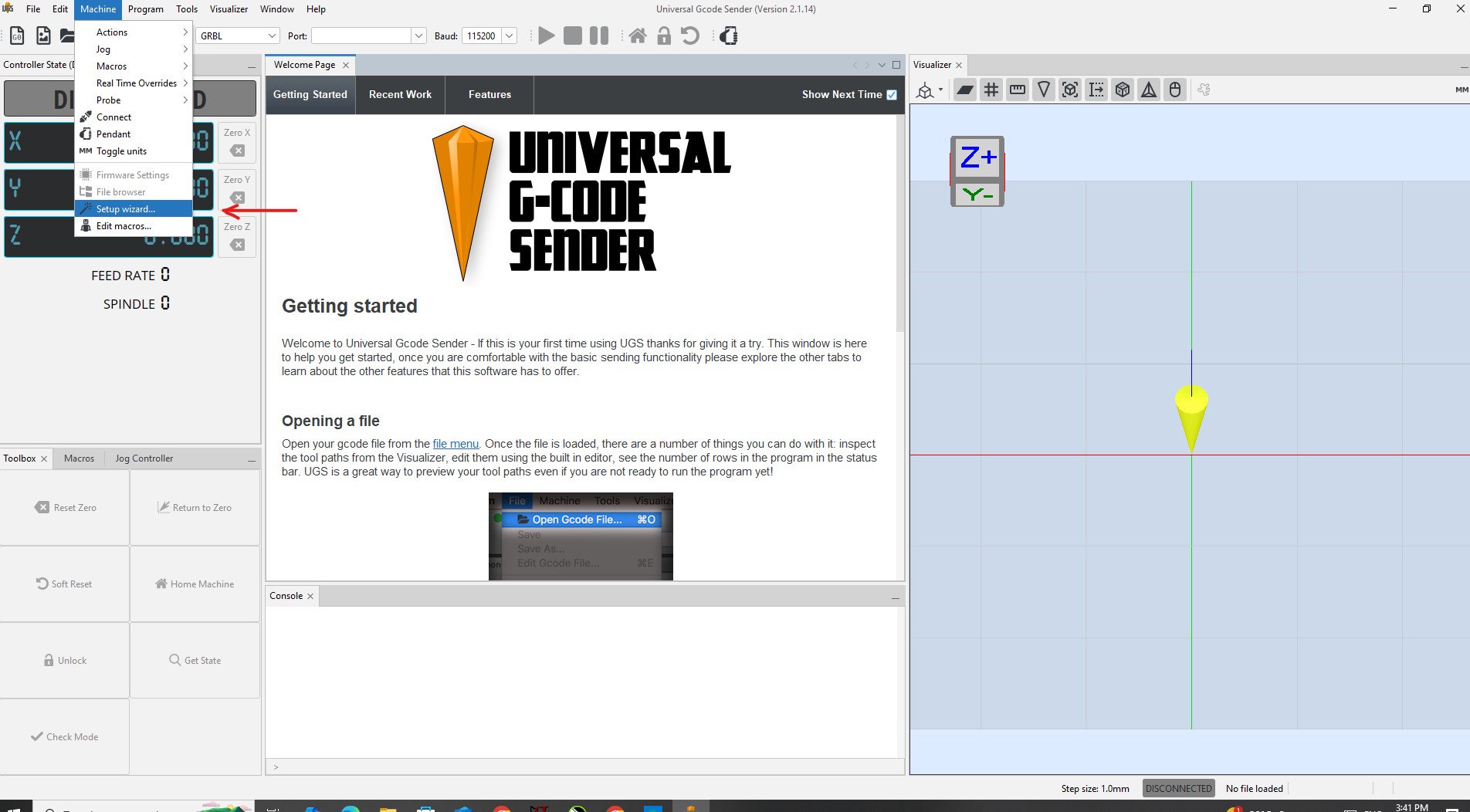

We used the Setup Wizard in UGS to calibrate direction, steps/mm, and homing.

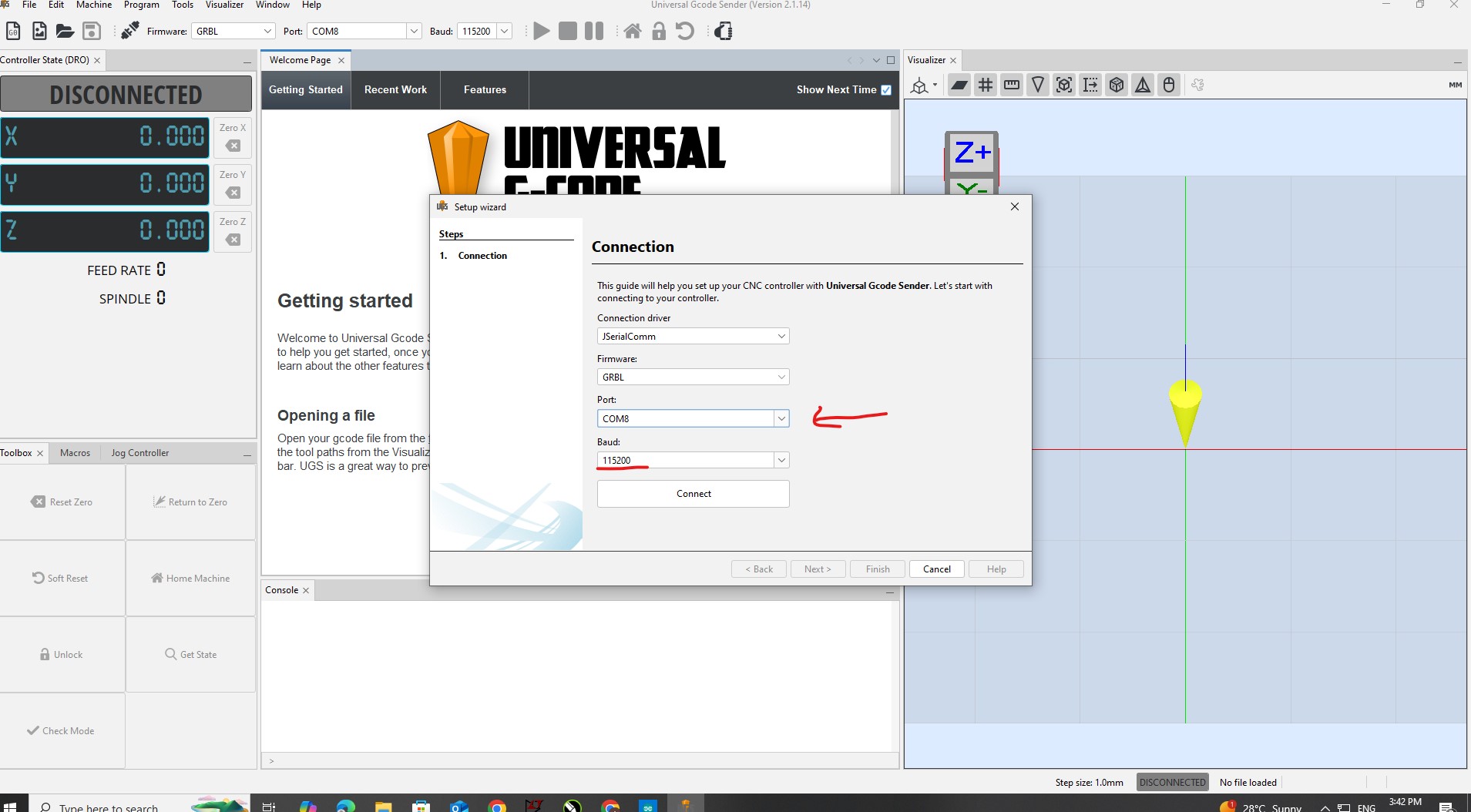

Connected via COM8 at 115200 baud rate.

We fine-tuned the steps per mm until the movement was accurate.

Protective Box

To improve safety, we designed a protective enclosure and vacuum attachment.

It was modeled in Rhino and we used 5 mm acrylic for strength and transparency. The enclosure fits the machine perfectly and is secured with screws.

The vacuum attachment was designed for our Total vacuum cleaner and 3D printed in PLA for quick prototyping.

Assembling and Testing

We finished assembling the protective box

And here is our beautiful machine:

We first tested with a wooden cylinder

Launching the job:

And here is our test result:

For our last test, we used aluminium. And it worked beautifully:

Files

Protective box

Mount step file

Nozzle for the vacuum cleaner
