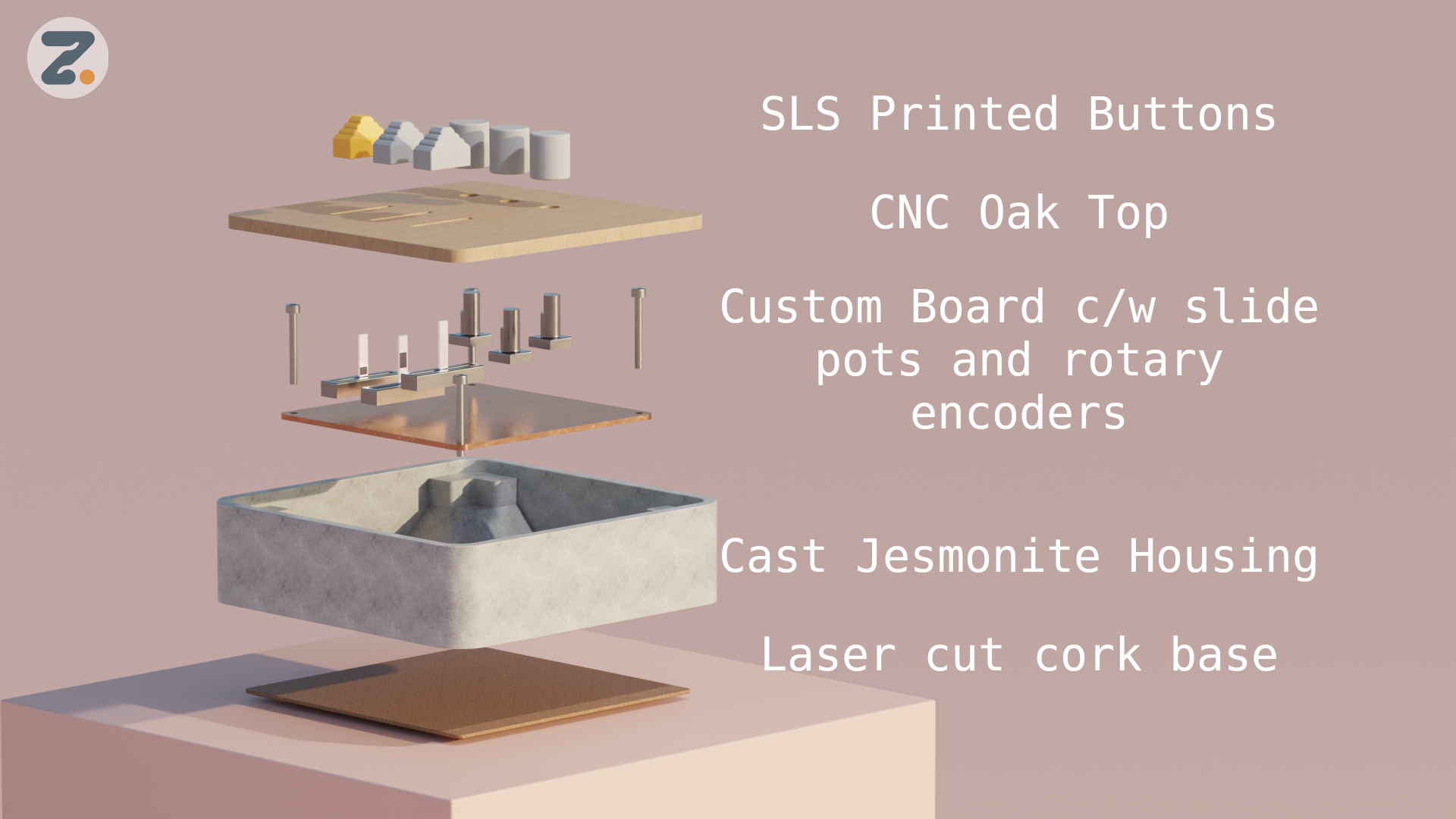

Final Project Presentation





Qty Part Des Cost Total Link
1 Raspberry Pi Pico 2 W Board Main Board for device €8.27 €8.27 Link
3 RIC11-31S15D7-GSMT SMD rotart encoder - User Input €2.52 €7.56 Link
3 SLIDE POT 10KOHM 0.125W TOP 20MM Slid Pot - User input €1.37 €4.11 Link
1 Board of FR1 Copper board for milling €2.90 €2.90 Link
1 OLED Oled Display for setting sencivitity €3.08 €3.08 Link
1 Oak Board Top plate material €0.00 €0.00 Offcut from wood shop
1 Jesmonite Material for base €20.00 €20.00 Link
1 PLA Knobs and oled Shroud €20.00 €20.00 Link
€65.92

Weeklies:


Week 2 - CAD

Week 5 - 3D printing and scanning

Week 9 - Inputs

Week 10 - Outputs

Week 11 - Networking

Week 13 - Moulding and Casting

Week 14 - Interface and Applications

Week 16 - Wild Card Week(Carry Case)

System Integration:


Week 15 - System Integration


Click for weekly

All programming was assisted by ChatGPT, I have included the full chat logs in the files download below. Much of my development was done on boards designed by Adrian Torres

For the full history of my development see my Project development

Files:


2D Files

3D Files

EDA File

Code

AI Chat Logs
