3D Scanning and Printing

slicing

šŸ’”Group assignment

  • Test the design rules for your 3D printer(s)
  • Document your work on the group work page and reflect on your individual page what you learned about characteristics of your printer(s)

About this week

Briefly describe the goal of the assignment. What are you characterizing, testing, or exploring

Carl:

This week we are all taking Niel’s tests prints and testing them on 3 different printing proceses in our Lab, SLS, SLA and FDM.

Thom:

I chose to work with the Formlabs Fuse 1 SLS 3D printer to run the test prints through.

Diarmuid: I chose to work with the FDM printers - specifically the Prusa i3Mk3s+


Tools and materials used

List all the machines, software and materials used in this assignment.

  • Formlabs - Form 3L
  • Formlabs - Wash L
  • Formlabs - Cure L
  • Formlabs - Clear V4 resin

Thom:

  • Formlabs - Fuse 1
  • Formlabs - Fuse Sift
  • Formlabs - ReForm Slicing Software
  • Formlabs - Nylon 12 powder

Diarmuid:

  • Prusa i3MK3s+
  • Prusa Slicer
  • PLA filament
  • PETG filament

Process and methodology

Describe step-by-step what the group did. Include sketches, screenshots, or videos if possible.

Carl - SLA Test Prints on the Formlabs Form 3L

After downloading the test files I brought them into Preform, Formlabs slicer and print managementf software. I spaced the parts out on the build platform.

slicing

In order to make the test work as pest as possible i needed to take into account some of the particulars of SLA printing.

First step was to avoid ā€œCupsā€. this is where a cup like shape on the print can form a vacum like grip on the base of the resin tank. As this is a relatively fragile material this must be avoided. Damaging the botom of the tank can cause resin to leak into the electronics and optics of the printer, potentially causing irreparable damage.

The next step is dealing with layer adhesion. In my experience in order the first layer of resin prints adhere very strongly to the build plate, to the point where it is quite easy to damage the part when removing it.

So to solve this issue even when the prints are parallel to the build plate i raise them up and place them on supports.

Note that when auto adding supports to the print it generate them everywhare, causing issues with the bridging one for example. So i want en and manually removed areas where the support would have interfered with the test. slicing

If i was printing a model that was not for testing purposes i would try and rotate the part so that there was not large flat areas parallel to the build plate as these can have quality issues, but for the purposes of the test it was more important to maintain the orientation of the parts for the test to have validity. slicing

Preform does a good job of warning me if i have any areas of the print that will cause issues. Here you can see that I have some warnings but i let the print go as we are deliberately testing features like unsupported overhangs. slicing

The prints we sent over the network to the printer. On startup i got a message saying that the printer needed to be leveled so i went through the leveling procedure. slicing

Now that the prints are running i will wait till the morning to see how they come out… slicing

Day two, Prints came out great, no fails.

Week5 Goup P2 - 1.jpeg

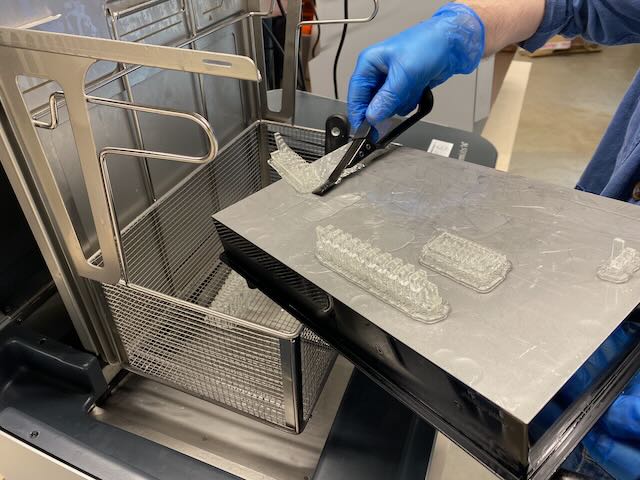

All plopped into the washer for 20min in IPA

Week5 Goup P2 - 4.jpeg

And then into the curing station with the supports still on. The settings were formlabs standard profiles for Clear v4 resin.

Week5 Goup P2 - 15.jpeg


Thom: Preparing, printing and post-processing the test prints on the Fuse 1 SLS 3D Printer

Preparing for Printing

  1. Preparing the SLS printer

    I turned on the SLS printer and let it warm up for about an hour while checking all the connections and making sure the printer was leveled. checks1.jpg

  2. Adding Material

For this print I would be using Nylon powder, so I removed the material container from the post-processing chamber and interted it into the print bed. I made sure to check that the power was connected and it was secured into place.





Preparing the Files

I prepared the files for slicing and sending to the printed in Preform.

  1. Connecting to the printer

    Once the printer was warmed up and the material was added, I connected to the printer via the network and opened the Preform software.


  1. Sorting the files

Since I had a multiple files going to the same print job, I arranged then to minimise the height of the print and for overall print time. I first ran an auto-sort, then rearranged the individual files so that they printed in the orientation they would in an FDM printer.


  1. Slicing and sending to the print

Once the files were appropriately orientated I sliced them and sent them to the printer.


Printing

  1. Final Checks

    Once I was ready to print I ran the automatic printer checks and then started the print.


  1. Printing

In the video below you can see the print in action.

output_fastest.mp4

Post-processing

  1. Transfering the print to the post-processing chamber and cooling

    The print, still in the material container, was transferred to the post-processing chamber. It had to be left for approximately 3 hours to cool down.



  1. Removing from the material matrix

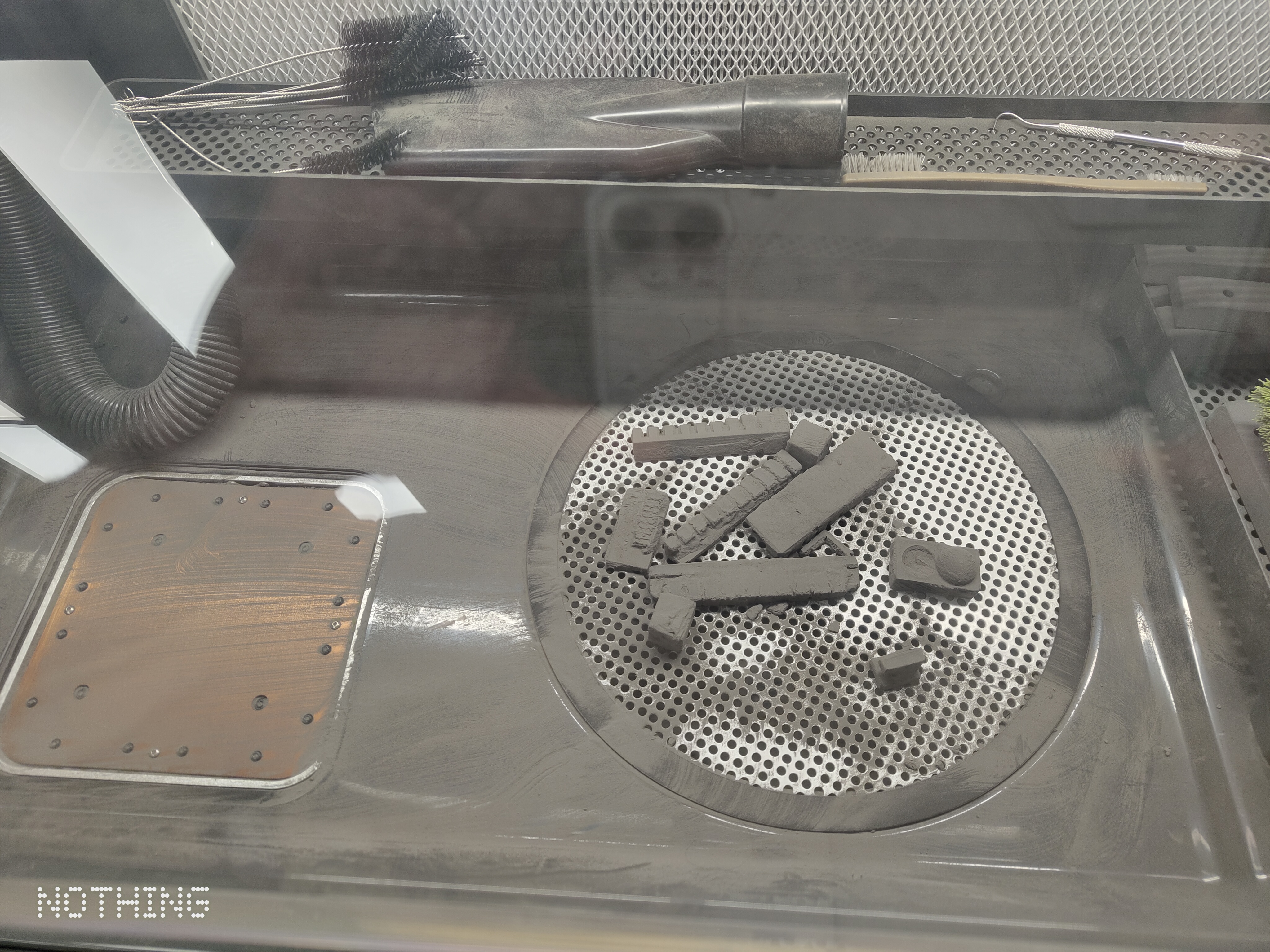

Once the print was cooled down I removed it from the material matrix and placed it in the preparation area of the chamber (below which was a container to catch the waste material).


  1. Cleaning up the print

The final step was to clean the excess material from the print using a variety of brushes, drain cleaners and pointy dental equipment.


Preparing and Printing FDM parts - Prusa style!!

Step 1

Download Niel’s sample files.

Step 2

Import into Prusa Slicer for 3d printing. Space the parts - I have these well-spaced and for printing one object at a time you need to make sure they print in sequence so that the print head will not crash into the parts. You can check this when looking through the sliced preview and checking each layer.


I just changed a few things in the print settings

  1. ā€œavoid crossing parimetersā€ in the Layers and parimeters section.


  1. under Output options tick Complete individual objects, you might need to increase the height section if doing this make sure your parts will start printing at the front of the bed and work back.


make sure that parts are evenly spaced - there will be a bounding box around the parts this relates to the extruder clearance radius in the screen shot above (but dont change this unless you understand what you are doing) also make sure the parts are in order printing front to back - you can adjust the order in window on the right by dragging and dropping the object part names.


Also make sure the correct material is selected in my case Prusament PETG.

click slice now.


check the layer preview using the slider to the right of the screen.

prusa_layer_check.mp4

this looks good - sequential printing like this has many benefits including improved layer adhesion less stringing and if a part fails something might finish - as we will see later…

All looks good so we can export to SD card -

Take the SD card to the 3d Printer


navigate the onscreen display with the control knob to print from SD.


The printer will start to preheat - its always a good idea to stick around to inspect the first layer to make sure its sticking and that your printer is doing as expected.


We can see that the print will take 7 hours I did check the first layer but forgot to photograph it heres a photo of the first part a few layers in though (probaly about 40 min into the print)


At this point I left the printer do its thing and came back regularly to check progress.


I noticed some curling and stringing from the filament indicating the filament could wet and the print surface could need cleaning. All looks good apart from that so far!!

spoke too soon!! the last part failedšŸ˜©ā€¦ but because we printed one part at time have complete parts 😃.



Bead adhesion gave up on the last part and we got some spaghetti.

I also printed the support part files and selected add support.



after these printed the support needs to be pulled away by whatever means necessary - needle nose pliers and small tweezers worked well for me on the long piece checking print in place interference. The over hang i was able to separate by hand.



I also printed Infill test blocks in 0% 5% 10% 20% 30% 40% and 50%


To achieve this I created separate infill settings for each part and set the infill for them individually.



TODO


Group conclusions

Findings:

Thom: SLS removes many of the limitations/challenges encountered traditional FDM machines including overhang,tolerances, orientation and feature size.

There is a limit to the overhang angle and tolerance of parts that interface. Different printers will behave differently and have there own unique setting that will change between different material types.

Challenges: [What issues did you encounter?]

Finding the correct print settings for your printers

Solutions: [How did you solve them?]

Type here


Files

Add all files created for this group assignment

See below link to to files created this week:

Testing 3D Printer STLs.zip

fdm_group_files.zip
