11. Networking and Communications¶
This week I worked on communication between two microcontrollers.
Weekly Objectives¶
- individual assignment:
- design, build, and connect wired or wireless node(s)
-
with network or bus addresses and local input &/or output device(s)
-
group assignment:
- send a message between two projects
Useful links¶
Group Assignment¶
In this week group assignment, Elle and I figured out how to connect her servo with my sensor. I designed the board and soldered components onto the board. You can find our full group documentation here.
TFT Touch Screen¶

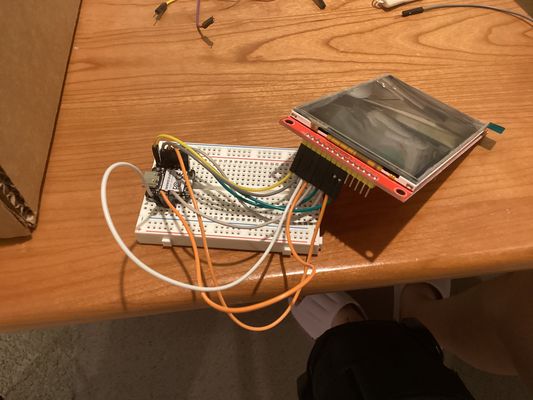

Since my final project requires te use of TFT screen, I decided to use TFT screen for this week. During weekend I followed Connor Cruz’s Documentation and downloaded the library Connor used.
Next I asked ChatGPT to help me with the wiring according to the example code. I used XIAO Rp2040 for this.
I then successfully uploaded an example code from the tutorial.
Since it was really late that night, I decide to leave the rest of it till the next day. In order to put the screen back to its box, I took off the wires from the screen.
The Tragedy of my TFT Screen¶
The next day, when I tried to connect the wires to the screen according to the picture I took the day before, the TFT dsiplay suddenly started to smoke once I plugged in power. I immediately cut the power off but the TFT Screen was still broken after this. So I had to ask Mr. Dubick to buy me a new one.

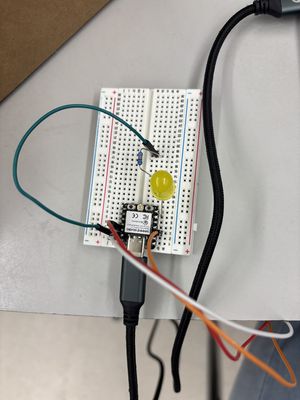

Touch Sensor with ESP32-C3¶
During Input week, I did touch sensor with XIAO rp2040. In this week, I used the same touch sensor but switched to XIAO ESP32-C3.
Here’s a video of it working:

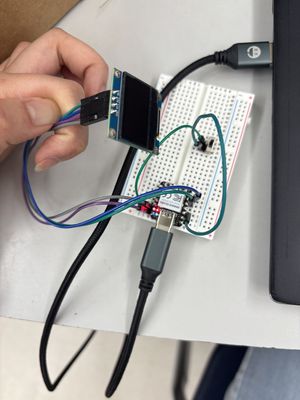

Screen with RP2040¶
Since my TFT was broken, I had to switch back to the OLED I used last week. However, this made this week so much faster since I already knew how to use an OLED screen. So I just use the same circuit as last week.

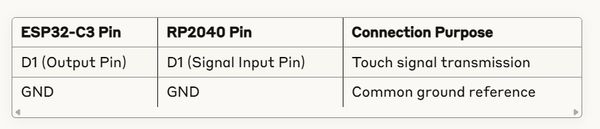

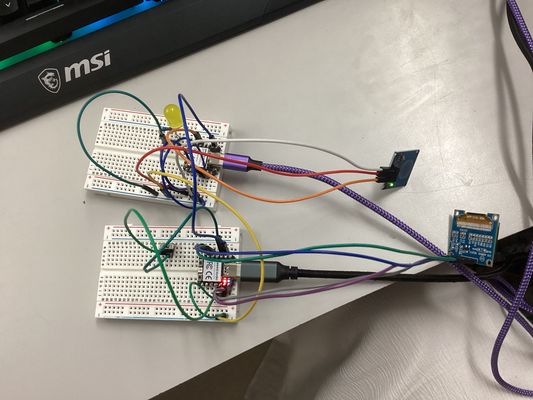

Communication between ESP32-C3 and RP2040¶
Then the hardest part of this week came: the communication between the two microcontrollers. I asked Claude for help. With the help of Claude, I used the simplest way - GPIO Communication - to make two microcontrollers communicate with each other. The only need to connect the two D1 on each microcontroller and connect the GND on each microcontroller. Here’s a wiring diagram of the additional part of the circuit.
I also got the code from Claude. The first time I tried it, the code worked but not completely.
The picture of Miffy did not full show up. I asked Claude to modify the code.
After several tries, the code was finally written correctly.
Correct Codes¶
Here’s the corrrect code for each microcontroller:
XIAO RP2040
#include <Wire.h>
#include <SPI.h>
#include <Adafruit_GFX.h>
#include <Adafruit_SSD1306.h>
#define SCREEN_WIDTH 128
#define SCREEN_HEIGHT 64
#define OLED_RESET -1 // Reset pin not used
#define SWITCH_PIN 28 // Slide switch connected to GPIO28
#define SIGNAL_PIN D1 // Input pin for receiving signal from ESP32-C3
Adafruit_SSD1306 display(SCREEN_WIDTH, SCREEN_HEIGHT, &Wire, OLED_RESET);
// Miffy bitmap data
const unsigned char miffyBitmap[] PROGMEM = {
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x3f, 0xf8, 0x00, 0x01, 0xff, 0x80, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xe0, 0x0e, 0x00, 0x07, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80, 0x03, 0x80, 0x1c, 0x00, 0x38, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x06, 0x00, 0x01, 0x80, 0x30, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x0c, 0x00, 0x00, 0xc0, 0x60, 0x00, 0x1c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x1c, 0x00, 0x00, 0xe0, 0xc0, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x61, 0xc0, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x61, 0x80, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x73, 0x80, 0x00, 0x0c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x73, 0x00, 0x00, 0x1c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x73, 0x00, 0x00, 0x1c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x73, 0x00, 0x00, 0x18, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x37, 0x00, 0x00, 0x38, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x77, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x77, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x77, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x7f, 0x00, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x18, 0x00, 0x00, 0x3e, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x1c, 0x00, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x1e, 0x00, 0x00, 0x00, 0x00, 0x03, 0x80, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x00, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x03, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x78, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x0f, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1e, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x1c, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x07, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0x80, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xe0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x30, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0xc0, 0x01, 0xe0, 0x00, 0x00, 0x00, 0x60, 0x00, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0xe0, 0x00, 0xc0, 0x00, 0x00, 0x00, 0xf0, 0x00, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x60, 0x00, 0x00, 0x00, 0x00, 0x00, 0x40, 0x00, 0xe0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x38, 0x00, 0x00, 0x03, 0x80, 0x00, 0x00, 0x03, 0x80, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x1c, 0x00, 0x00, 0x00, 0xfe, 0x00, 0x00, 0x0f, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x07, 0x80, 0x00, 0x03, 0xfe, 0x00, 0x00, 0x3c, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x01, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0xf0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x03, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x03, 0xc0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x7f, 0xe0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf8, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0x80, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xe0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x0e, 0x7f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x0e, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x07, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x30, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x01, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x70, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xc0, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x07, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xfc, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xff, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x0f, 0xff, 0xff, 0xff, 0xff, 0xfe, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xff, 0xff, 0xff, 0xfe, 0x70, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x38, 0x00, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x01, 0xc0, 0x00, 0x30, 0x00, 0x38, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0xf8, 0x00, 0xff, 0xff, 0xf0, 0x00, 0x00, 0x00, 0x00, 0x00,
0x00, 0x00, 0x00, 0x00, 0x00, 0x00, 0x1f, 0xff, 0xc7, 0xe0, 0x00, 0x00, 0x00, 0x00, 0x00, 0x00
};
// Variables
bool displayActive = false;
unsigned long displayStartTime = 0;
const unsigned long displayDuration = 5000; // 5 seconds display time
void setup() {
Serial.begin(115200);
// Initialize pins
pinMode(SWITCH_PIN, INPUT_PULLUP); // Use internal pull-up resistor
pinMode(SIGNAL_PIN, INPUT);
// Initialize display
if (!display.begin(SSD1306_SWITCHCAPVCC, 0x3C)) {
Serial.println(F("SSD1306 allocation failed"));
while (true); // Halt if display is not found
}
// Clear display on startup
display.clearDisplay();
display.display();
Serial.println("XIAO RP2040 OLED Controller Ready");
}
void loop() {
int switchState = digitalRead(SWITCH_PIN);
int signalState = digitalRead(SIGNAL_PIN);
if (switchState == LOW) { // Switch ON (connected to GND)
// Check for incoming signal from ESP32-C3
if (signalState == HIGH && !displayActive) {
Serial.println("Touch signal received, displaying Miffy!");
displayActive = true;
displayStartTime = millis();
// Display Miffy bitmap
display.ssd1306_command(SSD1306_DISPLAYON); // Make sure display is ON
display.clearDisplay();
display.drawBitmap(0, 0, miffyBitmap, SCREEN_WIDTH, SCREEN_HEIGHT, WHITE);
display.display();
}
// Check if display should turn off after timeout
if (displayActive && (millis() - displayStartTime >= displayDuration)) {
Serial.println("Display timeout - turning off image");
display.clearDisplay();
display.display();
displayActive = false;
}
} else { // Switch OFF
if (displayActive) { // Only need to check if the display is active
// Turn off display if it was active
display.clearDisplay();
display.ssd1306_command(SSD1306_DISPLAYOFF);
displayActive = false;
Serial.println("System turned OFF - display deactivated");
}
}
delay(50); // Small delay to prevent excessive processing
}
XIAO esp32-c3
#include <Arduino.h>
// Pin definitions
const int touchPin = 6; // Touch sensor input pin
const int outputPin = 3; // Pin to send signal to RP2040
const int ledPin = 7; // LED indicator
// Variables
int touchState = LOW;
int lastTouchState = LOW;
void setup() {
pinMode(touchPin, INPUT); // Touch Sensor
pinMode(outputPin, OUTPUT); // Output to RP2040
pinMode(ledPin, OUTPUT); // LED indicator
// Initialize output pins to LOW
digitalWrite(outputPin, LOW);
digitalWrite(ledPin, LOW);
Serial.begin(115200);
Serial.println("XIAO ESP32-C3 Touch Sensor Ready!");
}
void loop() {
// Read touch sensor state
touchState = digitalRead(touchPin);
// Print the current state
if (touchState == HIGH) {
Serial.println("TOUCH DETECTED!");
digitalWrite(ledPin, HIGH); // Turn LED ON
// Check if this is a new touch (rising edge)
if (lastTouchState == LOW) {
// Send signal to the RP2040
digitalWrite(outputPin, HIGH);
delay(100); // Short pulse
digitalWrite(outputPin, LOW);
Serial.println("Signal sent to OLED controller!");
}
} else {
Serial.println("NO TOUCH DETECTED");
digitalWrite(ledPin, LOW); // Turn LED OFF
}
// Save the current touch state for next comparison
lastTouchState = touchState;
delay(100); // Short delay for stability
}
Here’s the video of it working:
Kicad and Milling¶
I designed the two boards in Kicad.

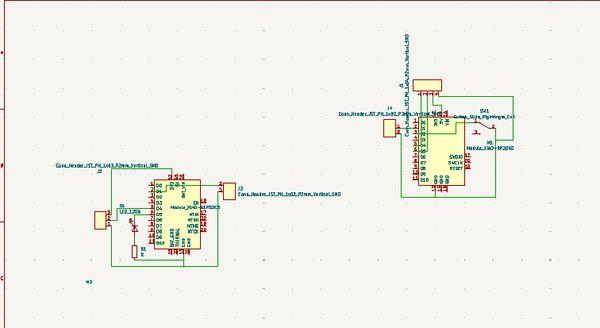

Here’s the schematic diagram:

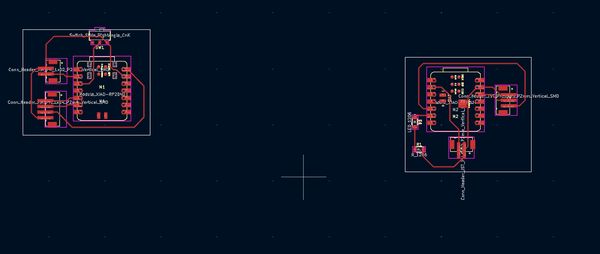

Here’s the PCB diagram:

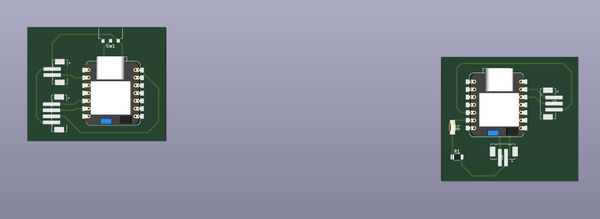

And the 3D view of the PCB:

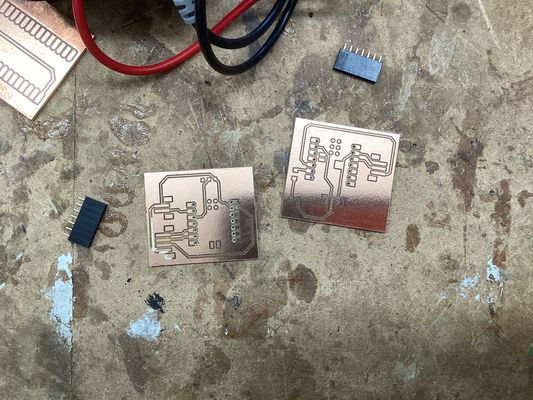

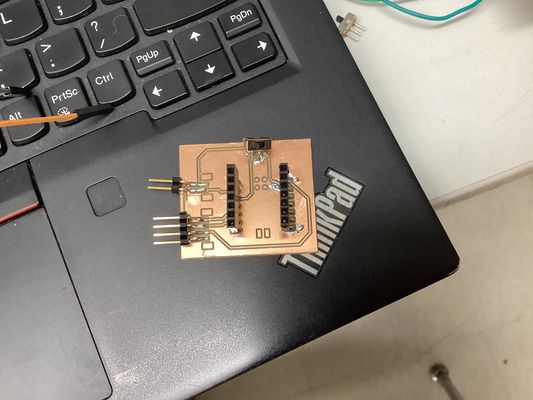

Then I milled the boards out and got two delicated PCBs
Soldering¶

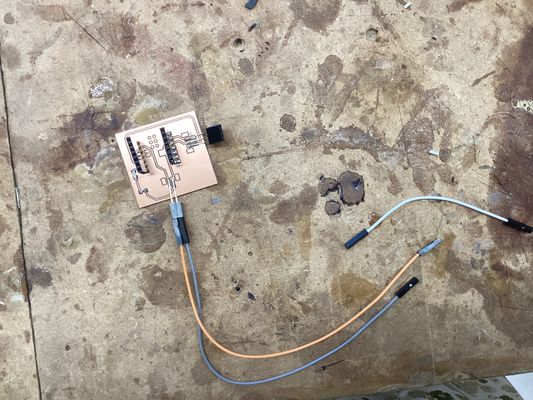

I soldered the pin headersand and other components onto the boards.
Then put the two microcontrollers onto the matching boards.

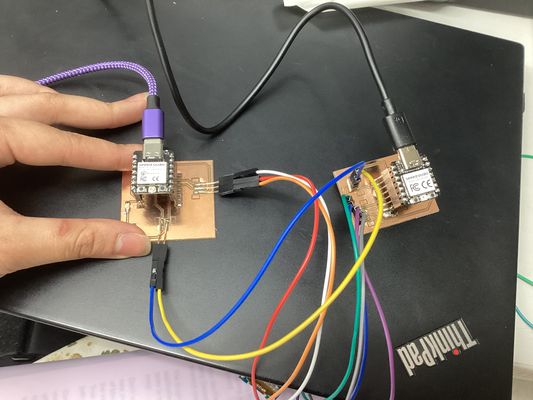

Then I got the two boards to work!
Reflection of the Week¶
This week was so dramatic. After experiencing my first hopefully last frying a component, I was upset for a while since the component was kinda expensive. However, after 15 minutes of panicking, I decided to use back to my tiny safe OLED screen (at leat if I frythis one, it won’t cost too much). I also learned a lot about communication. ChatGPT told me to use 12C communication (SPI and UART) while Claude gave me thesimpler way GPIO communication. Now I trust Claude more than ChatGPT on electronics (Claude you are my GOD but ChatGPT I still love you~~~). This week was really fun and I am kinda scared for machine week which is next week. Let’s see what I can make in two weeks!
AI Usage¶
I used ChatGPT to help me generate the code and fixing my wiring. You can found the whole conversation here.
I also used Claude to help me improve my code. You can find the whole conversation here.
File Download¶
You can download my file here.
