This week we were assigned to create a machine. We decided to make a talking Zoltar, but with Neil’s face instead of the origional Zoltar. We also wanted him to have his own custom sayings.

Mr Dubick wanted us to have a more “mechanical design” than just using servos and steppers. Little did I know, that was the worst sentence that has been spoken in my life. I knew making an automata was difficult, but I was in for 4 weeks of pure agony.

Group Assignment

Files

3d Modeling

Motion

I was assigned to make the automata bits of the model since I was the most experienced with Fusion 360 in our group. I found this form of motion to be an interesting challenge. I wish I had more time to refine some of the parts but it ended up working in the end.

Torso Rotation

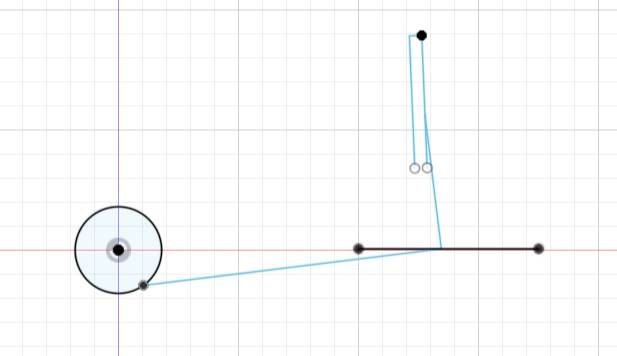

This first contraption turns the whole doll from side to side. I originally started with just a sketch and played around with it until I got the motion I wanted.

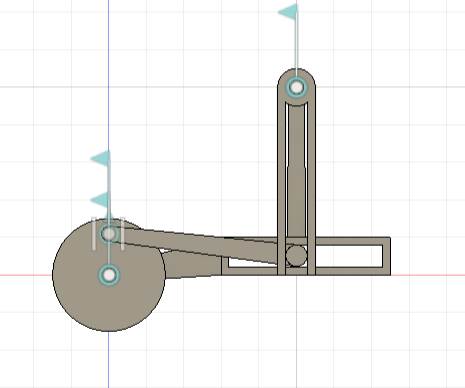

I then made the sketch 3d, this model ended up being super janky and I didn’t work when I tried to add joints to it.

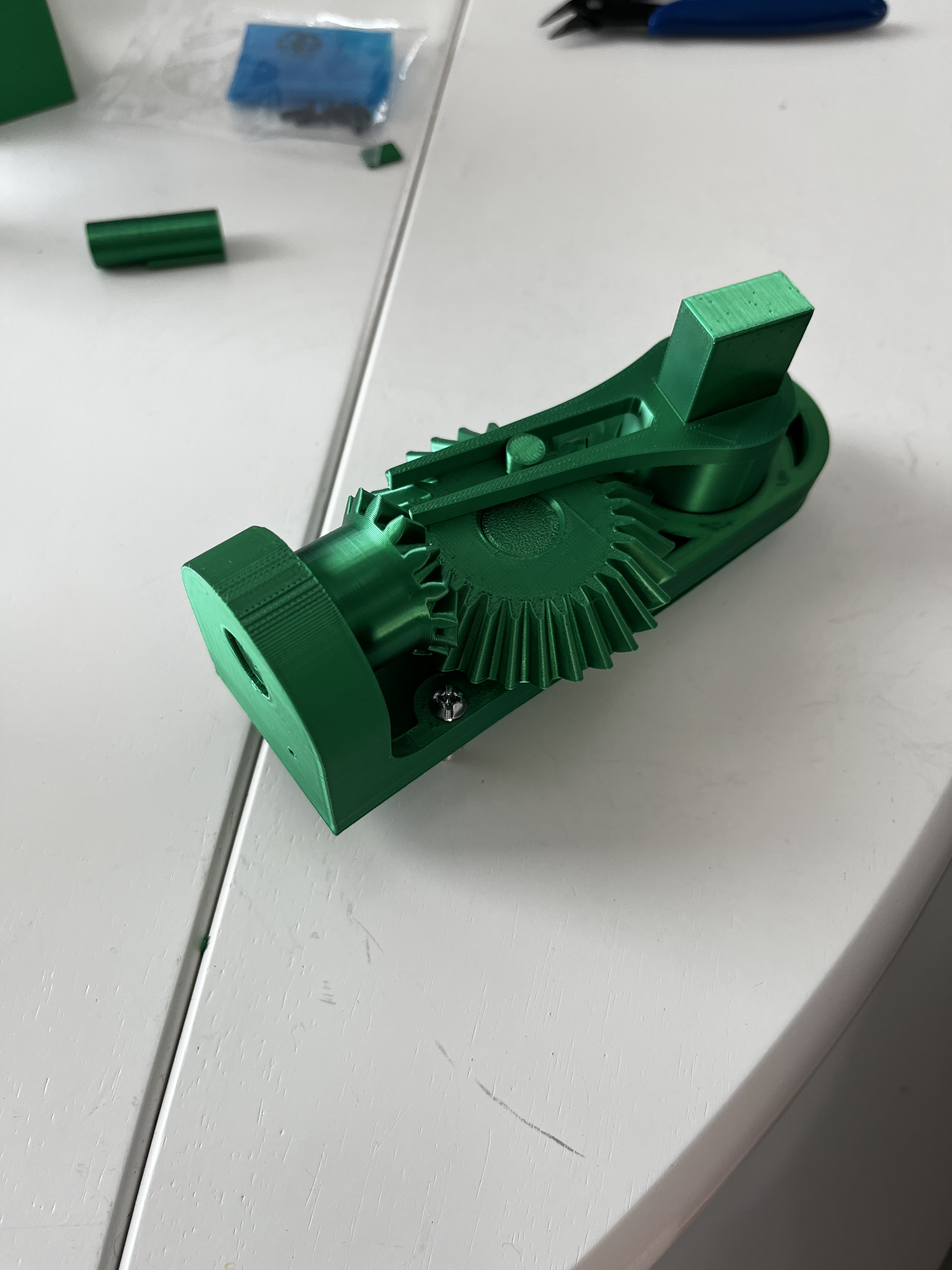

I decided it was best to start completly from scratch. I was able to get the motion links to work. I was pleased with the design and the motion it gave to I started again to make a completly new design.

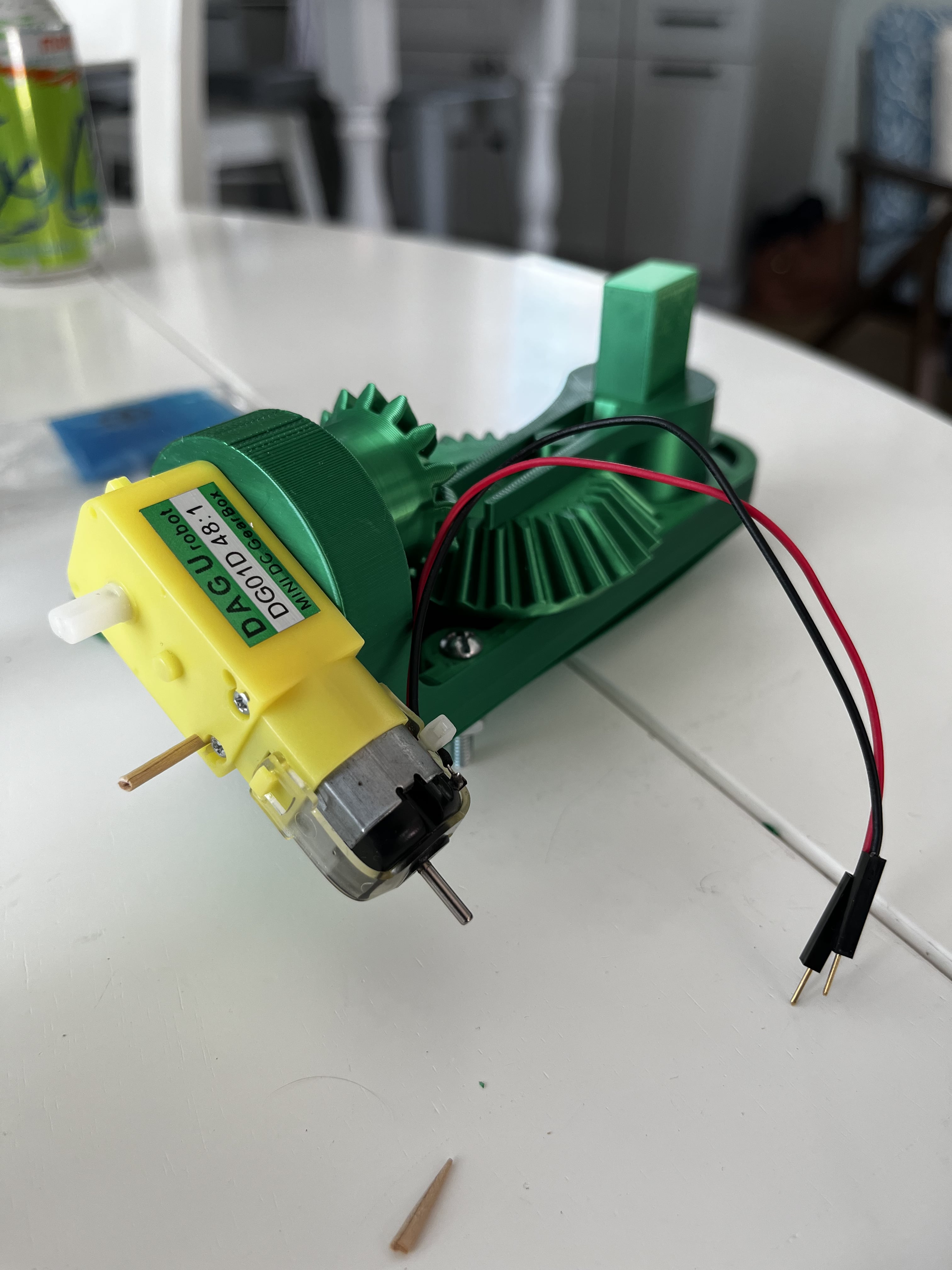

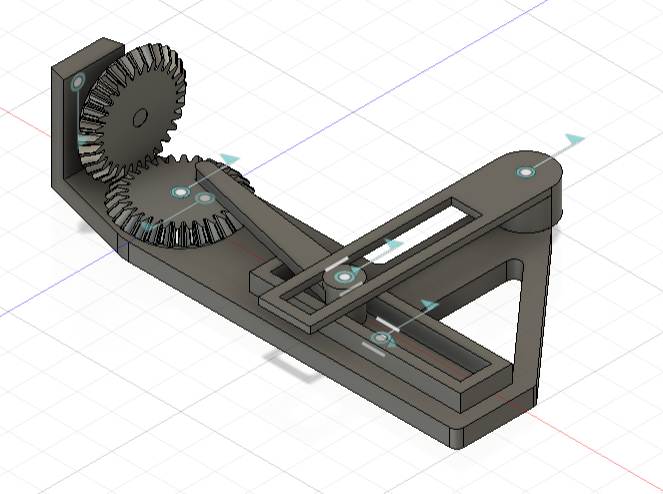

When I made this version I thought that I could shrink the design by removing one of the components. I didn’t realise this at the time, but I made a quick return mechanism. This meant that the motion went from smooth to janky. I didn’t notice this until it was too late. As I only tested this model without anythign large to show the movement clearly. It looked good in Fusion and in real life so I stuck with the design, which I now regret.

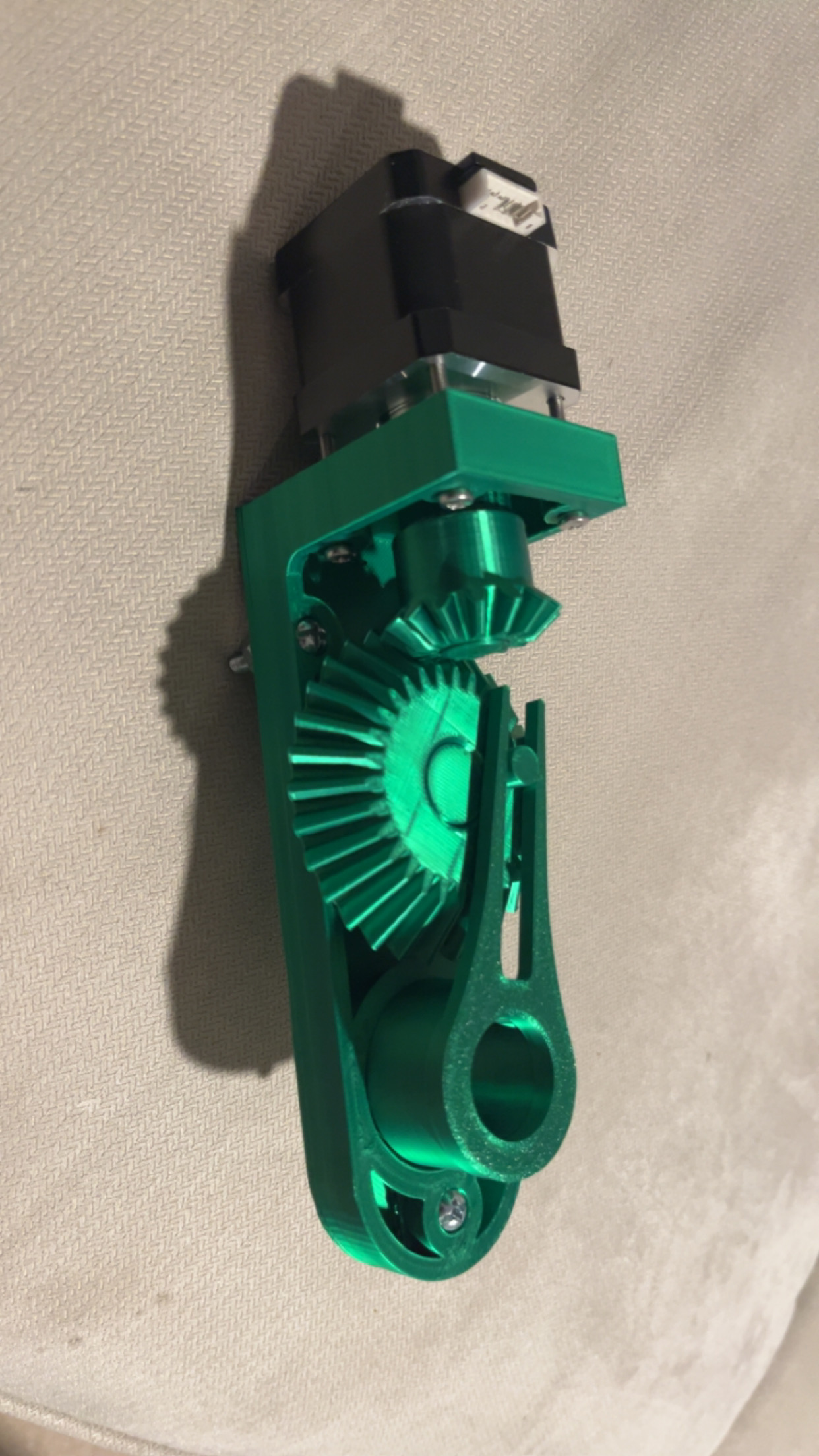

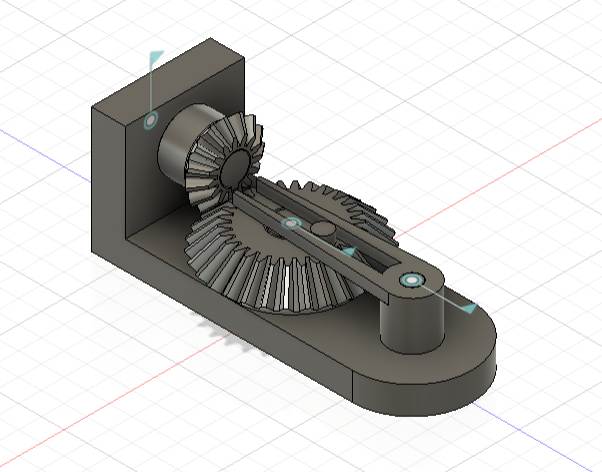

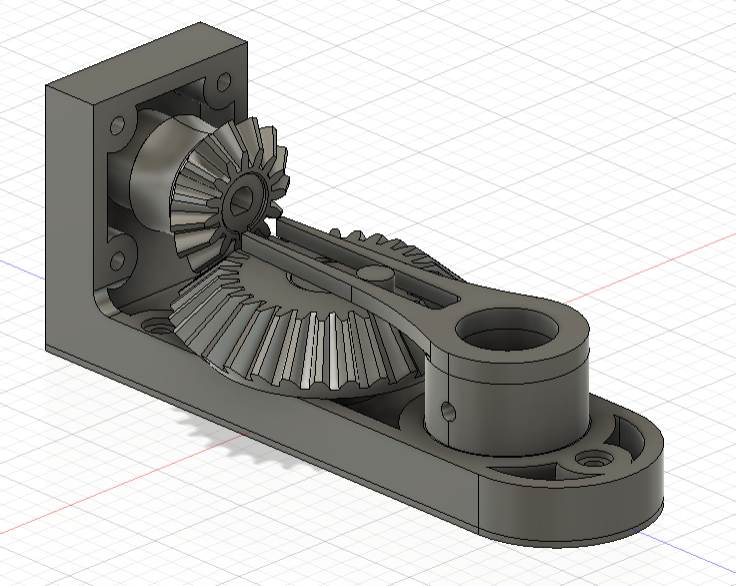

This final model is what went in the project. The only thing that I didn’t change from the previous design was the gears. Everything else was planned and created to be a much better, more fleshed out version. This was also my first time making a print in place part that I actually cared about which took a few attempts to make. Other notable features are screw holes to mount the machine and a mount for a Nema 17 stepper motor.

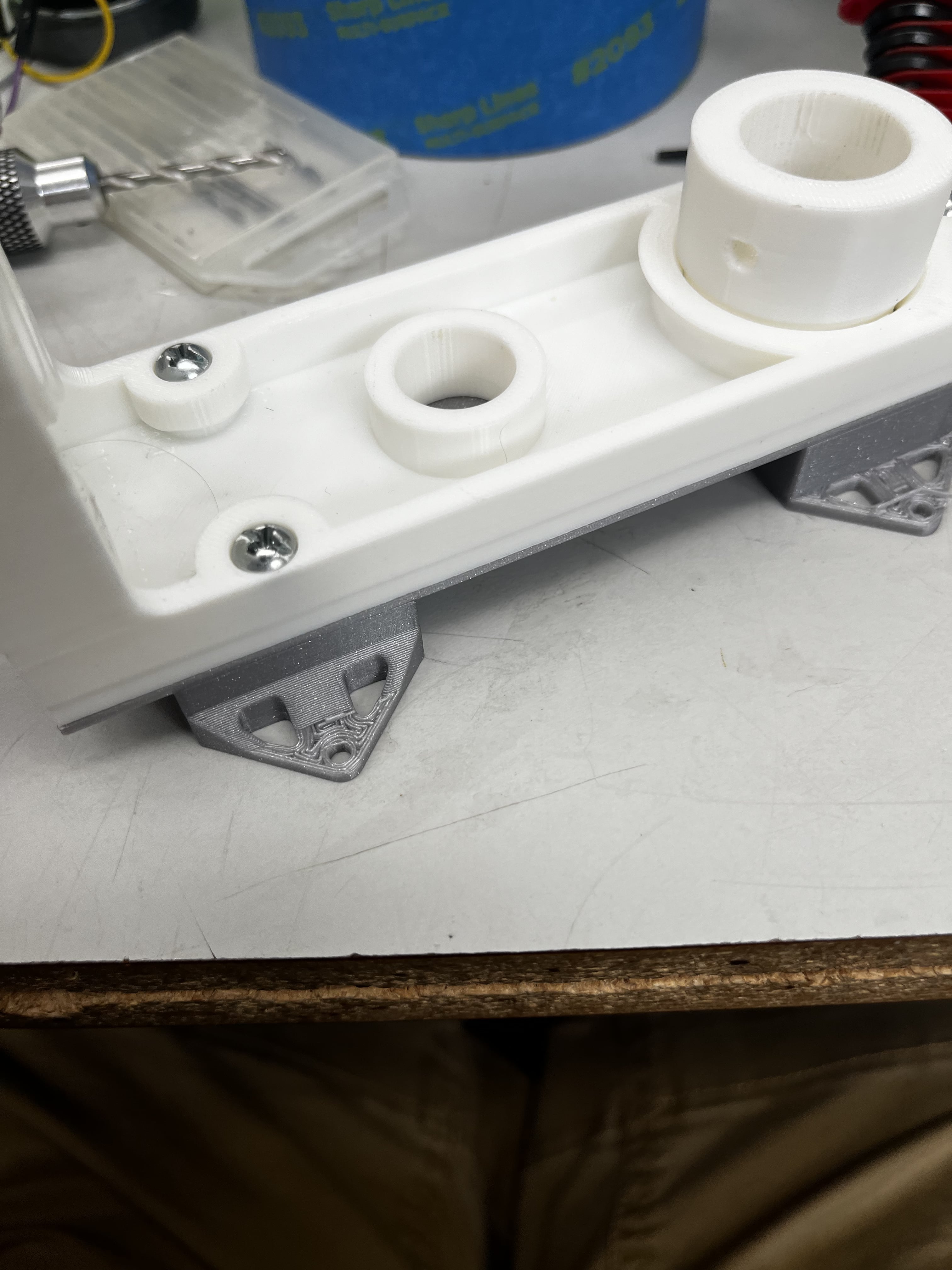

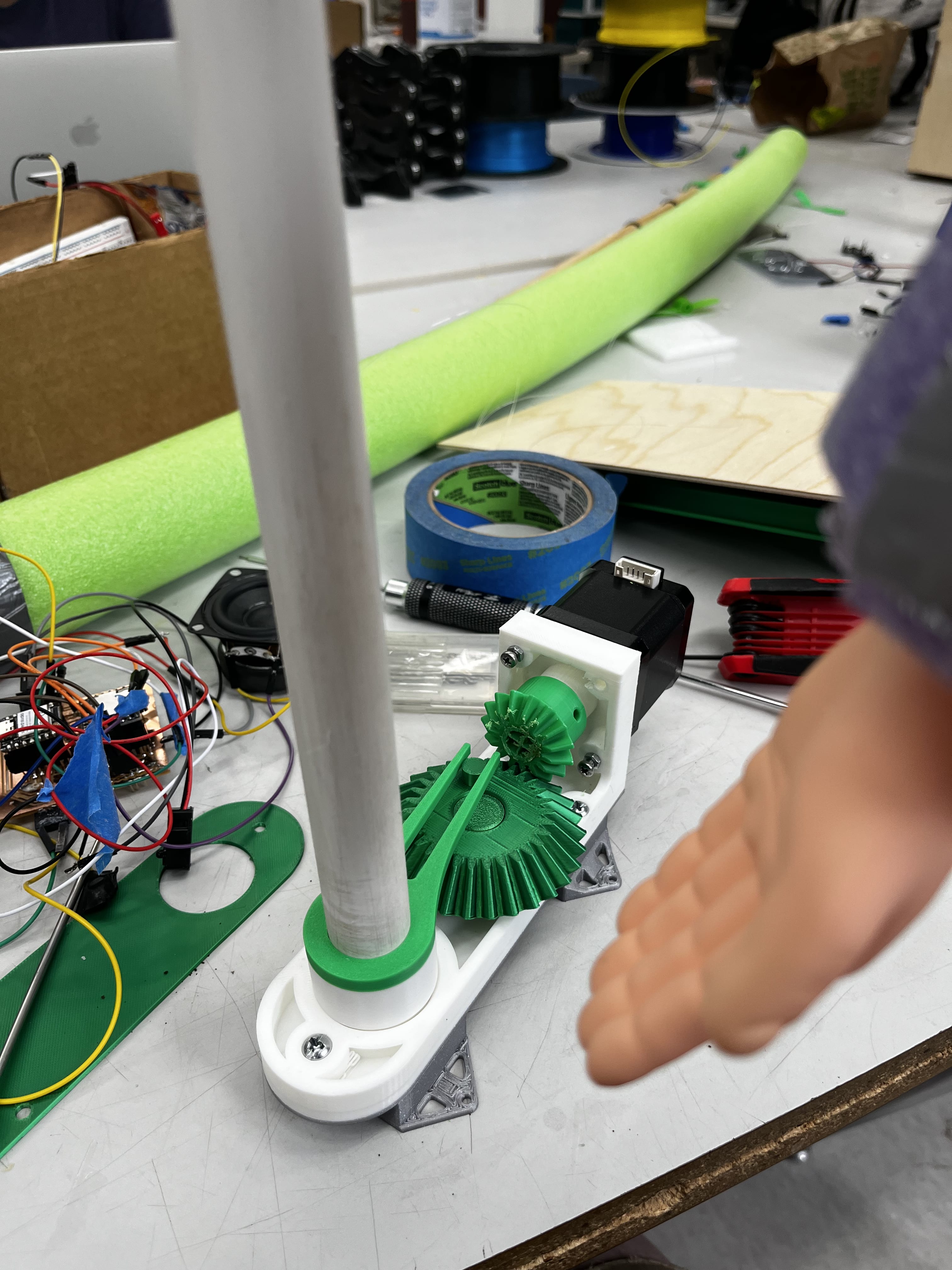

With the mount I made for it:

Arms

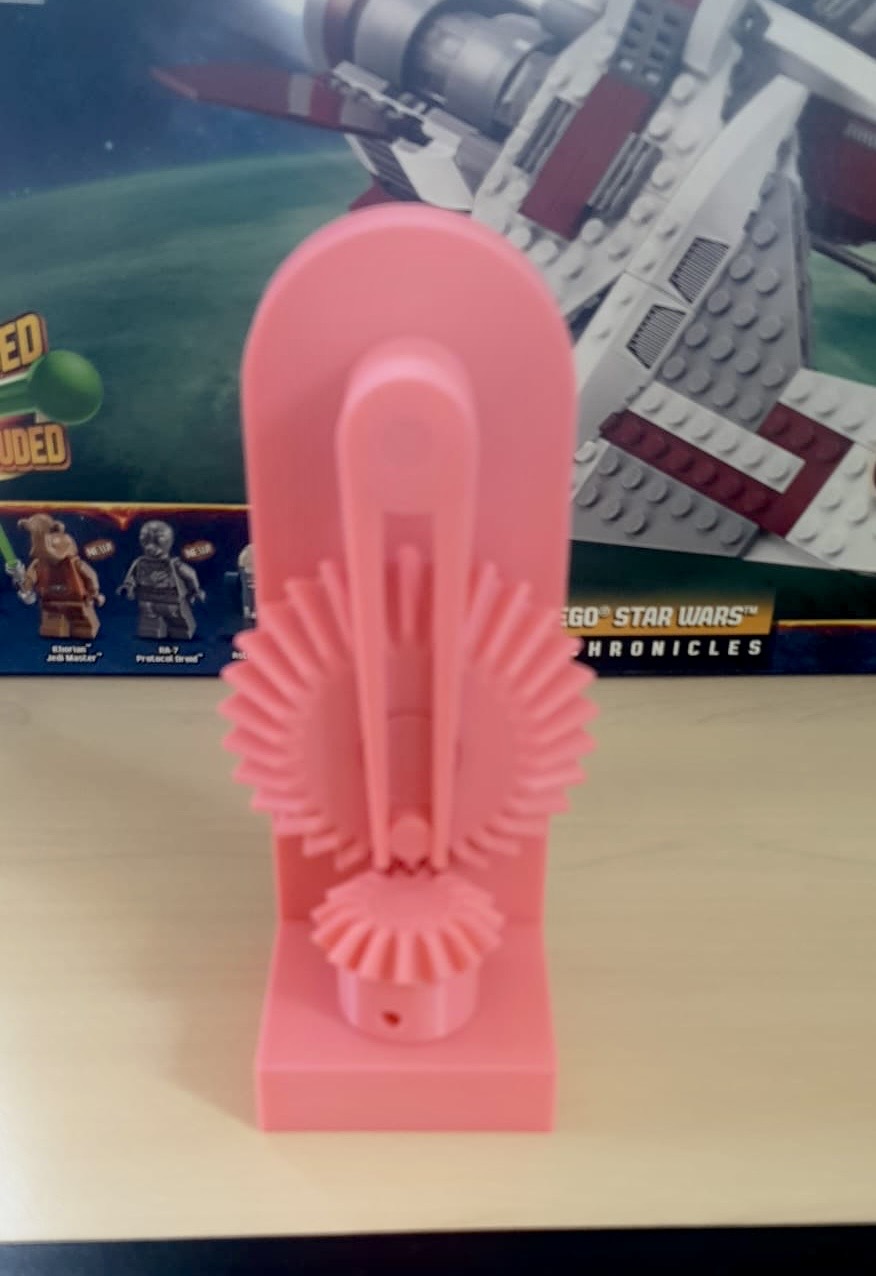

For the arms I didn’t want to use a simple pulley. I wanted to challenge myself a little bit and look for a simple, yet interesting mechanism to control Neil’s arms. After scowering the web I eventually found a really outdated website with cool videos on mechanical mechanisms.

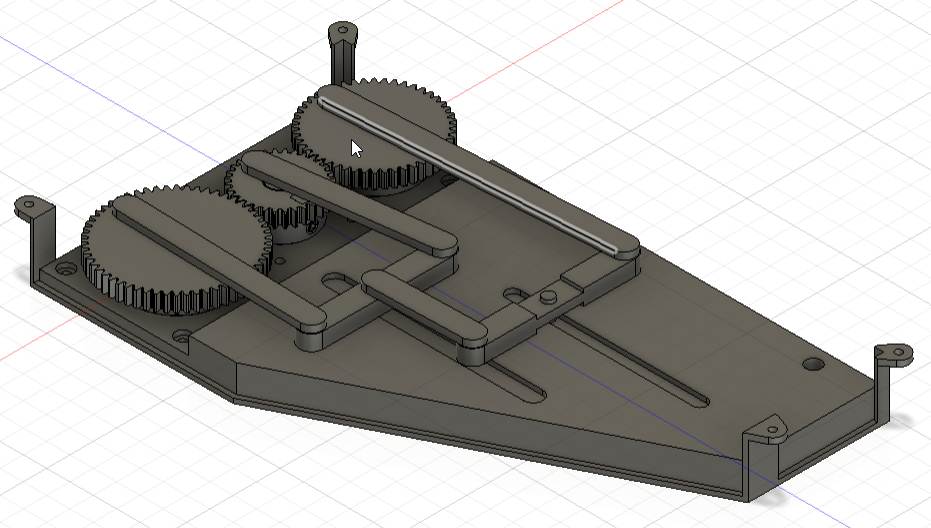

I used this linear motion to pull on some fishing line that connected to his hands, like a puppet.

Other Parts

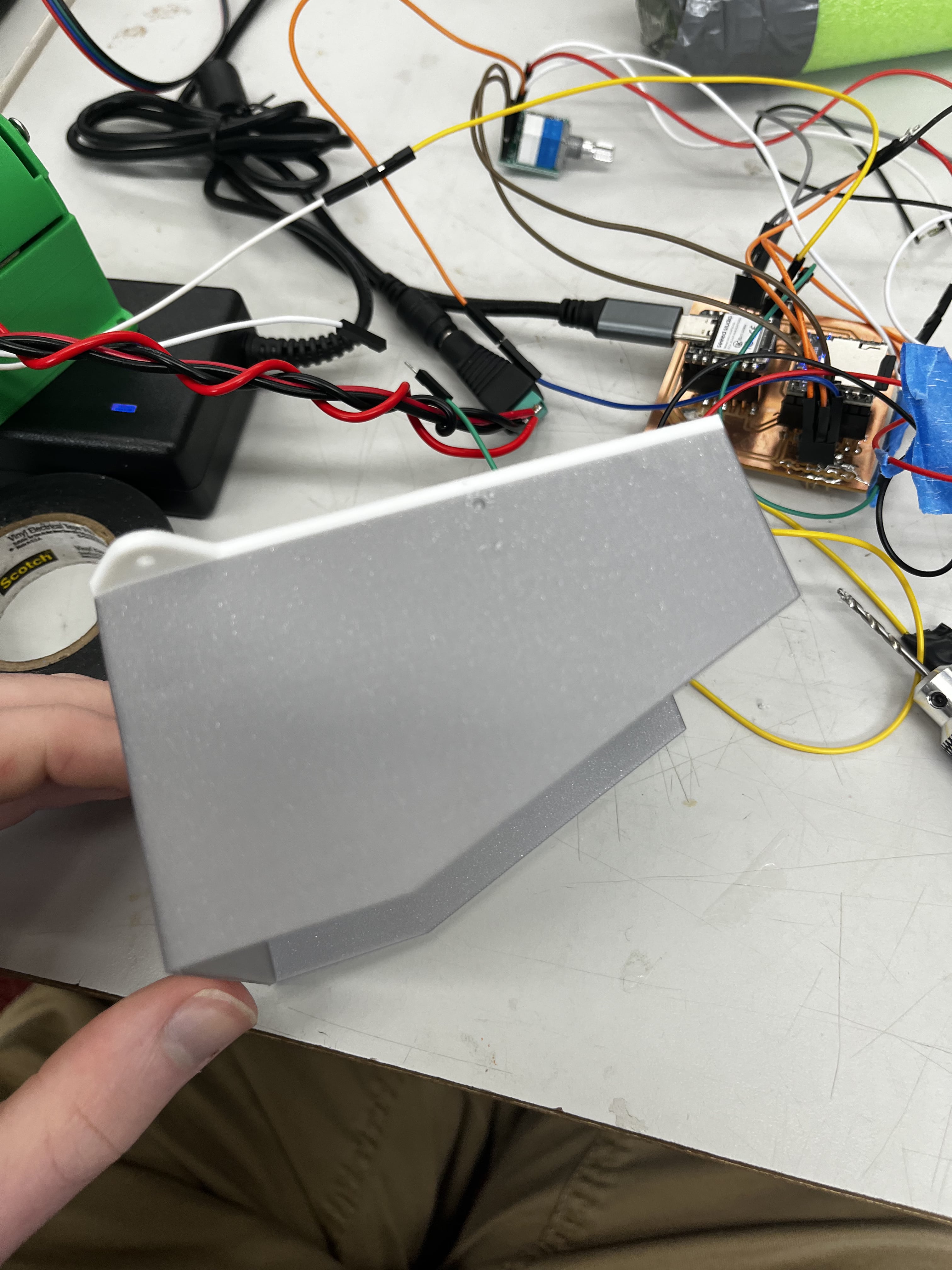

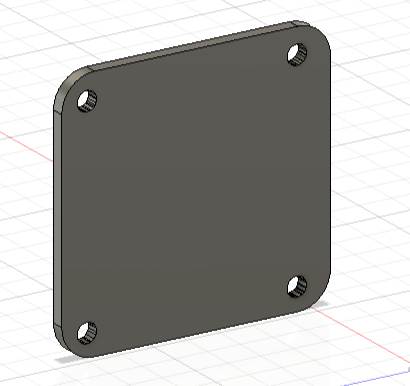

Some other things I made was a cover for the fan moung on the arduino cnc sheild case.

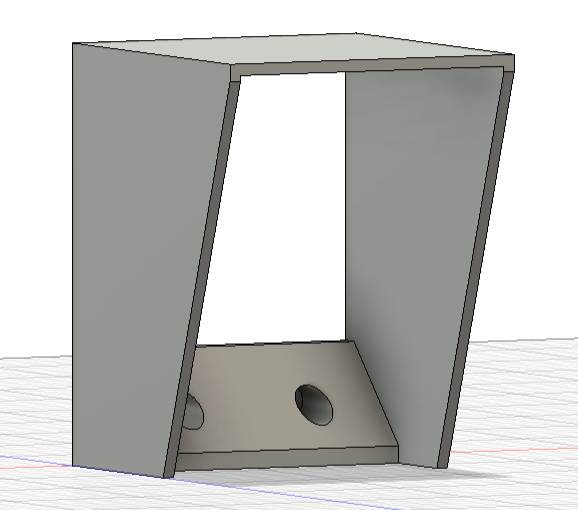

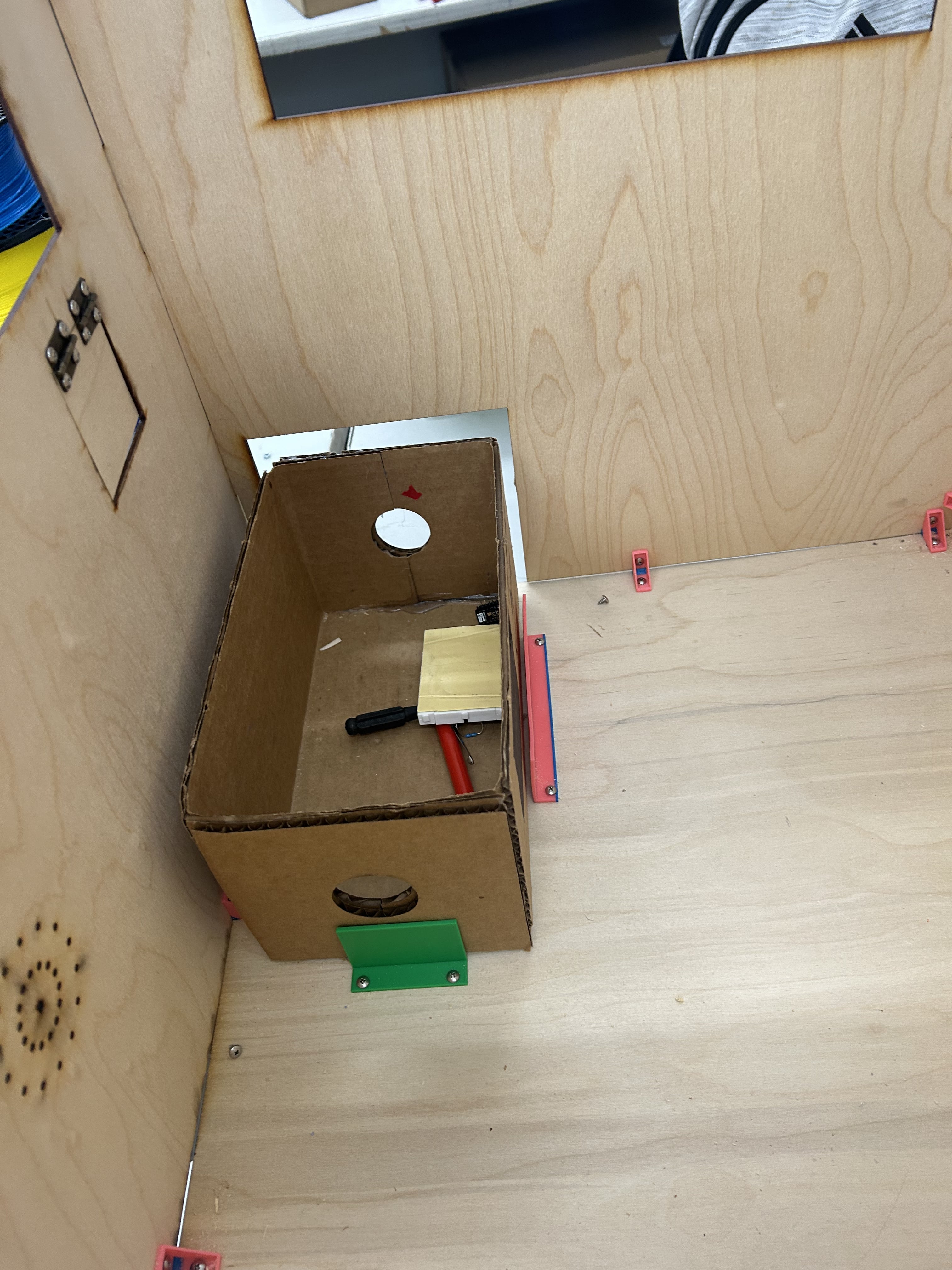

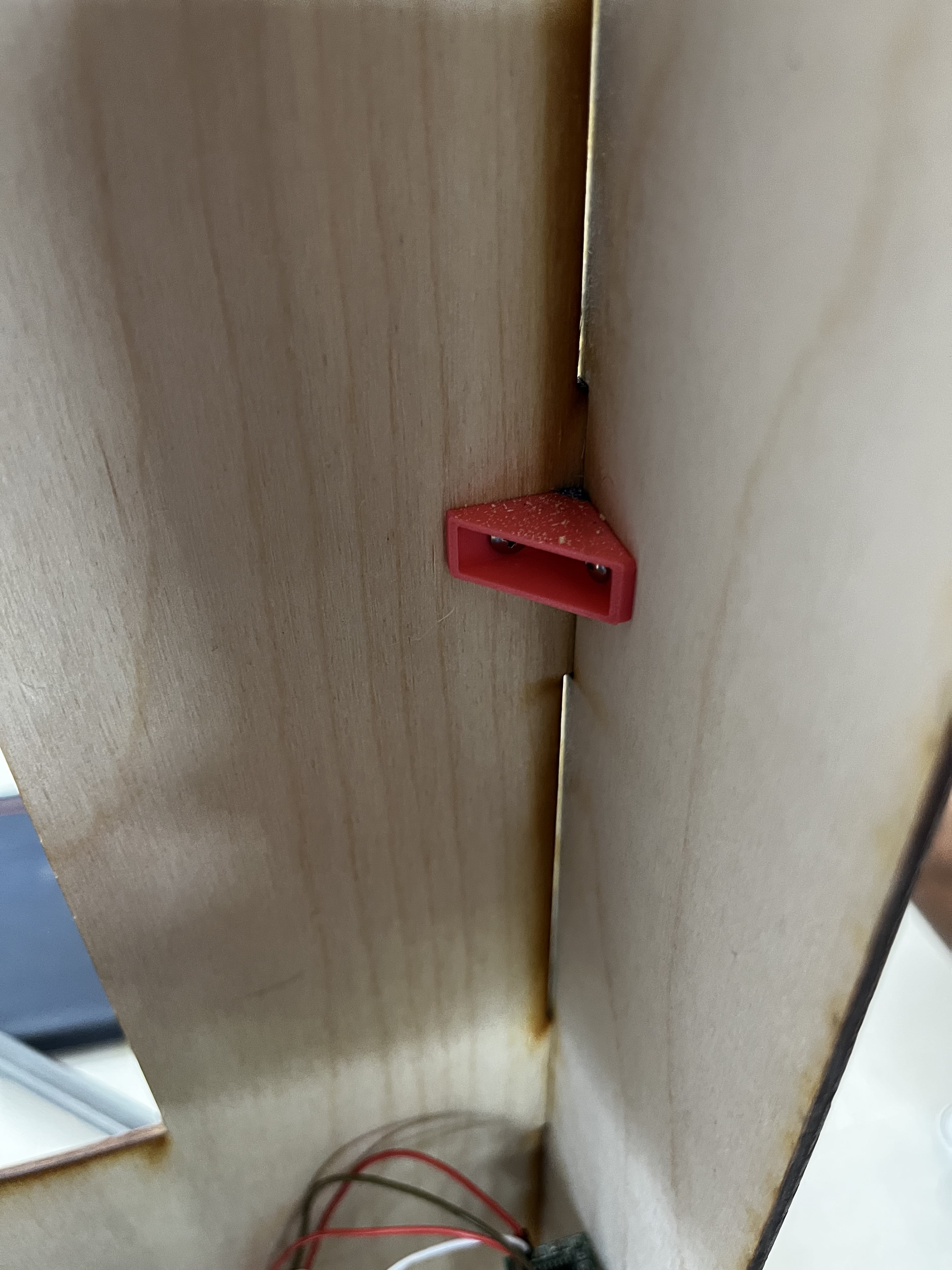

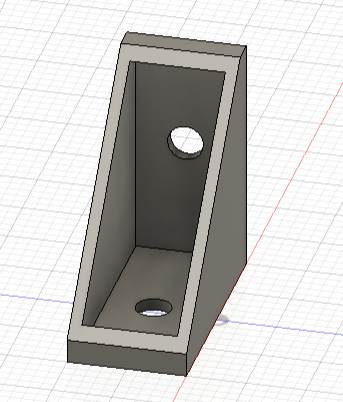

I also made brackets for securing the walls of the box

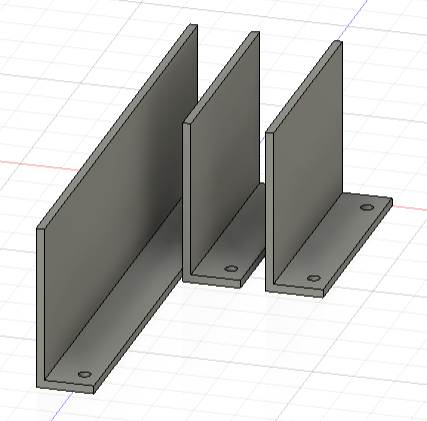

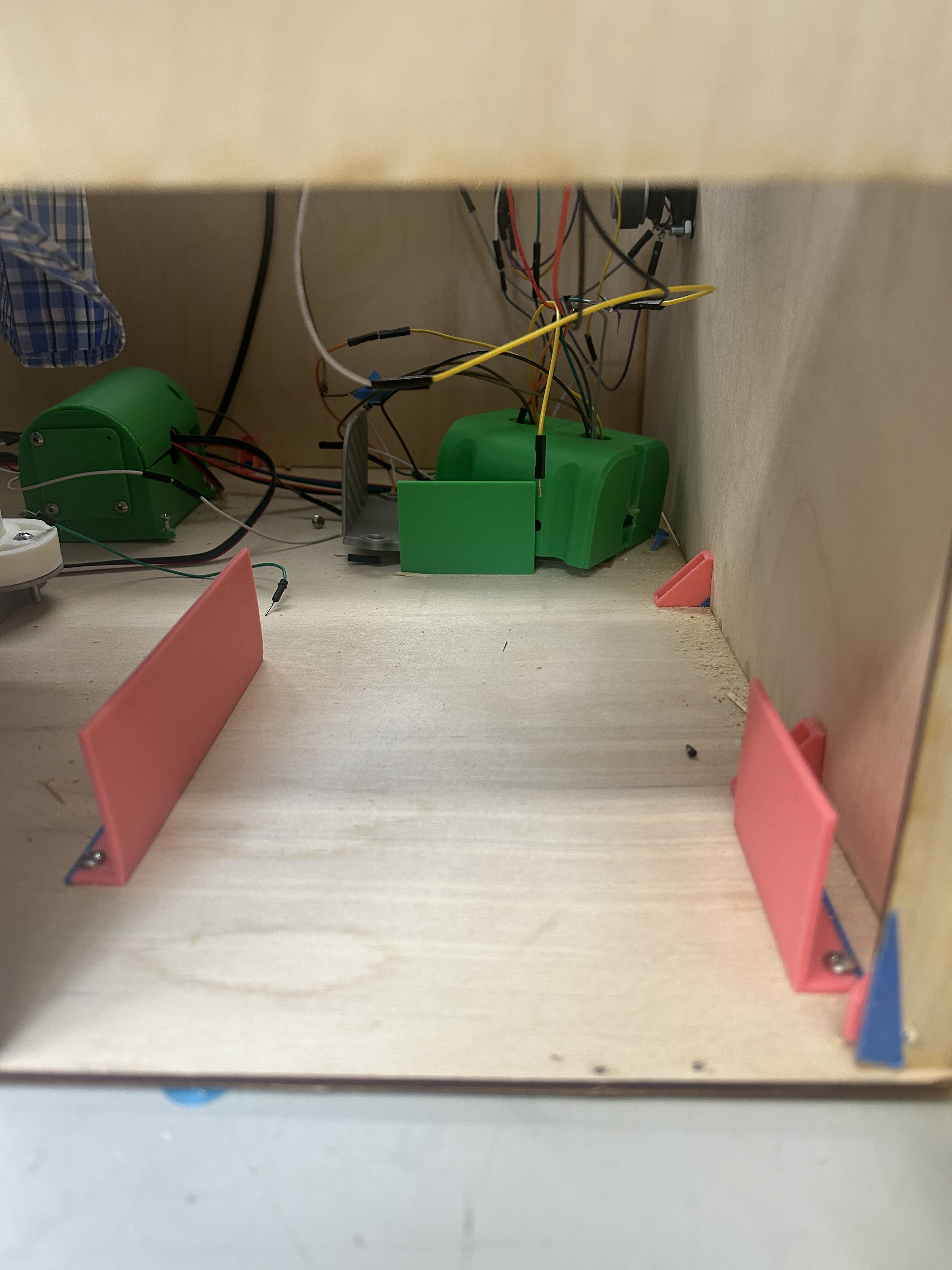

For the parts bin I made guide rails to keep the box in place.

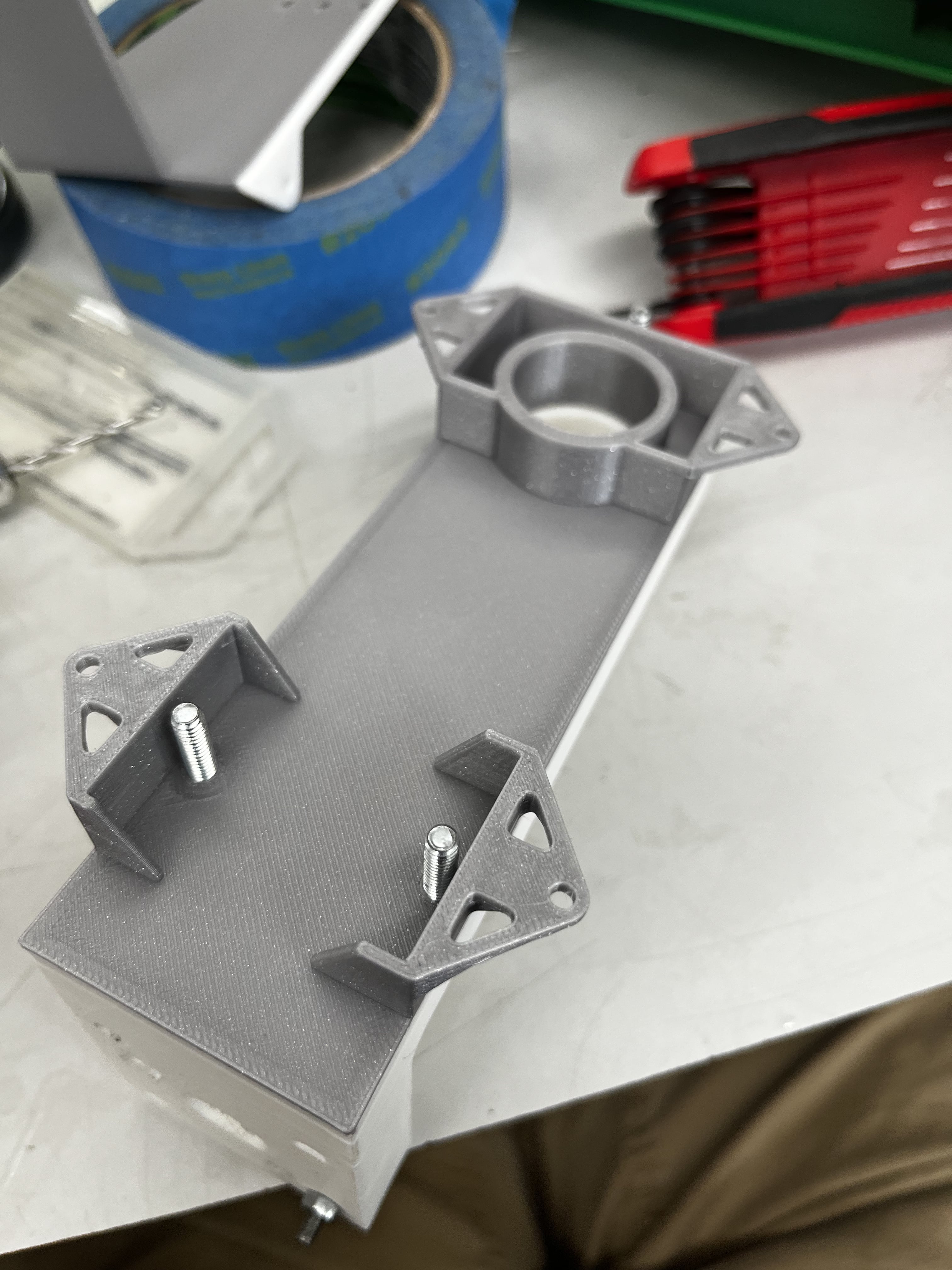

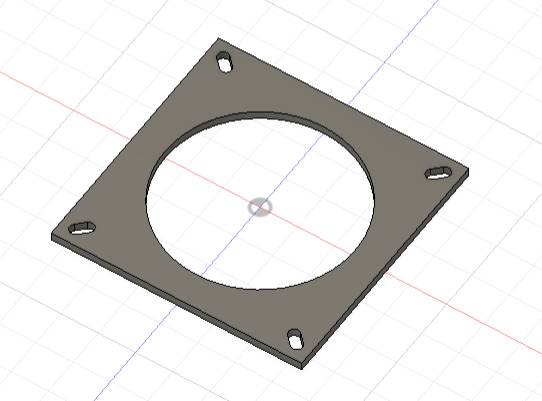

I also made a mount for the speaker, but this ended up not working as well as mounting the speaker straight to the box.

Websites

The website has recently gone down, so I’ve linked the youtube channel instead.
