11. Output devices¶
My Output Device¶
My output for this week is 16 LEDs in a 4x4 Matrix grid.
KiCAD¶

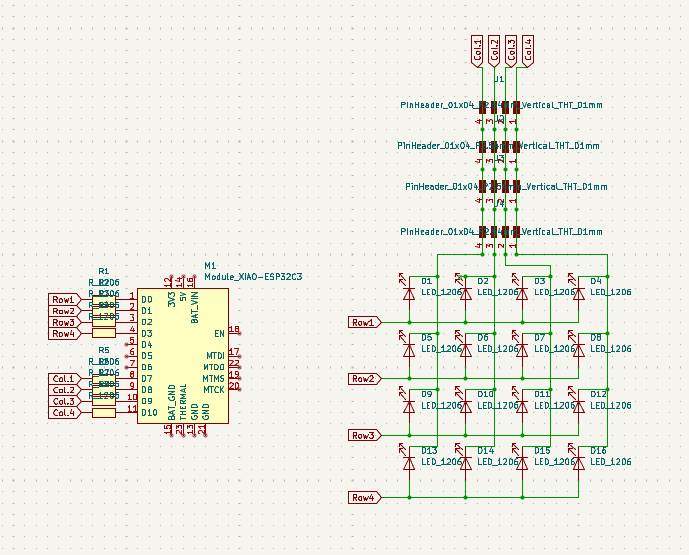

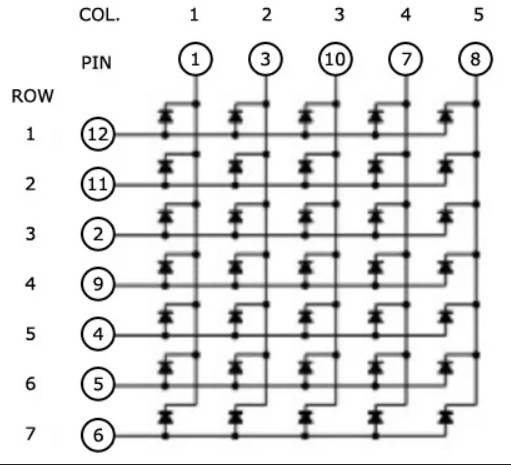

I made my board in KiCad. I started by looking up a picture of an LED matrix schematic online and I based my schematic off of the picture. I then added the footprints for the resistors, LEDs, and Xiao Esp32-C3. I also added through hole pin headers because my board would need to be double sided.

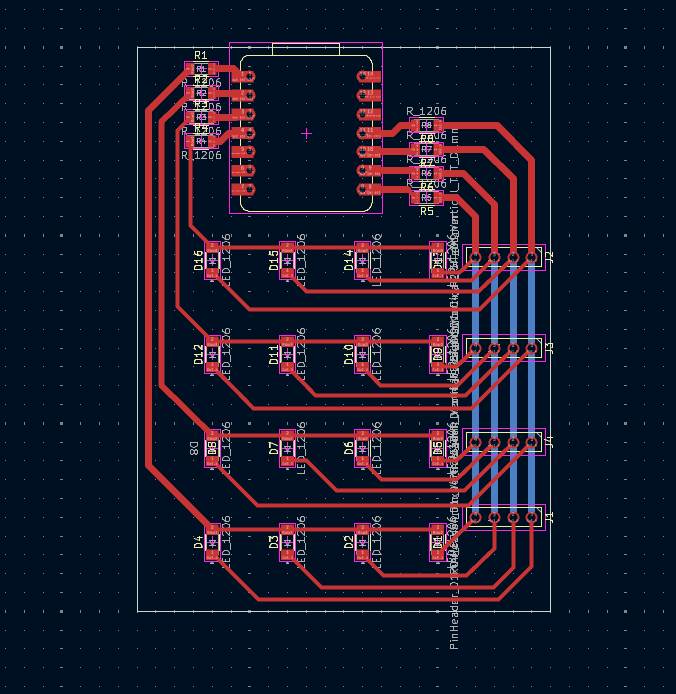

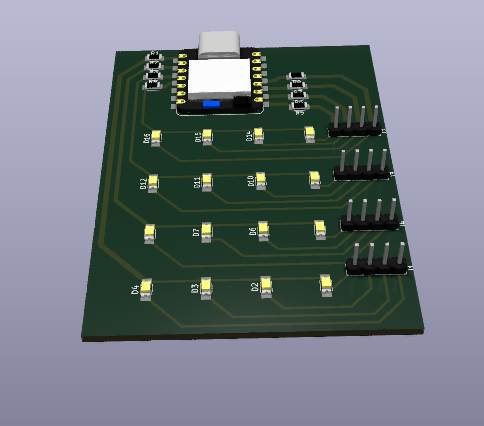

I then loaded up the PCB editor and routed my Traces
Soldering¶

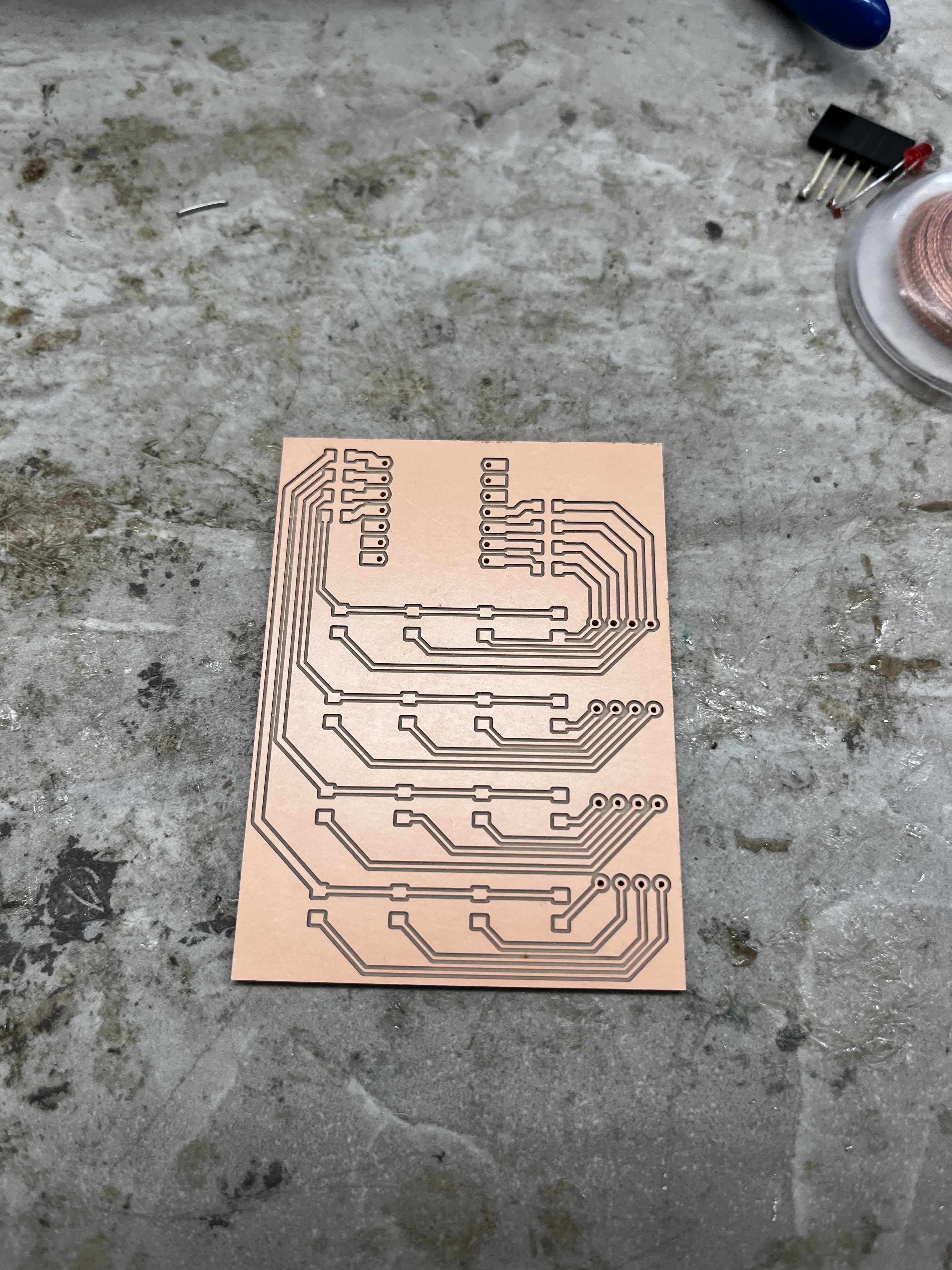

Soldering was just like normal, I used copper rivets to connect both sides of my board and soldered them in place.

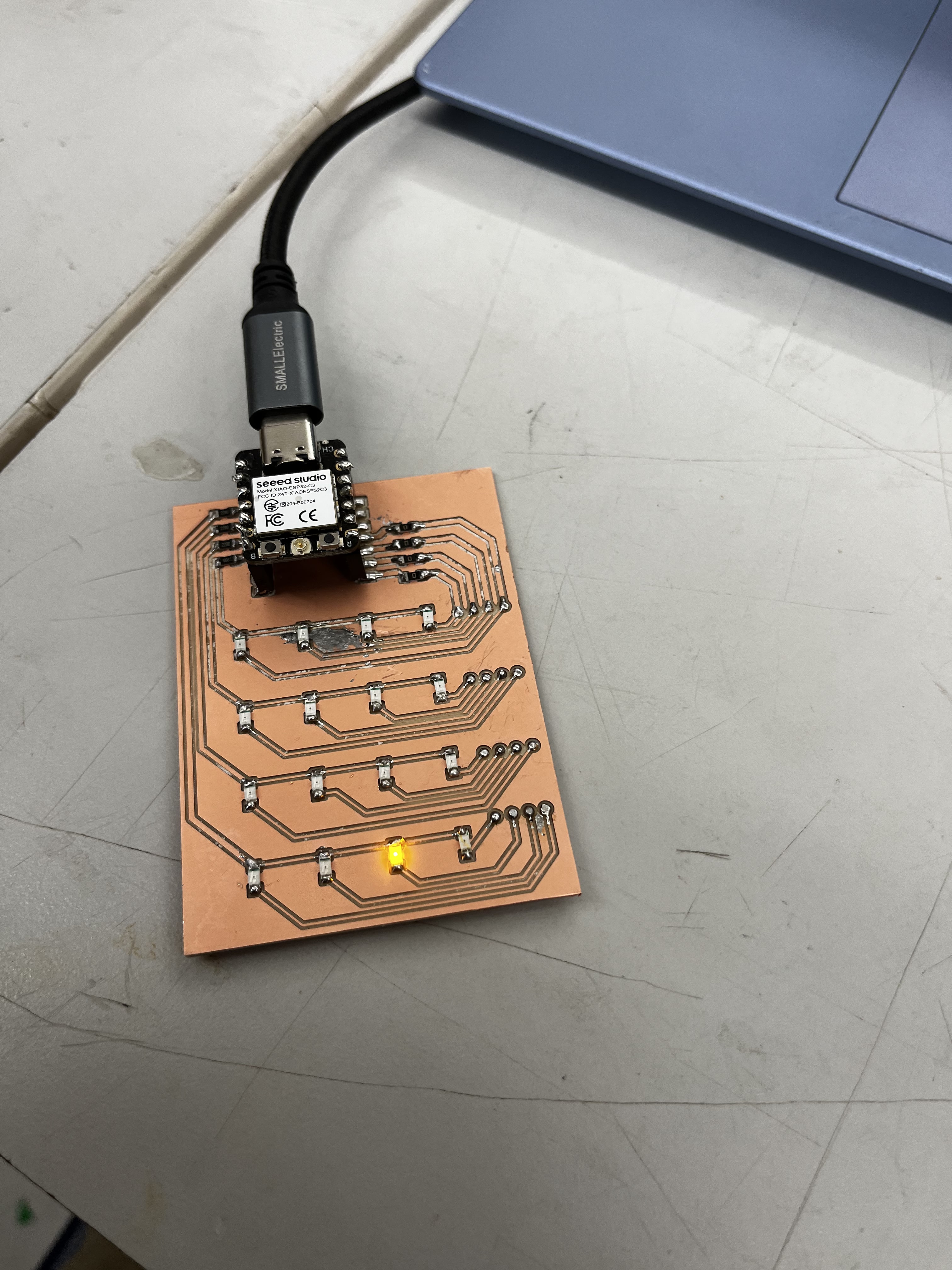

Then I soldered all of my 1206 SMD components like the resistors and LEDs before I soldered the female pin header to connect the board. Whilst soldering the resistors I realised that I didn’t need the have 220ohm resistors for both the rows and columns of my board. Instead I put the 220ohm resistors on the rows and I bridges the gap on the column side with a 0 ohm resistor.
Coding¶
I asked ChatGPT to make the code for me since it was a pretty simple code.
// Define pins for rows and columns
const int rows[4] = {D1, D2, D3, D4}; // Row pins (cathode)
const int cols[4] = {D7, D8, D9, D10}; // Column pins (anode)
void setup() {
// Set all row and column pins as OUTPUT
for (int i = 0; i < 4; i++) {
pinMode(rows[i], OUTPUT);
pinMode(cols[i], OUTPUT);
digitalWrite(rows[i], HIGH); // Rows HIGH = OFF (since cathode)
digitalWrite(cols[i], LOW); // Columns LOW = OFF (since anode)
}
}
void loop() {
// Loop through all 16 LEDs
for (int r = 0; r < 4; r++) {
for (int c = 0; c < 4; c++) {
lightLED(r, c);
delay(200);
clearMatrix();
}
}
}
// Function to light a single LED at (row, col)
void lightLED(int row, int col) {
digitalWrite(cols[col], HIGH); // Anode side ON
digitalWrite(rows[row], LOW); // Cathode side ON
}
// Turn off all LEDs
void clearMatrix() {
for (int i = 0; i < 4; i++) {
digitalWrite(cols[i], LOW); // Anode side OFF
digitalWrite(rows[i], HIGH); // Cathode side OFF
}
}
