Structural Design

First of all before making the model of dog using the cardboard, I started making the prototype of chocolate dispenser and for that I used cardboard and tried testing it with some small items which would resemble chocolate in reality. I tried to add few of those items inside my chocolate dispenser chamber, connected with servo motor and ran the program to see how it would dispense the chocolate but I came to know that I need to increase the gap next time so that it can drag the chocolate with ease.

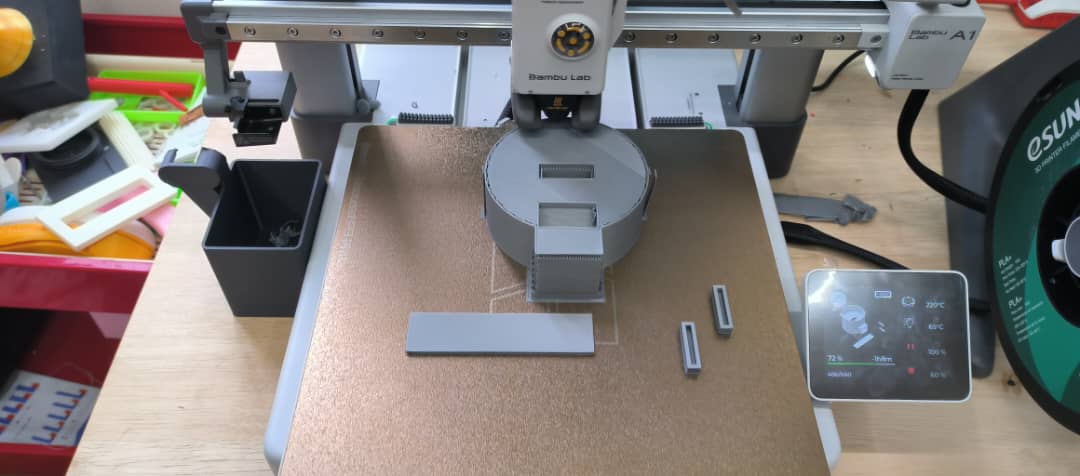

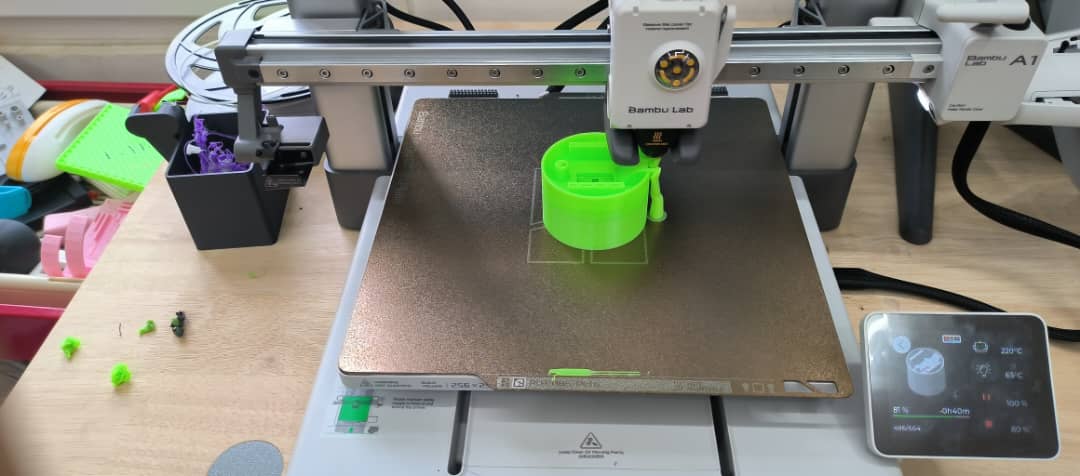

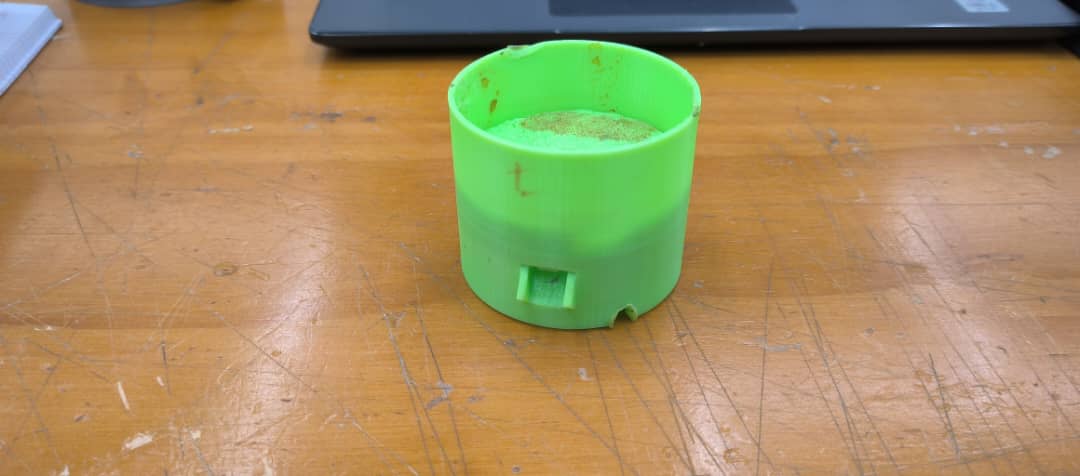

Next I had designed the chocolate dispenser using fusion 360 and printed it in bambu printer but it’s size was so small so I was not able to test with real chocolate.

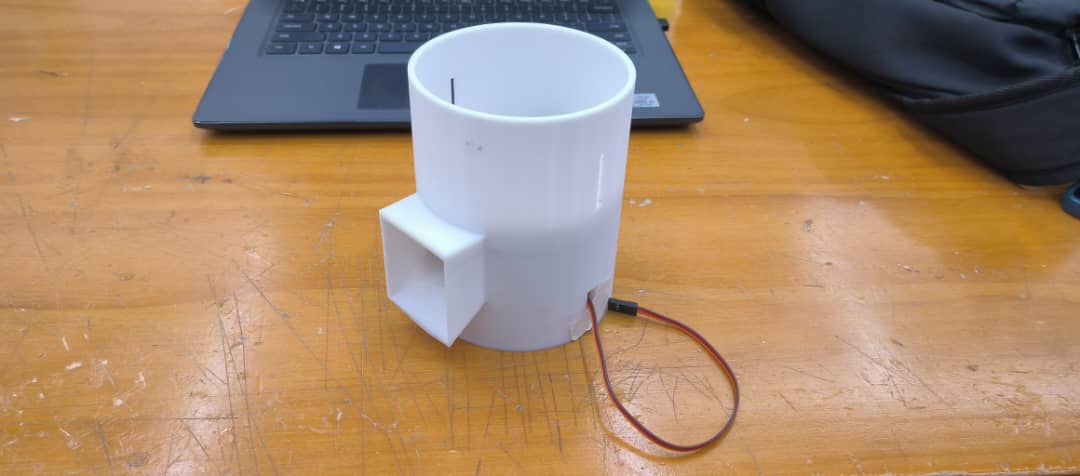

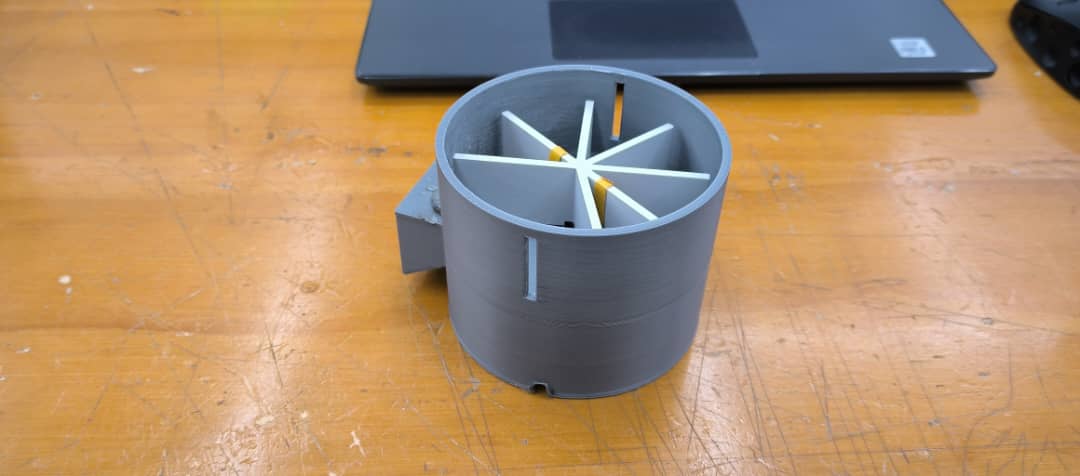

After that I just increased the size of my chocolate dispenser which I had created using fusion 360

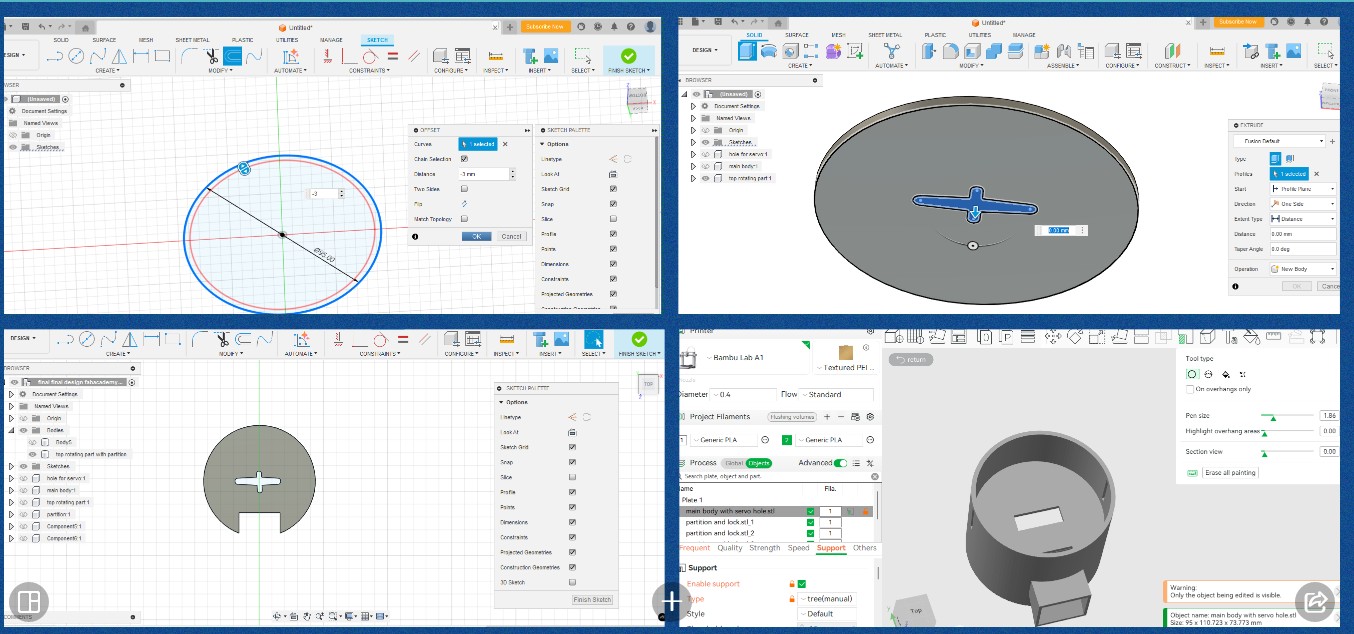

The images below show the steps of creating the design for the chocolate dispenser
