Project Title.

Validation study of 3D printing prototypes of the temporal bone for surgical simulation

Prototyp made in Alemania

Project Summary

Learning the art of surgery, and when it comes to ear surgery, requires rigorous training. The temporal bones of cadavers are ideal for this purpose, although currently the acquisition of these is difficult. On the other hand, technological advances, specifically in regards to 3D printing offer new opportunities. Achieving excellence in print quality and exact resemblance to real bone apparently requires expensive equipment. Based on a study carried out by medical students in 2019 where they carried out a review to evaluate the feasibility, in our environment, of access to 3D printing of the temporal bone, it was possible to know about the existence of several national specialized centers that could offer the necessary technology to achieve interesting results (1). Based on the above, we intend with this work to evaluate the quality of the 3D impression of the temporal bones of our patients, using different technologies available in our environment.

Research team

Area and specialty of the proposal

Medicine area in the specialty of otorhinolaryngology and based on digital manufacturing

Project objectives

Major:

Evaluate the quality of 3D printing of the temporal bones of our patients, using different technologies available in our environment.

Secondaries:

• Update existing centers with 3D printing technology in our environment

• Compare the technology, material used and cost with the quality of 3D printing

• Define the path to follow in order to access excellent technology

Expected results

Gain a scale-based appreciation of the appearance, feel of consistency, and anatomical landmarks of different temporal bone 3D impression prototypes.

Background and Justification

3D printing of the temporal bone (HT) has been anatomically validated when compared to tomographic images and has additionally improved drilling accuracy and spatial representation during mastoidectomy simulation. (2.5)

There are several published works that compared the different types of materials used and different models of machines that evaluate the similarity with real bone and describe interesting results that encourage the use of this technology (2,3), other authors try to find a low-cost technology. cost and that presents valid results for use in surgical training (4)

Due to the lack of national data regarding 3D printing of the temporal bone and the need for a training method to develop surgical skills in otological surgery, we consider it important to carry out this study. Therefore, we propose to carry out an experimental work with 3D printed pieces of temporal bones using different types of technology and materials existing in our environment with the aim of determining which of the technologies and/or materials are closest to real bone.

Materials and Methods

Prospective study

A total of five participants included three third-year residents, a second-year Ear Fellow, and an otologist experienced in otologic surgery. Residents will be assisted by a more experienced surgeon throughout the drilling process.

Excluded participants: those with no experience in ear drilling

All participants will have a real temporal bone to closely experience possible differences with the prototypes and a number to be defined, probably 5 samples based on experiences from previous jobs (2), of prototypes manufactured with different printing instruments and different materials.

Evaluation of prototypes

All participants will have a list of the variables that they must take into account during milling Variable list adapted from a previous work (2):

• 1- Appearance of the prototype: 0 - 10
• 2- Milling sensation: 0 – 10
• 3- Preservation of anatomy: 0 -10

Prototype Appearance:

Please rate the relative appearance of the prototype compared to real bone, on a scale of 0-10 where 0 being not at all representative and 10 being perfectly representative

Milling feel:

Please rate the milling feel of the prototype compared to real bone, on a scale of 0-10 where 0 being not at all representative and 10 being perfectly representative

Anatomy Preservation:

Subitems to evaluate:
mastoid cells
sigmoid sinus
sinusoidal angle
Joint
Horizontal semicircular canal
Facial nerve
ossicular chain

Please rate on a scale of 0-10 where 0 being not at all representative and 10 being perfectly representative

The participants will have cutting and diamond burs of various sizes and a “Storz” brand motor used in the dissection laboratory.

Based on the investigation of the existing national 3D printing centers in our environment, the 3D printing machines will be defined, as well as the different types of materials.

To calculate the results, an average (mean) of the scores obtained will be obtained.

Prototype development:

The DICOMs that we will use will correspond to our patients and must be thin sections of at least 0.5 mm.

For the 3D reconstruction we will use the 3D_slicer software because it is a free access program and of very good quality. We will also rely on 3D_builder with which the HT cuts will be made to print each portion separately and then assemble all the portions.

This will allow us to remove possible internal supports that do not belong to the original structure (5).

STL 3D printing

Once the model to be printed is ready, it will be printed in the different selected equipment with the respective material.

Relevance of the proposal

It is a project that aims to explore new horizons with regard to the development of skills in the technical aspect, betting on technology and innovation.

Due to the lack of national data regarding 3D printing of the temporal bone and the need for a training method to develop surgical skills in otological surgery, we consider it important to carry out this study.

Plan of work

Duration time in months: 6 months Start of the project: July / 2022 Project Completion: December /2022

Work scheme

budget

Communication strategy

Once we have obtained results, these will be disseminated through a publication in an indexed journal to achieve greater reach.

Bibliographic references

1. Gaona Rivas EP; Rojas Galeano WO; Romero Riveros MM; Ruiz Cano VR; Samaniego Rojas GI; Samudio Duarte TA; Roig Ocampos Jr. Reconstruction of the temporal bone by 3D printing as a learning method. Monograph. Chair of Otorhinolaryngology UNA. 2019
2. Max Haffner, BS, Austin Quinn, BA; Tsung-yen Hsieh, MD, E Bradley Strong, MD; Toby Steele, M.D. Optimization of 3D prompt material for the recreation of patient-specific temporal bone model. Annals of Otology, Rhinology & laryngology 127(5), 338-342, 2018.
3. Horcacitas-Pous R; Gonzalez A, The importance of creating a model of the temporal bone in a 3D printer for the milling laboratory. Review of recreated cases. An Orl Mex 65 (4): 205-211, 2020;
4. Mowry SE; Jammal H; Myer Ch; Solar AC; Weinberger P. A novel temporal bone simulation model using 3D printing techniques. Otology & Neurotology 36: 1562-1565, 2015
5. Hochman JB, Kraut J, Kazmerik K, Unger Bertram J. Generation of a 3D printed temporal bone model with internal fidelity and validation of the mechanical construct. Otolaryngology Head and Neck Surg 150: 448-54, 2014.

Experience outside of proyect

This prototype was made with Creality Printer, this work with resina and ultraviolet curing

First experience whit incolor resin

Set of photos but of the entire temporal bone

Second experience

I am experimenting with the [3D Slicer] (https://www.youtube.com/watch?v=Dn3ANveKQXY) software and edited the temporal bone of a patient who has already undergone surgery with a diagnosis of carcinoma of the external ear canal

Other tutorial

It was a very laborious surgery and consisted of removing the tympanal bone avoiding noble structures such as the facial nerve, large vessels (gulf of the jugular) and above the meninges.

When doing the 3D impression I could see the close relationship with the carotid artery.

We just had difficulty removing the piece despite the fact that it seemed to be already loose and we had to refine a part of the tympanal bone on its anterior face that extended towards the bottom and in this way with a little skill we got it.

Precisely that bone remnant that remained had a very close relationship with the internal carotid artery.

Resin Models

Light induces the polymerization of multifunctional monomers; it is what we know as ‘UV light curing’ and it is recognized as the most effective system to transform very quickly and at room temperature a solvent-free liquid resin into a highly resistant polymeric product.

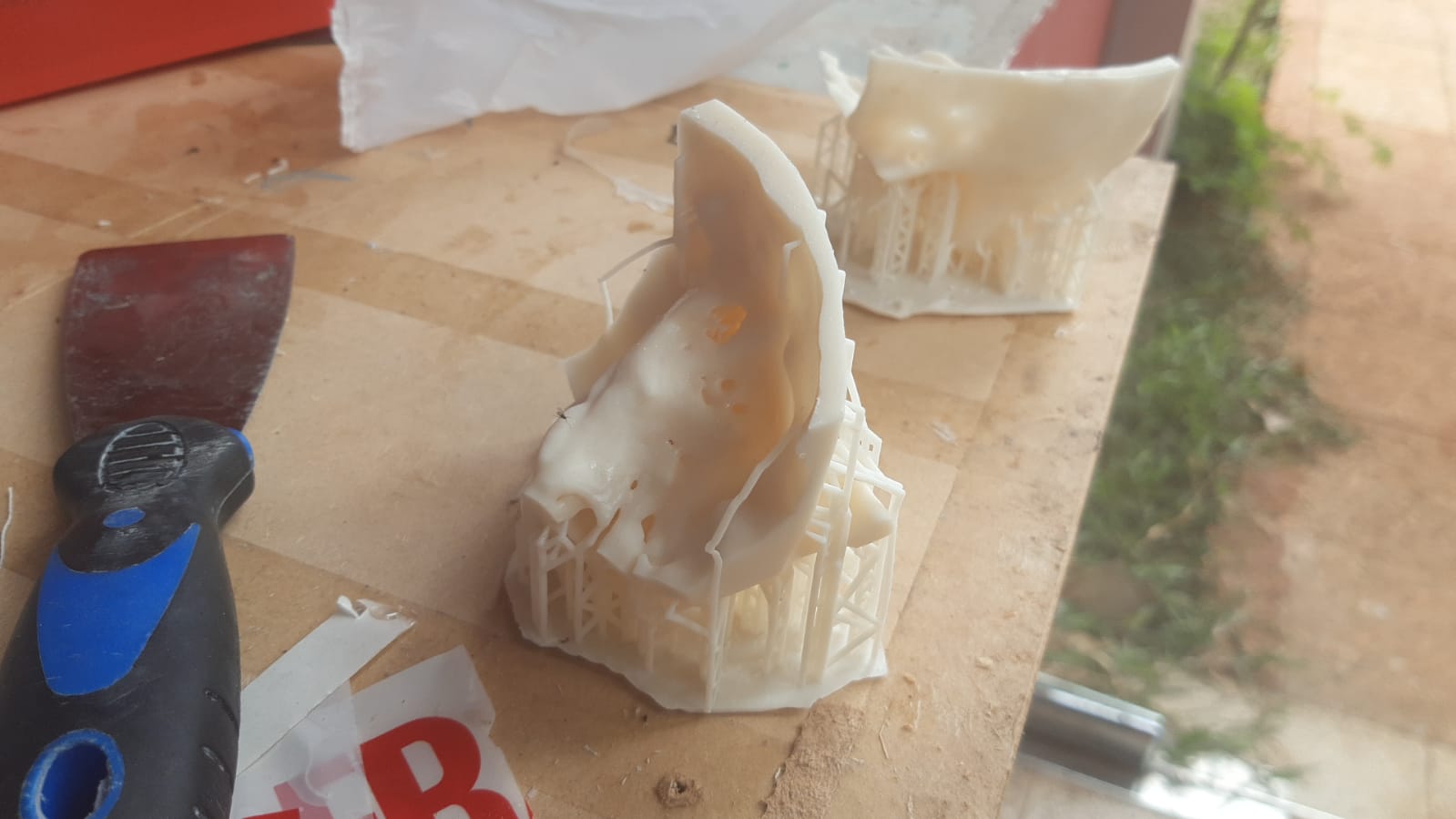

This is the patient’s temporal bone still with the impression supports

This is another temporal bone, the same as the first photos (first experience) but this time I printed it in its entirety without dividing it like the previous one, also still with the supports

Set of photos of temporal bone 3D printing of the Second Experience

Photo of the Second Experience Bone showing the relationships of the temporal bone with the great vessels. An anterior and inferior view of the same

---
