Week 10


Input Devices - April, 8th 2015


New Board

Here we are again surrounded by electronics. This time the assignment was to design the board with input devices.
I chose mine trying to be close to what I will need in my final project (Which I changed, by the way).
As an input device I chose synchronous detection, and used Neil's board as a reference.


image description

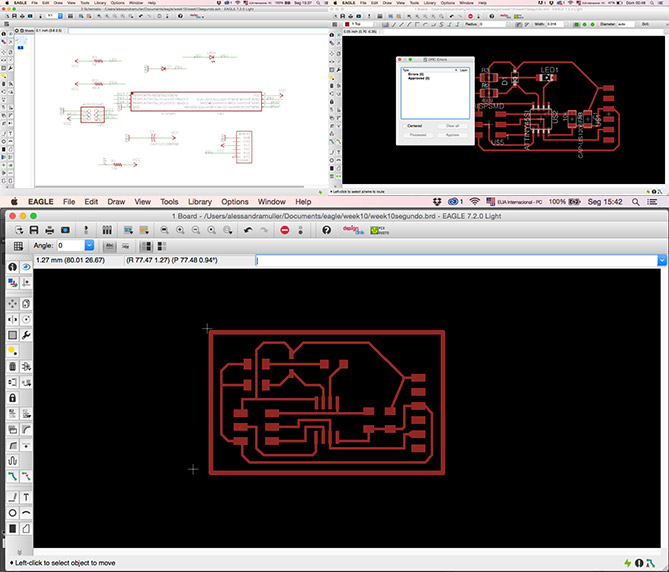

Schematics and Board at Eagle

image description

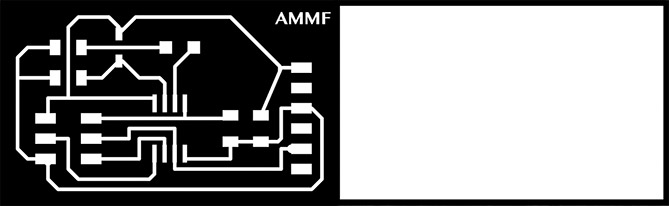

Traces and Outline at Photoshop

3 Steps

image description

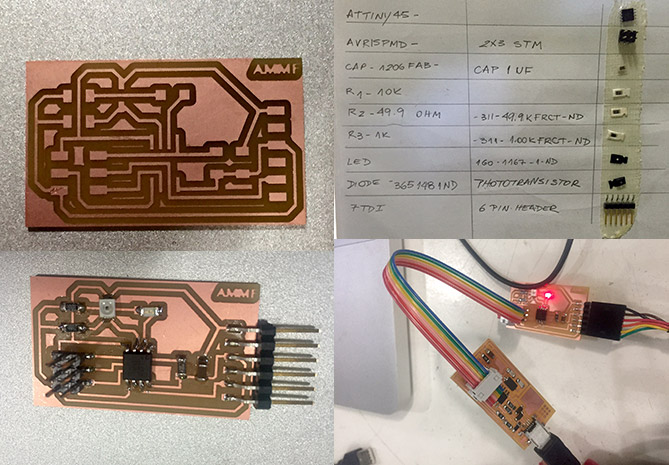

Milled, Welded and Working

Starting The Adventure

To perform the measurements I used Python. On Mac it is already installed, but I have had a lot of difficulties to make it work effectively.
First I programmed the board at Terminal. Everything was fine and the LED was lit up, but using Sudo previously...

At Terminal

image description
Avrdude Done. Thank You!

Becoming a Nightmare

In the Terminal, after saving on my desktop the three required files in a folder that I created (hello.reflect.45.c , hello.reflect.45.make , hello.reflect.45.py) I had to experience many obstacles trying to find out what was going on, and why python didn't want to work for me!!!

First Errors

image description

Python on Mac

After to rechecking a thousand and one possibilities, finally with a lot of help and patience of my instructor Ferdi, we could figure it out how to make it works:

ruby -e "$(curl -fsSL https://raw.githubusercontent.com/Homebrew/install/master/install)"
brew install python
pip3 install pyserial - You should install this (in my case)

from Tkinter import *
from tkinter import * - You should change this at the file

print (command line: hello.light.45.py serial_port)
#print (command line: hello.light.45.py serial_port)

The Right Code

image description
image description
