Al-Jazari legacy
According to wikipedia:
The Kurdish medieval scientist Al-Jazari built a programmable automata
in 1206 AD. Probably, first programmable mechanism in the world.
Al-Jazari (1136-1206) was a polymath: a scholar, inventor,
mechanical engineer, craftsman, artist, and mathematician from Jazirat
ibn Umar (current Cizre, Turkey), who lived during the Islamic Golden Age
(Middle Ages).
He is best known for writing theThe Book of Knowledge of Ingenious
Mechanical Devices in 1206, where he described 100 mechanical devices,
some 80 of which are trick vessels of various kinds, along with instructions
on how to construct them.
Download and install Arduino, Install attiny avr, bootload microcontroller
and embed a program.
How to program a attiny44 with Arduino software!
Content (linked):
Assignment:
TUTORIAL EMBEDDED PROGRAMMING with Arduino
Mountain View Embedded Programming
Compile with make file (Ubuntu)
Material and Software:
FabISP
ISP cable
FTDI cable (it depens on your ISP)
Windows 8
Arduino IDE
AVR ATtiny for Arduino
Virtual Serial Port
There are many ways to embed instructions into a microcontroller. The
common and easy way is to use an IDE that will help the programming with
examples, libraries, debugger, and so on. For this assignment I have use
Arduino IDE.
According to Arduino web page (www.arduino.cc):
Arduino is an open-source electronics platform based on easy-to-use hardware
and software. It's intended for anyone making interactive projects.

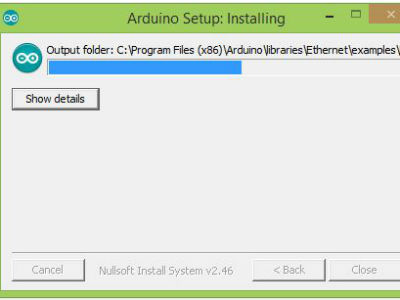

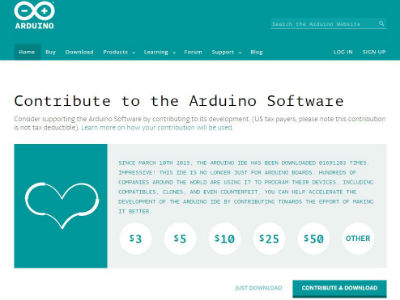

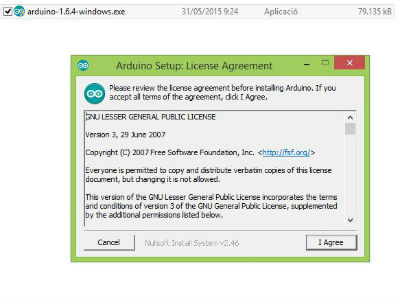

Download from www.arduino.cc the software, cotribute if you wish, if not,
you can download for free. At set up window click I Agree. Acept after
installing. Open software looking for it on the "search window".
IDE (wikipedia):
An interactive development environment is a software application that
provides comprehensive facilities to computer programmers for software
development.
An IDE normally consists of a source code editor, build automation
tools and a debugger.
This will show to Arduino what microcontroller you want to set (bootload)
and program. Each microcontroller needs his own settings. For this assignment,
we are going to program an ATtiny44. Here it is the ATtiny board setting
for Arduino:
Download AVR ATtiny for Arduino(attiny-ide-1.6.x.zip)
- In the Documents/Arduino folder, create a subfolder called: "hardware"
- Copy the attiny-ide-1.6.x.zip into folder "hardware" and unzip
- Restart Arduino IDE.
AVR (www.robotplatfom.com):
AVR microcontrollers can be termed as a mini computer with all peripherals
on the chip. A typical AVR microcontroller can contain peripherals like
RAM, EEPROM, Flash memory, Input-Output (I/O) pins, Analog to Digital converters,
PWM channels, Timers etc. It also has a CPU for processing, but not as
fast and complex as the one within a computer.
Atmel manufactures 3 variations of 8-bit microcontrollers:
TinyAVR
MegaAVR
XmegaAVR

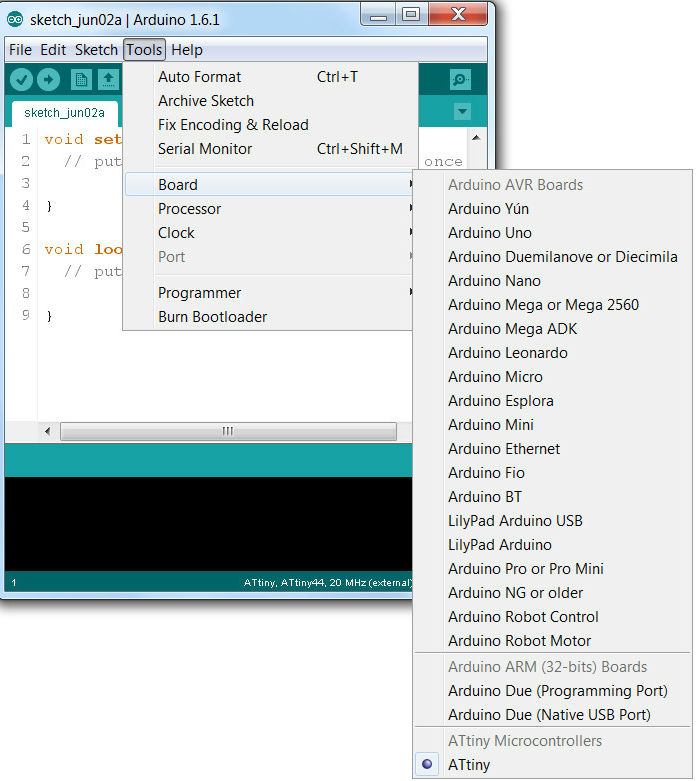

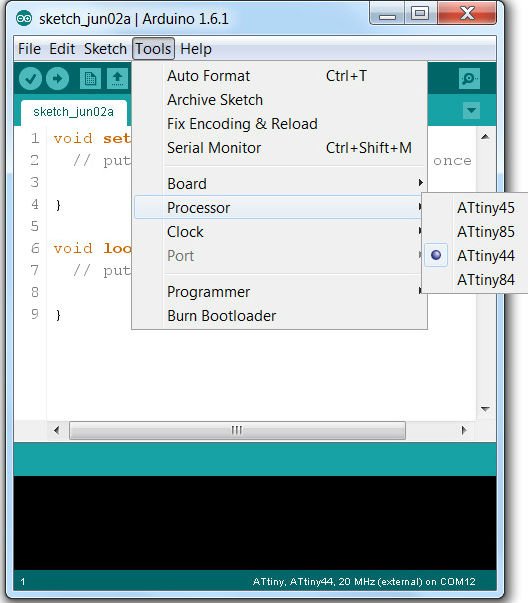

ATtiny should appear in Tools/Board
In Tools/Processor chose ATtiny44
For this PCB, we have installed an external 20Mhz clock.

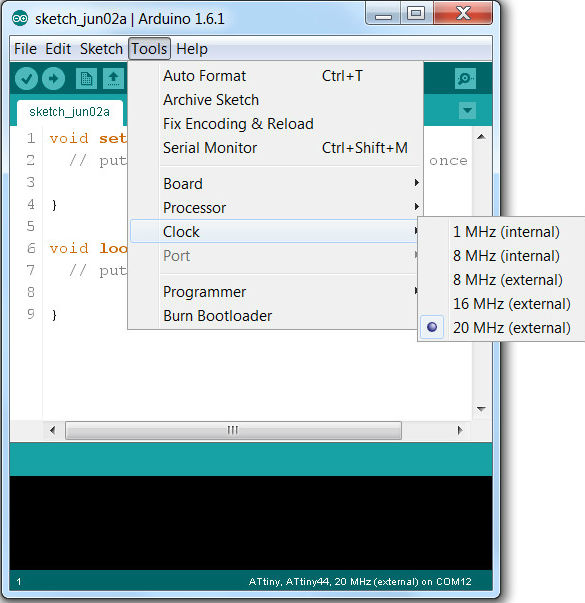

In Tools/Clock choose 20MHz
We are going to use the ISP (week 4 assignment), that is the same than
the USBtinyISP.

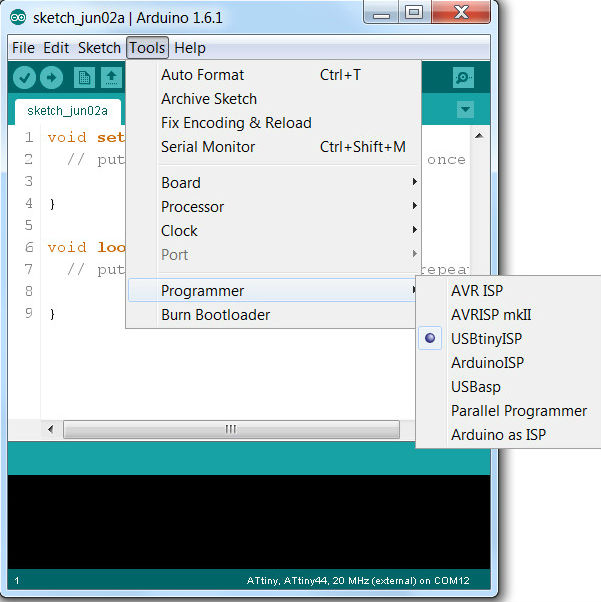

In Tools/Programmer choose USBtinyISP
The communications it will be via serial port (FTDI). Nowadays, any laptop
have serial port, so it is needed to install virtual serial port.
FromFuture Technology Devices International web page:

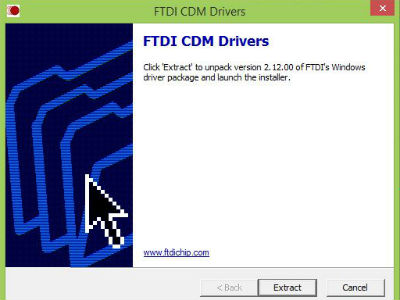

Download virtual serial port for windows

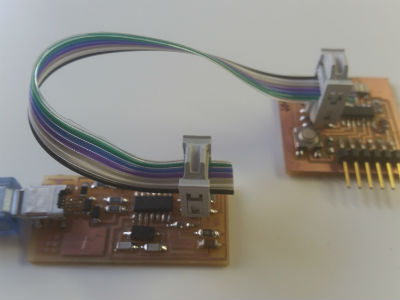

Connect the PC to FabISP via USB and FabISP to PCB via ICSP header (this
ISP provides energy)
Image from wikipedia. Creating user: Osiixy
ICSP HEADER
(in circuit serial programming)
After connect everything, and before any script embedded, burn the bootloader. Path: Tools/Burn Bootloader
Bootloader:
According to www.cs.tau.ac.il (Helicon technologies Computerized measurement
systems):
Bootloader is a piece of code that runs before any operating system
is running. Is used to boot any other software.
According to wikipedia:
Is the initialization of a computerized system. Is a computer program
that loads an operating system or some other system software for the computer
after completion of the power-on self-tests; it is the loader for the operating
system itself
I start from example code "BLINK", and made some changes:
Set two diferents blink frequency (50ms and 1s)
If the button is pressed, blink with frequency 50ms
If the button is not pressed, blink with frequency 1s.
Download the code here (.ino)
Microcontroller just understand hexadecimal file, so this is our final
goal: .hex file
Many ways to get the .hex file and embed it. In this tutorial we
are going to see two: Arduino IDE and makefile. I dismiss Atmel Studio
because FabISP is not recognized.
www.arduino.cc
Support for C and C++ progrmming languages. Have microcontroller libraries are for easy programming.
Steps:
1.- Open Arduino IDE
2.- Write code in C. There are some libraries available to use.
3.- Press button: Compile
4.- Press button: Upload
After that, you get a single file .ino
https://gcc.gnu.org
The GNU Compiler Collection includes front ends for C, C++, Objective-C, Fortran, Java, Ada, and Go
Real steps:
1.- Create script in C. (You should need a text editor like ultraedit,
sublime or similar).
2.- GCC compile C code (ex.: WINAVR for windows).
3.- AVRDUDE for download and upload code to chip memories of Atmels's
AVR microcontrolers.
Short cut steps:
1.- Create sript in C.
2.- make file
After that, you get 4 files:
original.c
filetoGCCandAVRDUDE.make
file.hex
file.out
Make file will compile in hexadecimal a script in C and send it to a microcontroller. Here it is the hello.ftdi.44.echo.c script from Neil. Download here.
And here it is the make file. Download here.

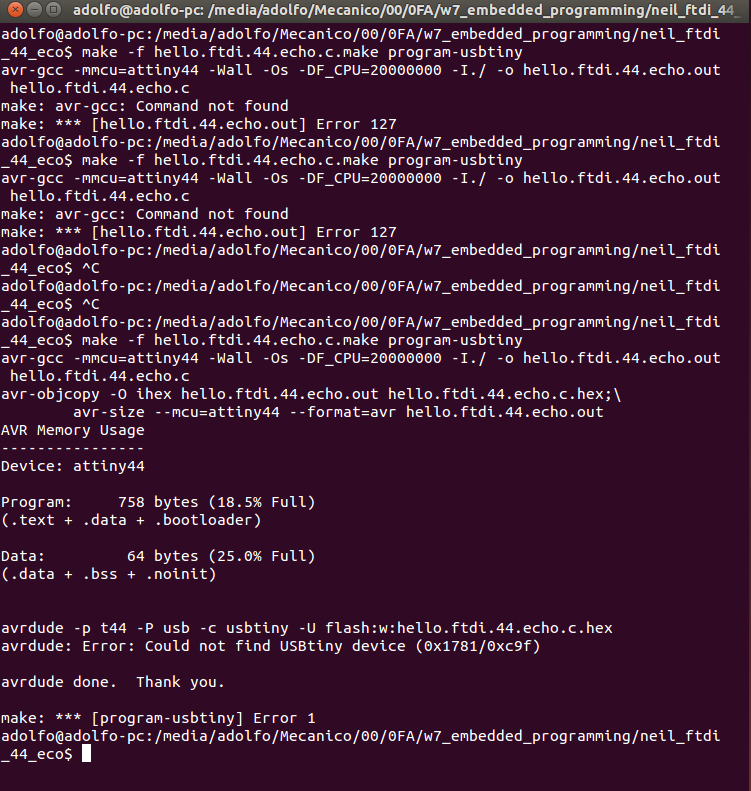

This screen capture was done just for make the file.hex and file.out. It wasn't connected usbtiny at that moment.
Is necessary to install the packages required manually. Go to Package
Manager and install the following:
gcc-avr
binutils-avr
gdb-avr
avr-libc
avrdude
After install everything, create a folder with file.c and file.make.
Open it in a terminal
tape:
make -f hello.ftdi.44.echo.c.make program-usbtiny
It will take a while and will make file.hex, file.out and it will
embed the script.
Download hello.ftdi.44.echo.hex
Download hello.ftdi.44.echo.out
