Electronics Production

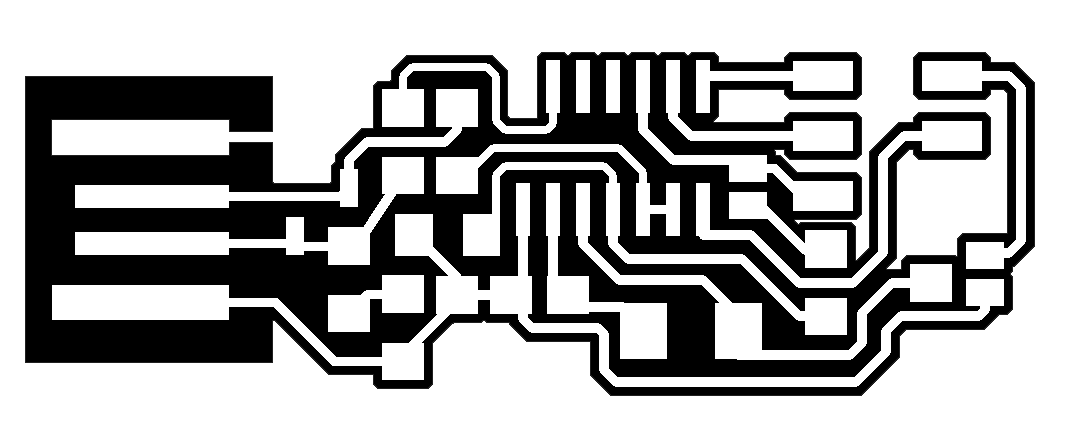

#FabIspKey

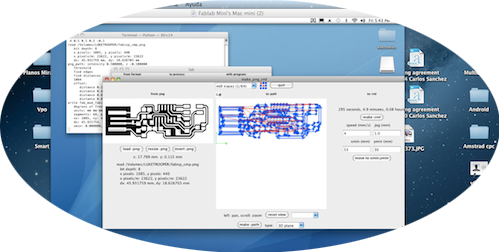

#Prepare the 'Roland Modela' parameters:

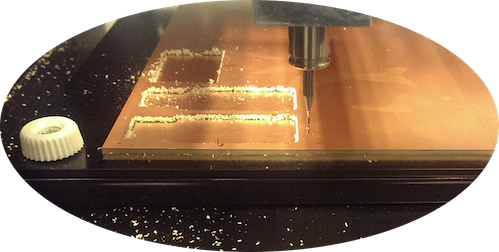

#Calibrating the 'Roland Modela' to star cut

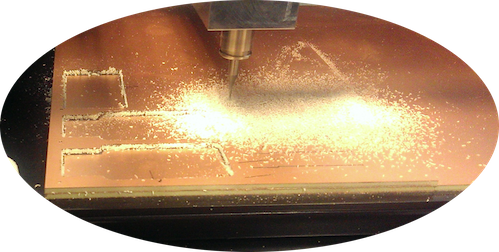

#processing work

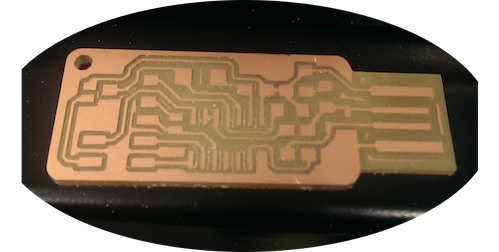

#Outcome

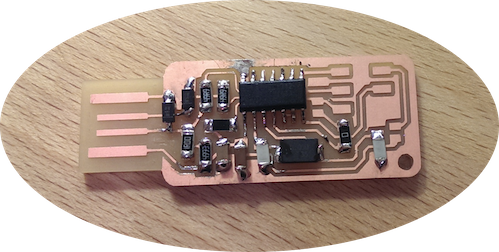

#Solder the components
#checking connections

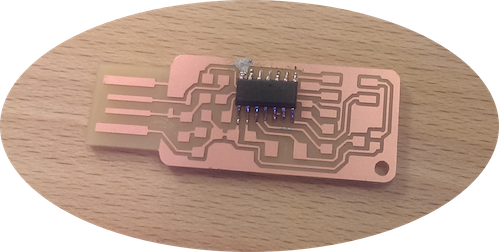

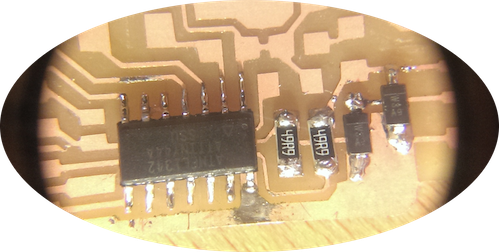

#Continue solder components
#Components List:
| Name | Component | Value | Quantity |
| C1 | CAPACITOR SMD 1206 | 8pf | 1 |
| C2 | CAPACITOR SMD 1206 | 8pf | 1 |
| C3 | CAPACITOR SMD 1206 | 0.1uf | 1 |
| C4 | CAPACITOR SMD 1206 | 1uf | 1 |
| D1 | ZENER SMD SOD 123 | 3.3 | 1 |
| D2 | ZENER | 3.3 | 1 |
| R1 | RESISTOR SMD 1206 | 49.9 | 1 |
| R2 | RESISTOR SMD 1206 | 49.9 | 1 |
| R3 | RESISTOR SMD 1206 | 1K | 1 |
| R4 | RESISTOR SMD 1206 | 1OK | 1 |
| R5 | RESISTOR SMD 1206 | 0 | 1 |
| R6 | RESISTOR SMD 1206 | 499 | 1 |
| J1 | JUMPER | ? | 2 |
| J2 | JUMPER | ? | 1 |
| X2 | MALE CONECTOR SMD | 2 X 3 PIN - 2.54 | 1 |
| IC1 | CHIP SMD 14SOIC | ATTINY 44 - SSU | 1 |
| XTAL 1 | CRYSTAL SMD | 20MHz | 1 |

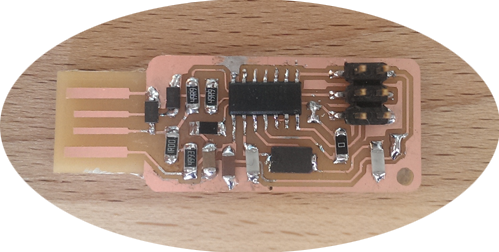

#USB Finished

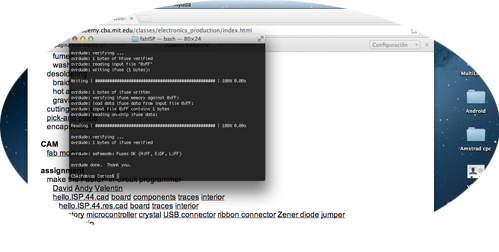

PROGRAMING USB

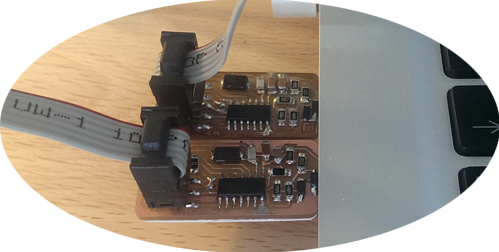

#Connect the USB whith USB allready programed
Download 'CrossPack AVR' and 'Firmware' then open Terminal
In the terminal type:
